Features

When it comes to accuracy and precision, the 1255 pull-type, inter-row banding or broadcast applicator is the go-to solution. An ideal machine for fertilizer, seeds, herbicide and insecticide application, the 1255 offers an 18 cubic feet stainless steel hopper that is built for durability, with broadcast or inter-row booms for accurate application. The 1255 is ideal for fields and areas that require precise product placement. The 1255 is designed with a Murphy gauge that is connected to the in-cab control with warning light and buzzer to warn of insufficient air pressure, ensuring proper application.

Valmar 1255 In-Cab Control UnitThe Valmar 1255 features dual electric clutch control, which allows for on-the-go adjustments from the operator’s seat. Two magnetic clutches connected to an in-cab control unit allow for section shutoff of both left- and right-hand booms. Implementing swath control allows for precise application of granular products including herbicides, fertilizers, insecticides and seeds. Minimizing overlap also reduces input costs and ensures that you are achieving your target application rate across the entire area being applied.

To ensure that proper air pressure is being achieved, the Valmar 1255 features a Murphy gauge to measure air manifold pressure using an inches of water column. This gauge is connected to the 1255 in-cab control unit providing a pressure reading as well as a warning light and buzzer in the case that sufficient air pressure is not being achieved.

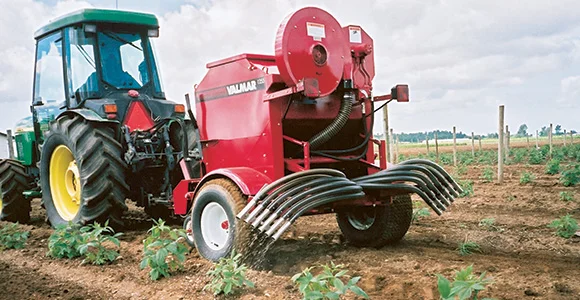

Valmar 1255 Banding BoomThe 1255 allows for use of a broadcast or inter-row banding boom option. The broadcast boom features a 16-foot boom with 6 deflectors on each side and options for a 4- or 8-foot boom extension (20- or 24-foot total boom length). The inter-row banding option uses 2 stainless steel assemblies with 6 drop tubes on each side of the unit, which telescope to accommodate widths up to 10 feet. The inter-row banding kit also includes a 7-foot, non-folding broadcast boom with breakaways for inter-row broadcasting using 12 drop tubes. Both options are capable of adjusting the boom height from 18 to 36 inches, allowing you to suit the 1255 specifically to your application needs.

Valmar 1255 Calibration CrankA proper calibration ensures that the correct application rate is being achieved for a given granular product. The Valmar 1255 simplifies the calibration process with a couple key features. The 1255 uses a quick release, which lowers the Venturi and manifold systems and allows for easy installation of the calibration funnels. This helps when performing a calibration or when emptying the hopper is required.

A calibration hand crank is included with the 1255 and is used to turn the metering system during the calibration process. This is a simple and effective way of determining the precise application rate that is being achieved, giving you confidence in your Valmar 1255.

Product Specs

Series
Valmar
Size
18 cu-ft
Product type
Granular Applicators
Model Name Short
1255
Model Name Long
1255 PULL TYPE APPLICATOR

Materials Spread

Fertilizer
YES
AG Lime
NO
Litter
NO
Organics
NO
Seed
YES
Other
Granular Herbicide
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Red

Hitch

Clevis type hitch, safety chains and tail lights for towing

Jack
-
Tarp

Weather tight lid

Tail Light

Included

Height
72"
Weight
1,100 lbs

Hopper

Hopper Size

18 cubic feet

Hopper Material

409 stainless steel, painted

Hopper Extensions

N/A

Hopper Gate Control

Manual open/close

Hopper Ladder

N/A

Hopper "Inverted V"

N/A

Hopper Sight Window

N/A

Metering and Drive

PTO Drive

N/A

Material Distribution Booms/Spinners/Air Line

Air boom with 12 outlet metering
Adjustable boom height approximately 18 to 32 inches

Application Swath Width

Option: Inter-Row boom, width manually adjustable – 7 feet, 10 feet
Option: Broadcast boom, width manually adjustable – 16 feet, 20 feet, or 24 feet

Material Distribution Drive

18 inch fan assembly
Option: Gas engine driven fan
Option: Hydrualic driven fan

Metering Drive

Ground driven metering and 60 speed gearbox provide 5% difference between settings

Primary Metering

Included: 1 Pair – 9″, red, 28 groove, plastic metering rollers
Included: 1 Pair – 9″, grey, 12 groove, platic metering rollers

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering
-
Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

Two section metering with magnetic clutches for left/right section control

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
