VALMAR 1665 Row-Crop Applicator and Inter-Row Seeder

Salford Valmar row-crop applicators for inter-row seeding apply seed at exactly the rate you desire.  Achieve precise placement of seed, while avoiding unwanted seed in the row. Reduce damages and losses from wind or water erosion, while increasing your soil’s organic matter content.

Valmar units like the 1665 work well with Hipper, Lister, Bed Conditioner, Paratill, Terratill, and most other implements. Increase yields and decrease input costs with row-crop positive displacement insecticide application. The 1665 mounts on planters or tool bars apply products in the seed furrow or over the row.

1665 Individual Metering Applicators

Individual Outlet, Positive Displacement Applicator
Apply insecticides, herbicides, small seeds, inoculants, or micro-nutrients precisely where needed and at the rate required. Valmar’s ground drive metering assures precise application regardless of varying ground speed. The roller chain-driven, 60-speed mechanical gearbox delivers accurate application in five percent increments, or use the optional hydraulic drive for variable-rate technology application. With Valmar’s individual metering, matching the number of outlets required for your operation is easily accomplished by opening or closing individual slide gates.

Features

Fan:

  • 16-inch impeller with three-inch outlet
  • Hydraulic drive 2.2 CID motor requires 8 GPM
  • Operates at 3200-4000 RPM

Options:

  • Metering drive is a required option
    • Mechanical ground drive includes 60-speed gearbox with five percent between settings, ground drive tire and hand crank for calibration
    • Hydraulic metering drive includes an 11.3 CID hydraulic motor that requires up to 12 GPM for complete operating range
  • Mounting kits for various tool bars and planters
  • Broadcast deflector kit
  • Electric clutch and control kit
  • LOCK ‘n’ LOAD valve assemblies
  • Straight tube outlet kit

1665 Hopper Features:

  • 20 cubic feet
  • Mild steel with two-component epoxy primer and two-component cross-linked acrylic top coat paint system
  • Weather-tight lid
  • Product level sight gauge
  • Manifold pressure gauge
  • Sasquatch optional

Product Delivery:

  • One-inch ID flexible PVC hose
  • Optional individually mounted broadcast deflectors or straight tube outlets

Metering:

  • Ground drive or hydraulic drive – required option
  • 16 individual metering outlets can be shut off independently for up to 16 rows or broadcast up to 40 feet
  • Stainless steel metering bottom

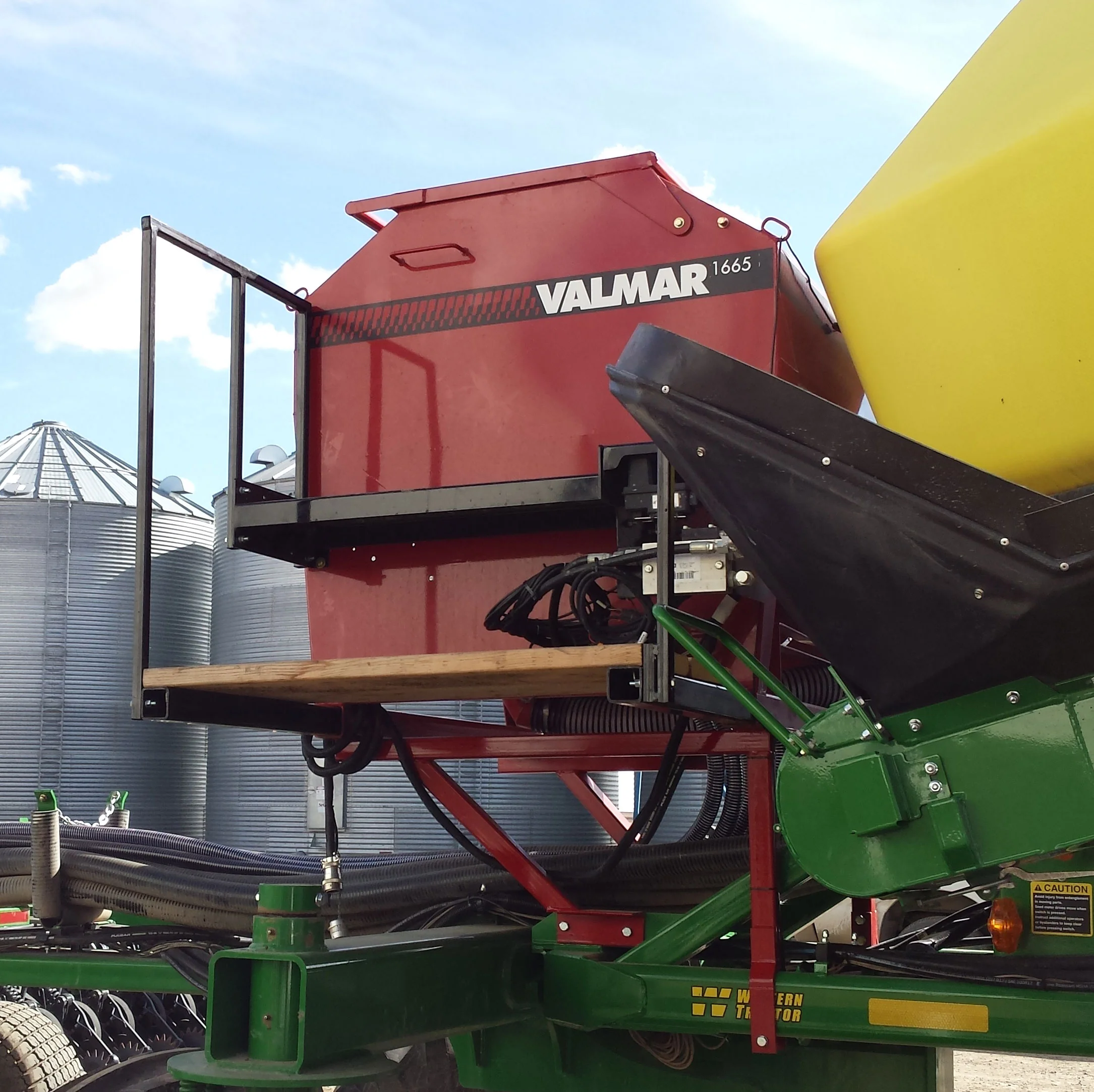

VALMAR 1665 air seeder-Mount inoculant Applicator

Get all the benefits from in-furrow applied granular inoculant
Inoculant Applicator
Injects inoculant into air seeder towers for precise placement in seed furrows.
Modified hopper shaft provides agitation to reduce bridging in the hopper.
Comes with eight tower injectors.
Injectors do not affect tower performance for seed or fertilizer.
Individually metered outlets allow matching the numbers of air seed towers.

1665 Individual Metering Applicators

Individual Outlet Positive Displacement Applicator
Apply insecticides, herbicides, small seeds, inoculants, or micro-nutrients precisely where needed and at the rate required. Valmar’s ground drive metering assures precise application regardless of varying ground speed. The roller chain driven, 60-speed mechanical gearbox delivers accurate application in five percent increments, or you can use the optional hydraulic drive for V.R.T. application. With Valmar’s individual metering, matching the number of outlets required for your operation is easily accomplished by opening or closing individual slide gates.

Features

Hopper:

  • 33 cu. ft.
  • Mild steel with two-component epoxy primer and two-component, cross-linked acrylic top coat paint system
  • Weather tight lid
  • Product level sight gauge
  • Agitator to reduce product bridging
  • Manifold pressure gauge

Product Delivery:

  • 1.25-inch ID flexible PVC hose
  • 8 air seeder tower injectors

Metering:

  • Stainless steel metering bottom
  • 16 individual metering outlets can be shut off independently to match the number of air seeder towers
  • Optional Valmar ground drive, hydraulic drive, or utilize some components of air seeder drive











Fan:

  • Requires a fan drive
  • 18-inch impeller with three-inch outlet
  • Operates at 3200-4000 RPM

Options:

  • Metering drive is a required option
  • Mechanical ground drive includes 60-speed gearbox with five percent between settings, ground drive tire, and hand crank for calibration
  • Hydraulic metering drive includes an 11.3 CID hydraulic motor that requires up to 12 GPM for complete operating range
  • JD 1900 Commodity Cart ground drive takeoff includes 60-speed gearbox and necessary material
  • A fan drive is a required option when using the Valmar fan
  • Hydraulic: 2.2 CID motor requires 8 GPM – does not include hydraulic lines
  • Gas: 9 HP engine
  • 16-outlet broadcast deflector kit
  • Electric clutch and control kit
  • JD 1900 tow behind cart mounting kit
  • Seeding tool hitch mount kit

Shipping Information



  • Height: 45 in.
  • Width: 65.5 in. (40 in. without fan and platform)
  • Length: 36 in.
  • Weight: 740 lb.
