AerWay TURF AERATION

TURF AERATION SO EASY YOU CAN DO IT TODAY WITHOUT INTERRUPTING PLAY

AerWay’s Advanced Aeration Systems offer you low cost, low maintenance, long lasting options for turf aeration.

Regular treatment with AerWay® can turn your soil around:

  • Compaction relieved
  • Improved soil conditions
  • Positive plant response

Selecting an AerWay is like designing your own aerator. Simply choose your frame style, select the appropriate tine, and add the options for your application.

Features



Electric/Hydraulic Power Pac

  • Can be added to any AerWay pull-type frame for use with power units not equipped with remote hydraulic outlets
  • Operated with a switch from operator’s seat to raise or lower the transport wheels

Tine Options

  • Shattertine® lifts and fractures tough soil to increase air, water, and nutrient movement on roughs, fairways, tees and sports fields.
  • Sportstine® is a 6-inch long, heavy-duty venting aeration tine for sports fields, fairways, tees and approaches.
  • Finetine® relieves surface compaction and penetrates up to 6 inches on greens, tees, approaches, and fine turf.
  • Coring Tine® is used for dethatching and to prepare the soil for topdressing and overseeding on fairways and sports fields where coring cultivation is desired.
  • Super Finetine® is designed to be used as a thatch management tool on greens, tees, approaches, and fine turf.

Options:

    Greens Express Smoothing Roller

    • Lift roller completely off the ground to leave aeration holes open
    • Or adjust tine penetration in less than one-inch increments
    • Or support the tined roller completely out of the ground for use exclusively as a smoothing roller
    • Ensures that an artificial barrier to water percolation will not develop

    Adjustable Roller Feature

    • Offset rollers of the Shattertine® equipped units for renovation purposes by changing two bolts on the out-board end of each roller.
    • Manual unit has three positions of offset: 0, 2.5, and 5 degrees.

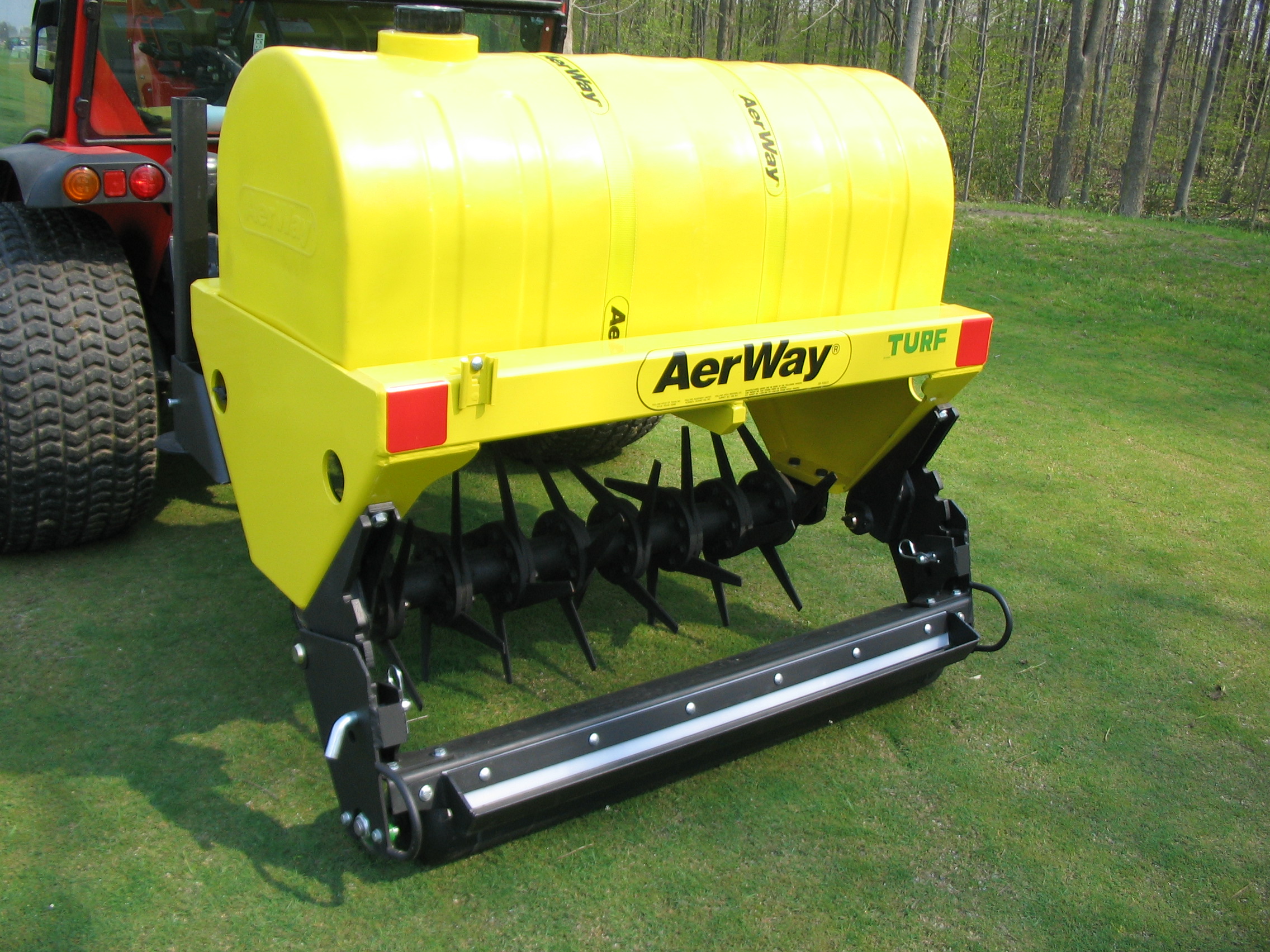

    Liquid Ballast Tank

    • Standard on all AerWay® units
    • Provides an easy and effective way to ballast the AerWay® for complete ground penetration
    • Comes complete with straps and evacuation spout.
    • Ballast tank should always be completely filled

    Tank Length     Total Ballast
    47"                     650 lbs.
    62"                     860 lbs.
    77"                     1,040 lbs.
    92"                     1,250 lbs.



    Specifications

    3-Point Hitch
    Model HP Required Weight (approx.)
    45" 15-22 HP 977 lbs.
    60" 20-33 HP 1143 lbs.
    75" 25-35 HP 1223 lbs.
    90" 30-40 HP 1298 lbs.
    Hydraulic Tag-Along
    Model HP Required Weight (approx.)
    45" 18-25 HP 1194 lbs.
    60" 25-35 HP 1437 lbs.
    75" 30-40 HP 1587 lbs.
    90" 35-50 HP 1753 lbs.
