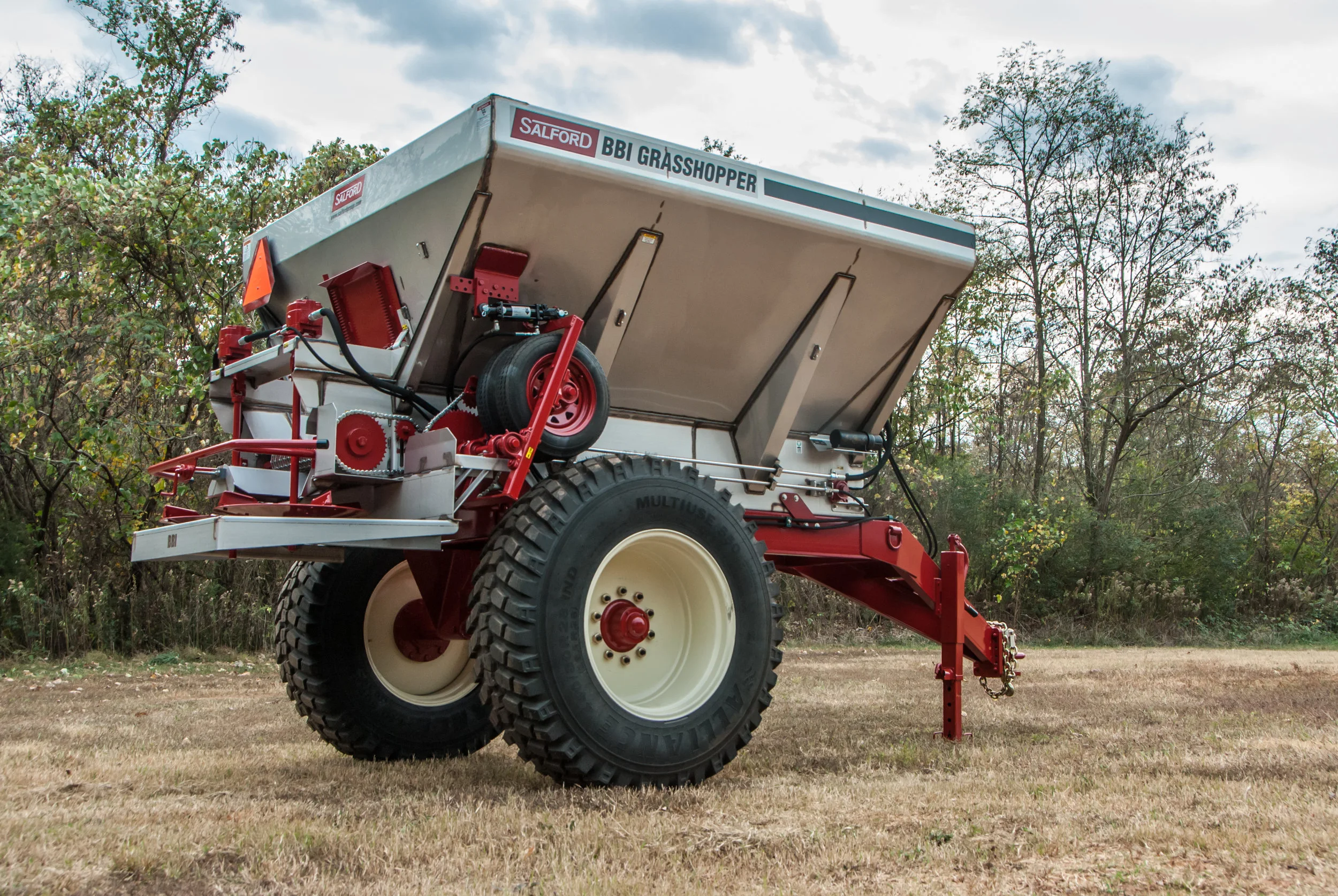

Grasshopper HDR Spinner Spreader

Application • Pull Type Spinner Spreaders

Features

The Grasshopper hydraulic pull-type spreader is the original mid-season, top-dress applicator from Salford. Designed to hold 5 tons of fertilizer or 7 tons of lime, this machine delivers the nutrients your emergent crop needs to maximize yield potential.
With high ground-clearance for row cropping and top dressing and flotation tires to minimizing soil compaction, this spreader achieves precision application in both row crop and sod/turf farm environments. The Grasshopper is built for durability and precision, featuring ground-wheel-drive mechanics, and the original Salford spreader system for a consistently wider, flatter spread pattern.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• Self-contained hydraulics driven by Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Single motor gearbox
• Stainless steel spinners, fins and spread shield
• 10′ Stainless steel hopper
• 16″ stainless steel mesh chain conveyor
• 12-Ton rigid, high-clearance axle with 11.25 x 28 ribbed implement row crop tires
• Heavy-duty tongue jack
• Spreader pan test kit

Precision, power, performance. Spreads lime at up to 2 tons per acre at 14 mph with a 60-foot swath, spreads fertilizer at 80-foot-plus swaths. Optimized for medium-capacity applications, for turf farms, pastures, and row crops. High clearance straddles rows. Equipped with Salford BBI’s Binary Manifold, making connections to your precision agriculture electronics a snap.

BBI Grasshopper HDR is the ultimate combination of power, precision, and performance, delivering unparalleled efficiency in the field. We call it cost-in-use—a combination of measures like the amount of fuel material and fuel you save from hitting your targets better with each nutrient application. There’s nothing like having greater control over the profitability of your business, and Grasshopper HDR is built to be your partner for increasing yield while cutting costs.

Part of Salford BBI’s commitment to precision farming, all hydraulic models arrive in the field standard equipped with two proprietary technology pieces: the Binary Manifold and the Task Command System. The Binary Manifold, Salford BBI’s ISOBUS-ready platform, enables snap connections to all major precision agriculture platforms, while the Task Command System is our own precision agriculture combination pack, featuring a virtual terminal and software applications that include guidance and variable-rate application capabilities.

Contact Us Form

"*" indicates required fields

First Name * Last Name *

Phone Number*

Email*

State/Provice*

Postal code*

How can we help you?*

Salford Model Line

Serial Number

Message to Salford

Name

This field is for validation purposes and should be left unchanged.

Specs Compare

Product Specs

Series	BBI
Size	200 cu-ft capacity, 220 cu-ft capacity
Product type	Pull Type Spinner Spreaders
Model Name Short	Grasshopper HDR
Model Name Long	Grasshopper, Hydraulic, 9' Single Axle Spreader

Materials Spread

Metering and Drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD Choice: Tractor Supplied Hydraulics – Req 46 GPM total – 2300 PSI; 2 Remotes@ 23 GPM each; Zero pressure case return
Material Distribution Booms/Spinners/Air Line	Stainless steel spinners, fins and spread shield
Application Swath Width	Lime: Up to 60 feet Fert: Up to 80 feet
Material Distribution Drive	Standard:PTO Driven Spinners Optional: Hydraulic Plug-To-Tractor Spinners (Plug-To-Tractor), requires 21 GPM @ 2000 PSI Optional: HY TORQUE Manifold For use with standard hydraulics only Two speed / Manually operated to handle HIGH Rates, Weight and Speeds.
Metering Drive	Standard: Tandem Gearcase Optional: High-Speed Conveyor Valve (GR Valve)
Primary Metering	20″ Stainless Steel Mesh Chain
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	N/A

Compare

Select up to 3 products to compare specifications

Grasshopper HDR Spinner Spreader

Add Model & Size

Choose Model & Size

1 2

Product Specs

Series	BBI
Size	200 cu-ft capacity, 220 cu-ft capacity
Product type	Pull Type Spinner Spreaders
Model Name Short	Grasshopper HDR
Model Name Long	Grasshopper, Hydraulic, 9' Single Axle Spreader

Materials Spread

Metering and Drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD Choice: Tractor Supplied Hydraulics – Req 46 GPM total – 2300 PSI; 2 Remotes@ 23 GPM each; Zero pressure case return
Material Distribution Booms/Spinners/Air Line	Stainless steel spinners, fins and spread shield
Application Swath Width	Lime: Up to 60 feet Fert: Up to 80 feet
Material Distribution Drive	Standard:PTO Driven Spinners Optional: Hydraulic Plug-To-Tractor Spinners (Plug-To-Tractor), requires 21 GPM @ 2000 PSI Optional: HY TORQUE Manifold For use with standard hydraulics only Two speed / Manually operated to handle HIGH Rates, Weight and Speeds.
Metering Drive	Standard: Tandem Gearcase Optional: High-Speed Conveyor Valve (GR Valve)
Primary Metering	20″ Stainless Steel Mesh Chain
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	N/A

Explore More

Downloads

BBI Spreader Literature

English

Click to Download

BBI Spreader Literature

French

Click to Download

BBI Operator Manuals

Click to Open

Fertilizer	YES
AG Lime	YES
Litter	NO
Organics	NO
Seed	No
Other	-
Number of products applied, including optional hopper compartments	1

Paint	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)
Hitch	Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch Optional: Cat 4 Articulating Hitch
Jack	Heavy-duty tongue jack
Tarp	Standard: No Tarp Option: Tarp for hopper with aluminum end caps Option: Tarp for hopper with stainless steel end caps
Tail Light	Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit
Height	87"
Weight	-

Hopper Size	10′ Standard Body Hopper – 200 cu-ft capacity
Hopper Material	Choice: 409 Stainless Steel, Painted Choice: 304 Stainless Steel
Hopper Extensions	N/A
Hopper Gate Control	Jack Operated Gate
Hopper Ladder	Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper Optional: Ladder for Stainless Steel Hopper
Hopper "Inverted V"	Optional
Hopper Sight Window	Standard Sight Window

Fertilizer	YES
AG Lime	YES
Litter	NO
Organics	NO
Seed	No
Other	-
Number of products applied, including optional hopper compartments	1

Paint	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)
Hitch	Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch Optional: Cat 4 Articulating Hitch
Jack	Heavy-duty tongue jack
Tarp	Standard: No Tarp Option: Tarp for hopper with aluminum end caps Option: Tarp for hopper with stainless steel end caps
Tail Light	Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit
Height	87"
Weight	-
