AB230CD Applicator for CaseIH Trident

Features

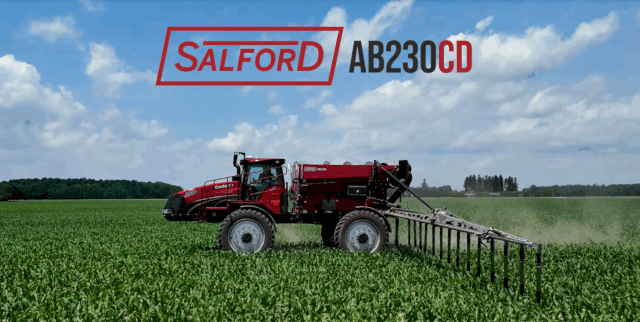

Salford’s latest chassis-mounted air boom applicator, the AB230CD, is engineered specifically for the new CaseIH Trident 5550 Dry Hi-Flow — an improved chassis with unmatched hydraulic capacity. Purpose-built to take full advantage of this enhanced chassis, the AB230CD delivers faster application speeds, higher product rates, and wider coverage with less compaction. Its 80-foot boom and 225 cu/ft triple-bin hopper maximize daily productivity while enabling precise, variable-rate applications of fertilizer and micro-nutrients like sulfur and zinc.

With proven, industry leading, experience engineering air boom systems for high-clearance chassis, Salford continues to be the top choice in durability, precision, and operator ease-of-use. The AB230CD integrates seamlessly with the chassis universal terminal and in-cab controls so that operators don’t need to learn new systems. The applicator features enhanced boom ride for rough terrain. For commercial applicators, this means fewer passes, higher throughput, and greater ROI.

The triple-bin system allows for application of two main products and a micro-nutrient, each at independently prescribed rates — eliminating the need for pre-blending and giving applicators the flexibility to match the exact needs of each field. Optional drop-tubes further enhance versatility, enabling in-season nutrient or cover crop application beneath the crop canopy. This extends the working season and unlocks additional revenue opportunities with a single, high-performance machine.

The AB230CD has 80-ft application width. The 14% wider swath vs many competitive air boom applicators equates to:
– Lower labor costs and chassis hours
– Less soil compaction

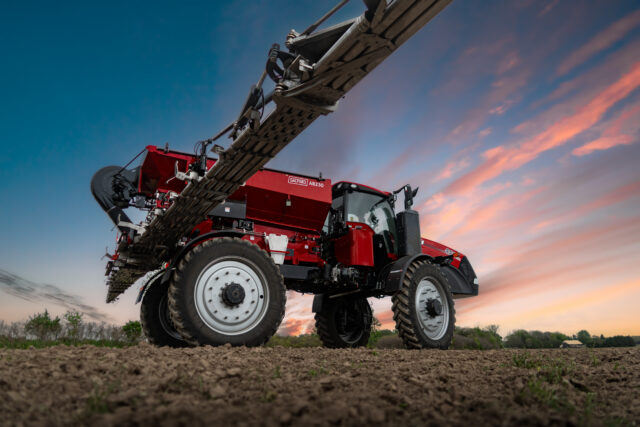

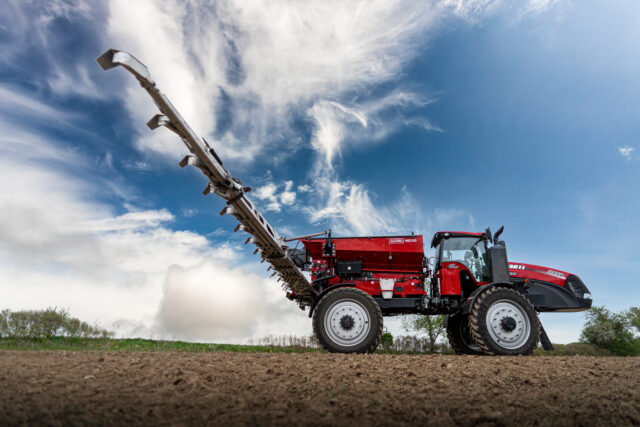

The booms clear up to 69-in and have an improved suspension for operating at high speeds.
There is a 6-ft breakaway tip, mid-boom shear, and additional protection in case of boom strikes.
The booms can also be equipped with optional Raven AutoBoom® XRT auto height control for more uniform application, and extra protection for the boom.

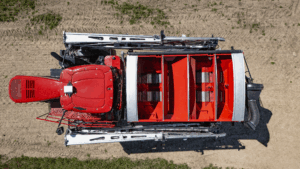

Bin configuration

The AB230CD hopper is constructed from 409 stainless steel.

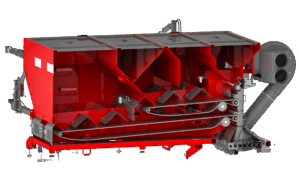

There are two main compartments, and a third section for micro-nutrients. Internal gates allow the bins to be split in multiple different ways.

Each compartment has independent left/right metering allowing for variable rate application of up to three products, with left right section control.

The independent metering allows for prescription blends to be created on the fly, and rates can go as low as 6 lbs/ac for micro-nutrients such as sulphur and zinc.

AB260CS2 with CaseIH Viper 4+ with Raven RCM Integrated Rate Control. AB260CS2 Boom Controller.Boom functions and metering controls are integrated into the CaseIH Titan 5550 Dry Hi-Flow chassis. The  boom fold and pitch are controlled from the in-cab multi-function joystick.

Metering is controlled by the Raven RCM rate controller, and Viper 4+ display for a system that is user-friendly, accurate and reliable.

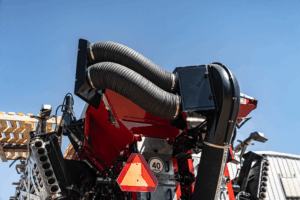

Fan and Snorkel

Product flow through the air booms is powered by a 10-in. fan that is common to Salford’s line of high-capacity floater applicators. This fan helps to consistently achieve application rates up to 1,200lbs/ac from the two main hopper compartments.

A fan snorkel is a standard feature on the applicator. This reduces wear on the fan and prevents contaminants from getting into the air stream.

The AB230CD hopper is equipped with many features to improve its performance and make it faster and easier for the operator to use the machine.

                • Electric roll top tarp
                • Stainless steel bin screens
                • Easily accessible bin compartment switches
                • Bin Level Sensors
                • External work lights
                • Internal hopper work lights
                • Rear maintenance ladder
                • Clean out funnels
                • Two easily accessible grease banks

Product Specs

Series
Valmar
Product type
Chassis Mount Air Boom Applicators
Model
AB230CD
Size
225 cu-ft

Dimensions and Weights

Working width, ft (m)
80 feet (24.38 m)
Transport width, ft (m)
-
Transport height, ft (m)
-
Approximate weight, lb (kg)
-
Other sizes available, number of capacities
-

Materials Spread

Fertilizer
Yes
AG Lime
No
Litter
No
Organics
No
Seed
Yes
Other
Granular Herbicide, low rate mico-nutrients such as sulphur and zinc.
Number of products applied, including optional hopper compartments
3

Hopper

Hopper Size

225 cubic foot 3 compartment hopper
225 cu-ft, 25 cu-ft/200 cu-ft, 77 cu-ft/143 cu-ft, 109 cu-ft/116 cu-ft, 25 cu-ft/52 cu-ft/143 cu-ft and 25 cu-ft/84 cu-ft/116 cu-ft.

Hopper Material

409 Stainless Steel, Painted

Hopper Extensions

N/A

Hopper Gate Control

N/A

Hopper Ladder

Integrated rear maintenance ladder

Hopper "Inverted V"

Yes

Hopper Sight Window

2 Sight windows

Metering and Drive

PTO Drive

Chassis Supplied

Material Distribution Booms/Spinners/Air Line

∙ 80 foot spread / 304 stainless steel booms
∙ Hydraulic boom suspension
∙ 6 foot breakaway tips – hydraulic fold
∙ Integrated controls
∙ Hydraulic independent RH and LH fold

Application Swath Width, ft (m)

80 feet (24.38 m)

Material Distribution Drive
-
Metering Drive

Hydrualic driven metering

Primary Metering

Dual, independently driven 16 inch 304 stainless steel mesh chain conveyors (1 LH & 1 RH)

Primary Metering Minimum Output Rate

56 lbs/acre* at 10 mph, 65 lbs/cu-ft

Primary Metering Maximum Output Rate

1200 lbs/acre* at 10 mph, 65 lbs/cu-ft

Secondary Metering

Dual, independently driven 16 inch 304 stainless steel mesh chain conveyors (1 LH & 1 RH)

Secondary Metering Minimum Output Rate

15 lbs/acre* at 10 mph, 65 lbs/cu-ft (Micro-Bin Standard Rate)

6 lbs/acre* at 10 mph, 65 lbs/cu-ft (Micro-Bin Low Rate)

Secondary Metering Maximum Output Rate

280 lbs/acre* at 10 mph, 65 lbs/cu-ft (Micro-Bin Standard Rate)

75 lbs/acre* at 10 mph, 65 lbs/cu-ft (Micro-Bin Low Rate)

Material Banding or Section Control

Left/Right

2 section (manual & automatic)



Tires and Axles

Transport wheel mounting
N/A
Transport tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Mounted - Case Trident 5550 Dry Hi Flow
Jack
-

Tractor Requirements

Required power, hp (kw)
-
Remote Hydraulic Values required
-
Hydraulic Pressure
-

Monitoring and Precision Control

Monitors Options and Rate Control

CaseIH Viper 4+ with Raven RCM

Weigh System Option
-

Other Equipment Options

Option 1
Electric Tarp (Optional)
Option 2
LED work lights, Amber and Red tail lights
Option 3
-
Option 4
-
Equipment Options
-
