When it comes to managing pasture and hay fields, the AerWay Classic has soil management covered. The Classic aerator provides versatility, durability, dependability, and all-season performance. Thousands of livestock producers trust AerWay to improve their soil productivity with the patented AerWay Shattertines that lift and fracture tough soil to increase air and water movement. The Classic is ideal for renovating pastures and managing hay fields for farms and acreages of all sizes.

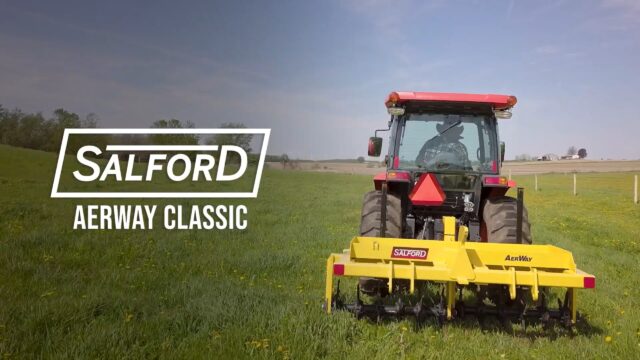

AerWay Classic
Features
The AerWay Classic features a single roller with 4 tines per row on 7.5 in. spacing. The Quick Adjust pin system allows you to vary the roller swing angle between 0° and 10° in increments of 2.5°. This enables you to ”fine tune” your setting for aeration, renovation, overseeding or pre-working your fields, for better retention of fertilizer, liquid manure, rainfall, or irrigation. One implement that can do many jobs. The AerWay is used to get the maximum benefit out of your inputs and helps to achieve a better root system that results in higher yields.
Salford AerWay Classic is available exclusively with the 8″ Cast Shattertine option.

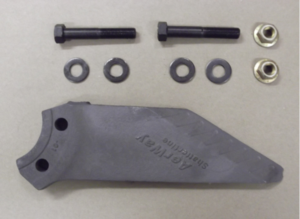

The Cast Shattertine features a sharper edge for improved ground penetration, delivers even wear, and maintains its shape over time.
AerWay chain harrows can be added to the AW Classic aerator allowing for incorporation of a wide range of inputs including manure, litter, fertilizer, herbicide, and seed. The harrows use 5/8 in. steel and features 3 in. teeth angled at 45° on one side for lighter harrowing or when working in heavier trash. The opposite side of the harrow uses 3 in. teeth angled at 15° for more rigid harrowing action. The unique tooth arrangement of the harrow is self-cleaning under most conditions.
For tough ground conditions or fields that have not been aerated in the past, additional weight may be necessary to achieve desired penetration depth. The AerWay C-Flex allows for use of concrete ballast blocks which can be placed in the machine’s integrated weight trays when needed. Each machine allows for a combination of 550 lbs. and/or 750 lbs. blocks depending on the width of the machine.
Product Specs
|
Series
|
AerWay | AerWay | AerWay |
|
Product Type
|
Agricultural Aeration | Agricultural Aeration | Agricultural Aeration |
|
Model
|
CLASSIC | CLASSIC | CLASSIC |
|
Size
|
10 ft | 12 ft | 15 ft |
|
Folding (Multi-Section) or Non-Folding
|
Non-folding | Non-folding | Non-folding |
|
Fold Type
|
N/A | N/A | N/A |
Dimensions and Weights
|
Working width, ft (m)
|
10 ft (3.05 m) | 12 ft (3.66 m) | 15 ft (4.57 m) |
|
Transport width, ft (m)
|
10 ft 4 in (3.15 m) | 12 ft 4 in (3.76 m) | 15 ft 3 in (4.65 m) |
|
Transport height, ft (m)
|
- | - | - |
|
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
|
3,520 lbs (1,596.81 kg) (accepts 3,500 lb kit only) or 4,365 lbs (1,979.60 kg) (accepts 7,000 lb kit only) | 3,990 lbs (1,810.82 kg) (accepts 3,500 lb kit only) or 4,835 lbs (2,193.61 kg) (accepts 7,000 lb kit only) | 5,570 lbs (2,526.02 kg) (accepts 7,000 lb kit only) |
|
Other sizes available, number of widths
|
12ft, 15ft | 10ft, 15ft | 10ft, 12ft |
Ground Engaging Equipment - Front Row(s)
|
Front row(s) ground engaging equipment (description)
|
8" Cast Shattertine | 8" Cast Shattertine | 8" Cast Shattertine |
|
Front row(s) ground engaging equipment (quantity)
|
4 Tines per Row | 4 Tines per Row | 4 Tines per Row |
|
Front row(s) equipment quantity
|
64 | 72 | 96 |
|
Front row(s) equipment mount
|
- | - | - |
|
Equipment spacing, in (mm)
|
7.5 in (190.5 mm) | 7.5 in (190.5 mm) | 7.5 in (190.5 mm) |
|
Equipment size, in (mm)
|
8 in (203.2 mm) | 8 in (203.2 mm) | 8 in (203.2 mm) |
|
Angle
|
0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° |
|
Bearings
|
1 3/8in Gang Bearing | 1 3/8in Gang Bearing | 1 3/8in Gang Bearing |
Ground Engaging Equipment - Rear Row(s)
|
Rear row(s) ground engaging equipment (description)
|
- | - | - |
|
Rear row(s) ground engaging equipment (quantity)
|
- | - | - |
|
Rear row(s) equipment quantity
|
- | - | - |
|
Rear row(s) equipment mount
|
- | - | - |
|
Equipment spacing, in (mm)
|
- | - | - |
|
Equipment size, in (mm)
|
- | - | - |
|
Angle
|
- | - | - |
|
Bearings
|
- | - | - |
Wheels and Tires
|
Transport wheel mounting
|
6-bolt (2) or 6-bolt (4) | 6-bolt (2) or 6-bolt (4) | 6-bolt (4) |
|
Transport tires
|
9.5 x 15TL Tires | 9.5 x 15TL Tires | 9.5 x 15TL Tires |
|
Wing wheel mounting
|
N/A | N/A | N/A |
|
Wing tires
|
N/A | N/A | N/A |
|
Gauge wheel mounting
|
N/A | N/A | N/A |
|
Guage wheel tires
|
N/A | N/A | N/A |
Hitch
|
Hookup to tractor, mounted or pull-type
|
3 Point Mount, CAT3 std | 3 Point Mount, CAT3 std | 3 Point Mount, CAT 3 std |
Depth and Level Adjustment
|
Typical operating depth, in (mm)
|
Up to 8 in (203.2 mm) | Up to 8 in (203.2 mm) | Up to 8 in (203.2 mm) |
|
Operating speed (mph)
|
7-10 mph (12.87-22.53 kph) | 7-10 mph (12.87-22.53 kph) | 7-10 mph (12.87-22.53 kph) |
|
Depth control
|
- | - | - |
|
Fore/aft leveling
|
- | - | - |
Tractor Requirements
|
Required power, hp (kw)
|
70 - 100 hp (52.20 - 74.57 kW) | 84 - 120 hp (62.63 - 89.48 kW) | 105 - 150 hp (78.50 - 111.86 kW) |
|
Remote Hydraulic Values required
|
- | - | - |
|
Hydraulic Pressure
|
- | - | - |
Finishing Attachments and Options
|
Option 1
|
Harrow Arms & Chain Harrows | Harrow Arms & Chain Harrows | Harrow Arms & Chain Harrows |
|
Option 2
|
Ballast Blocks | Ballast Blocks | Ballast Blocks |
|
Option 3
|
- | - | - |
|
Option 4
|
- | - | - |
|
Equipment Options
|
- | - | - |
Compare
Select up to 3 products to compare specifications
AerWay Classic
Add Model & Size
Choose Model & SizeProduct Specs
|
Series
|
AerWay | |||
|
Product Type
|
Agricultural Aeration | |||
|
Model
|
CLASSIC | |||
|
Size
|
10 ft | |||
|
Folding (Multi-Section) or Non-Folding
|
Non-folding | |||
|
Fold Type
|
N/A |
Dimensions and Weights
|
Working width, ft (m)
|
10 ft (3.05 m) | |||
|
Transport width, ft (m)
|
10 ft 4 in (3.15 m) | |||
|
Transport height, ft (m)
|
- | |||
|
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
|
3,520 lbs (1,596.81 kg) (accepts 3,500 lb kit only) or 4,365 lbs (1,979.60 kg) (accepts 7,000 lb kit only) | |||
|
Other sizes available, number of widths
|
12ft, 15ft |
Ground Engaging Equipment - Front Row(s)
|
Front row(s) ground engaging equipment (description)
|
8" Cast Shattertine | |||
|
Front row(s) ground engaging equipment (quantity)
|
4 Tines per Row | |||
|
Front row(s) equipment quantity
|
64 | |||
|
Front row(s) equipment mount
|
- | |||
|
Equipment spacing, in (mm)
|
7.5 in (190.5 mm) | |||
|
Equipment size, in (mm)
|
8 in (203.2 mm) | |||
|
Angle
|
0°,2.5°, 5°,7.5°, or 10° | |||
|
Bearings
|
1 3/8in Gang Bearing |
Ground Engaging Equipment - Rear Row(s)
|
Rear row(s) ground engaging equipment (description)
|
- | |||
|
Rear row(s) ground engaging equipment (quantity)
|
- | |||
|
Rear row(s) equipment quantity
|
- | |||
|
Rear row(s) equipment mount
|
- | |||
|
Equipment spacing, in (mm)
|
- | |||
|
Equipment size, in (mm)
|
- | |||
|
Angle
|
- | |||
|
Bearings
|
- |
Wheels and Tires
|
Transport wheel mounting
|
6-bolt (2) or 6-bolt (4) | |||
|
Transport tires
|
9.5 x 15TL Tires | |||
|
Wing wheel mounting
|
N/A | |||
|
Wing tires
|
N/A | |||
|
Gauge wheel mounting
|
N/A | |||
|
Guage wheel tires
|
N/A |
Hitch
|
Hookup to tractor, mounted or pull-type
|
3 Point Mount, CAT3 std |
Depth and Level Adjustment
|
Typical operating depth, in (mm)
|
Up to 8 in (203.2 mm) | |||
|
Operating speed (mph)
|
7-10 mph (12.87-22.53 kph) | |||
|
Depth control
|
- | |||
|
Fore/aft leveling
|
- |
Tractor Requirements
|
Required power, hp (kw)
|
70 - 100 hp (52.20 - 74.57 kW) | |||
|
Remote Hydraulic Values required
|
- | |||
|
Hydraulic Pressure
|
- |
Finishing Attachments and Options
|
Option 1
|
Harrow Arms & Chain Harrows | |||
|
Option 2
|
Ballast Blocks | |||
|
Option 3
|
- | |||
|
Option 4
|
- | |||
|
Equipment Options
|
- |
Specification Details & Conditions:
Specifications are subject to change without notice. All weights, dimensions, and other specification values listed are for standard equipment. Optional features, configurations, and machine settings may alter these values, including transport dimensions. Where specifications vary by equipment setting, the minimum value will be used unless otherwise stated. For the most accurate and up-to-date information, please contact your dealer or our customer support team.
