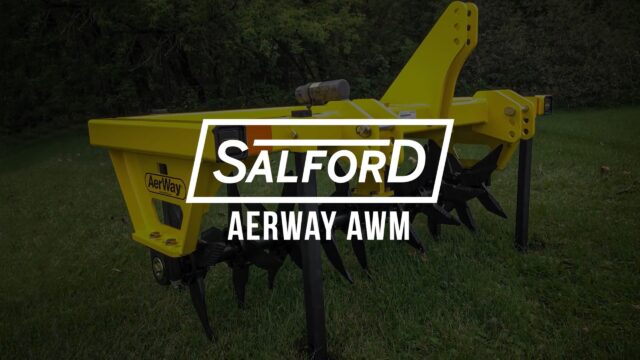

AerWay AWM

The AerWay AWM features three standard width configurations: 6.25 ft., 7.5 ft. and 10 ft. Each of these widths is available in a three-point or pull-type model configuration.

The AWMP (Pull-Type) features two, 9.5 in. X 15 in. – 8 ply ribbed agricultural tire mounted to a six bolt hub and can be lowered/raised using a 3 in. bore x 12 in. stroke double acting cylinder system with manual lockout.

For tough ground conditions or fields that have not been aerated in the past, additional weight may be necessary to achieve desired penetration depth. The AWM allows for use of concrete ballast blocks which can be placed in the machine’s integrated weight trays when needed. 6.25 ft., 7.5 ft. and 10 ft. models allow for 2200 lbs., 3000 lbs., and 4100 lbs. of additional weight, respectively, using a combination of 550 lbs. and/or 750 lbs. blocks.

AerWay chain harrows can be added to the AWM aerator allowing for incorporation of a wide range of inputs including manure, litter, fertilizer, herbicide, and seed. The harrows use 5/8 in. steel and features 3 in. teeth angled at 45° on one side for lighter harrowing or when working in heavier trash. The opposite side of the harrow uses 3 in. teeth angled at 15° for more rigid harrowing action. The unique tooth arrangement of the harrow is self-cleaning under most conditions.
