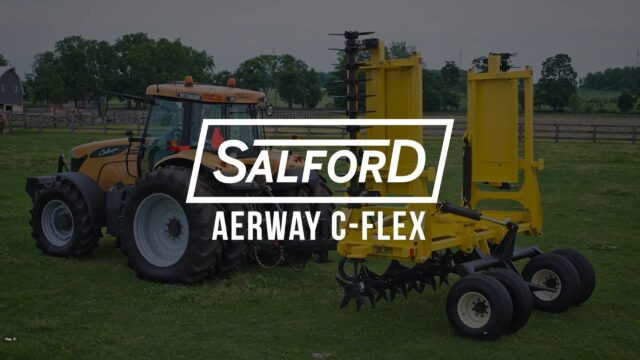

The AerWay C-Flex Load Dampening System is standard on all AWST and AWFT machines. Designed to protect tined rollers from impact and shock loads, Salford’s C-FLEX ensures performance tillage across any field condition. The C-Flex is built for durability, ensuring optimum operation for AerWay tillage systems.
AerWay C-Flex
Features
The AerWay C-Flex features a single roller with 4 tines per row on 7.5 in. spacing. The Quick Adjust pin system allows you to vary the roller swing angle between 0° and 10° in increments of 2.5°. This enables you to ”fine tune” your setting for aeration, renovation, overseeding or pre-working your fields, for better retention of fertilizer, liquid manure, rainfall, or irrigation. One implement that can do many jobs. The AerWay is used to get the maximum benefit out of your inputs and helps to achieve a better root system that results in higher yields.
All Ag AerWay Units allow for use of three different tine options:
Cast Shattertine (Left) – Sharper edge, easier ground penetration, wears evenly and holds shape.
Forged Shattertine (Middle)- Better in sandy or abrasive soils, durable in rocky conditions, increased blade lean, and more aggressive tillage.
Forged Leaf Tine (Right) – Creates bigger pocket in soil, 1 lbs. of extra material on blade, often used in slurry or manure incorporation.
The C-Flex Load Dampening System comes standard on the AWST and AWFT machines. This protects rollers and tines from impact and shock loads when an obstacle is struck in the field. This increases the longevity of the machine and reduces downtime for maintenance, keeping you in the field and out of the shop during the busiest seasons.
For tough ground conditions or fields that have not been aerated in the past, additional weight may be necessary to achieve desired penetration depth. The AerWay C-Flex allows for use of concrete ballast blocks which can be placed in the machine’s integrated weight trays when needed. Each machine allows for a combination of 550 lbs. and/or 750 lbs. blocks depending on the width of the machine.
The AerWay C-Flex allows for the addition of Salford’s field-proven finishing system. Adding a toolbar to the rear of machine gives the option of the manual 3 bar coil tine with single 14 in. roller or the double 14 in. roller package.
Product Specs
|
Series
|
AerWay | AerWay | AerWay | AerWay | AerWay | AerWay | AerWay |
|
Product Type
|
Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration | Agricultural Aeration |
|
Model
|
C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX | C-FLEX |
|
Size
|
12.5 ft Straight Frame | 15 ft Straight Frame | 20 ft Straight Frame | 20 ft Folding Frame | 25 ft Folding Frame | 30 ft Folding Frame | 40 ft Folding Frame |
|
Folding (Multi-Section) or Non-Folding
|
Non-Folding | Non-Folding | Non-Folding | Folding | Folding | Folding | Folding |
|
Fold Type
|
N/A | N/A | N/A | Single-Fold Wing | Single-Fold Wing | Single-Fold Wing | Single-Fold Wing |
Dimensions and Weights
|
Working width, ft (m)
|
12 ft 6 in (3.81 m) | 15 ft (4.57 m) | 20 ft (6.1 m) | 20 ft (6.1 m) | 25 ft (7.62 m) | 30 ft (9.14 m) | 40 ft (12.19 m) |
|
Transport width, ft (m)
|
13 ft (3.96 m) | 15 ft 6 in (4.72 m) | 20 ft 6 in (6.25 m) | 12 ft 6 in (3.81 m) | 12 ft 6 in (3.81 m) | 15 ft 6 in (4.72 m) | 20 ft 9 in (6.32 m) |
|
Transport height, ft (m)
|
- | 15 ft 6 in (4.72 m) | - | 11 ft (3.35 m) | 13 ft 6 in (4.11 m) | 11 ft (3.35 m) | 13 ft 6 in (4.11 m) |
|
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
|
6,620 lbs (3,003 kg) | 7,260 lbs (3,293 kg) | 8,680 lbs (3,937 kg) | 10,615 lbs (4,815 kg) | 11,980 lbs (5,434 kg) or 12,430 lbs (5,638 kg) w/ Short RLR Wings | 14,010 lbs (6,355 kg) or 14,460 lbs (6,559 kg) w/ Short RLR Wings | 25,640 lbs (11,630 kg) |
|
Other sizes available, number of widths
|
15ft, 20ft S, 20ft F, 25ft, 30ft, 40ft | 12.5ft, 20ft S, 20ft F, 25ft, 30ft, 40ft | 12.5ft, 15ft, 20ft F, 25ft, 30ft, 40ft | 12.5ft, 15ft, 20ft S, 25ft, 30ft, 40ft | 12.5ft, 15ft, 20ft S, 20ft F, 30ft, 40ft | 12.5ft, 15ft, 20ft S, 20ft F, 25ft, 40ft | 12.5ft, 15ft, 20ft S, 20ft F, 25ft, 30ft |
Ground Engaging Equipment - Front Row(s)
|
Front row(s) ground engaging equipment (description)
|
Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) | Forged ShatterTines (Leaf Tines Optional) |
|
Front row(s) ground engaging equipment (quantity)
|
4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row | 4 Tines per Row |
|
Front row(s) equipment quantity
|
80 | 96 | 128 | 128 | 160 | 192 | 256 |
|
Front row(s) equipment mount
|
C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount | C-Flex Suspension Mount |
|
Equipment spacing, in (mm)
|
7.5 in (191 mm) | 7.5 in (191 mm) | 7.5 in (191 mm) | 7.5 in (191 mm) | 7.5 in (191 mm) | 7.5 in (191 mm) | 7.5 in (191 mm) |
|
Equipment size, in (mm)
|
8 in (203 mm) | 8 in (203 mm) | 8 in (203 mm) | 8 in (203 mm) | 8 in (203 mm) | 8 in (203 mm) | 8 in (203 mm) |
|
Angle
|
0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° | 0°,2.5°, 5°,7.5°, or 10° |
|
Bearings
|
Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing | Maintenance Free Trunnion Bearing |
Ground Engaging Equipment - Rear Row(s)
|
Rear row(s) ground engaging equipment (description)
|
- | - | - | - | - | - | - |
|
Rear row(s) ground engaging equipment (quantity)
|
- | - | - | - | - | - | - |
|
Rear row(s) equipment quantity
|
- | - | - | - | - | - | - |
|
Rear row(s) equipment mount
|
- | - | - | - | - | - | - |
|
Equipment spacing, in (mm)
|
- | - | - | - | - | - | - |
|
Equipment size, in (mm)
|
- | - | - | - | - | - | - |
|
Angle
|
- | - | - | - | - | - | - |
|
Bearings
|
- | - | - | - | - | - | - |
Wheels and Tires
|
Transport wheel mounting
|
6-bolt | 6-bolt | 6-bolt or 8-bolt | 8-bolt | 8-bolt | 8 bolt | 10-bolt |
|
Transport tires
|
9.5 x 15TL Tires | 9.5 x 15TL Tires | 9.5 x 15TL Tires or 12.5 x 16TL Tires | 12.5 x 16TL Tires or 340/60 R16.5 Tires | 12.5 x 16TL Tires or 340/60 R16.5 Tires | 12.5 x 16TL Tires or 340/60 R16.5 Tires | 550/60-22.5 Tires |
|
Wing wheel mounting
|
N/A | N/A | N/A | N/A | N/A | N/A | N/A |
|
Wing tires
|
N/A | N/A | N/A | N/A | N/A | N/A | N/A |
|
Gauge wheel mounting
|
N/A | N/A | N/A | N/A | N/A | N/A | N/A |
|
Guage wheel tires
|
N/A | N/A | N/A | N/A | N/A | N/A | N/A |
Hitch
|
Hookup to tractor, mounted or pull-type
|
CAT 3 std (CAT 4 optional), Pull-Type | CAT 3 std (CAT 4 optional), Pull-Type | CAT 3 std (CAT 4 optional), Pull-Type | CAT 3 std (CAT 4 optional), Pull-Type | CAT 3 std (CAT 4 optional), Pull-Type | CAT 3 std (CAT 4 optional), Pull-Type | CAT 4/5, Pull-Type |
Depth and Level Adjustment
|
Typical operating depth, in (mm)
|
Up to 8 in (203 mm) | Up to 8 in (203 mm) | Up to 8 in (203 mm) | Up to 8 in (203 mm) | Up to 8 in (203 mm) | Up to 8 in (203 mm) | Up to 8 in (203 mm) |
|
Operating speed (mph)
|
7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) | 7-10 mph (12-17 kph) |
|
Depth control
|
- | - | - | - | - | - | - |
|
Fore/aft leveling
|
- | - | - | - | - | - | - |
Tractor Requirements
|
Required power, hp/ft (kw/m)
|
7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) | 7-10 hp/ft (15-21 kW/m) |
|
Remote Hydraulic Values required
|
- | - | - | 1 | 1 | 1 | 1 |
|
Hydraulic Pressure
|
- | - | - | - | - | - | - |
Finishing Attachments and Options
|
Option 1
|
3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller | 3 bar coil tine and single 14" roller |
|
Option 2
|
Double 14" rollers | Double 14" rollers | Double 14" rollers | Double 14" rollers | Double 14" rollers | Double 14" rollers | Double 14" rollers |
|
Option 3
|
- | - | - | - | - | - | - |
|
Option 4
|
- | - | - | - | - | - | - |
|
Equipment Options
|
- | - | - | - | - | - | - |
