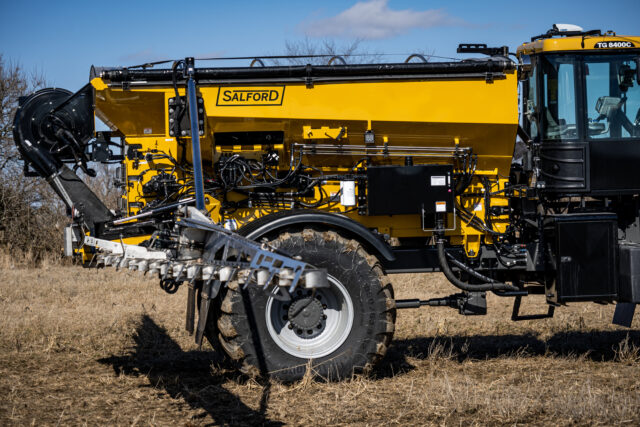

6700 AGCO Salford’s next-generation air boom applicator offers versatility, precision application and efficiency all in one complete package. Featuring Salford’s Valmar air boom technology, this self-propelled chassis mounted air boom offers a 90-foot application width with one of the largest hoppers on the market. This design offers greater capacity for fewer fill-ups, an easy-to-operate metering system and the most advanced air boom system available on the market today. The 6700 is ideal for broadcast application of granular fertilizer, granular chemicals, cover crops and micro-nutrients.
AB300AF Applicator for AGCO Floaters
Features
The new 6700 model is capable of applying one, two or three products at once with various hopper configurations. Empty hoppers can be adjusted in seconds with no tools or bin inserts required.
The hoppers are made out of 409 stainless steel and can be painted to match your chassis.
Salford’s latest 6700 model features Valmar’s Venturi metering design with proven reliability and simple maintenance. Set up for Raven® RCM, you can reduce application overlap and save on input costs with variable rate application and left / right section control.
Compartments 1 and 2 are equipped with 304 stainless steel conveyors and the micro hopper uses a metering roller system to help accurately apply micro-nutrients, cover crops or granular herbicides while fertilizer is metered from the main hoppers.

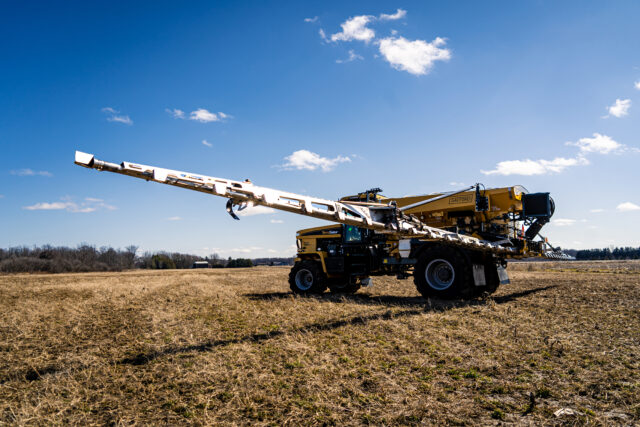

The 90-foot, bi-fold booms are built with 304 stainless steel and spring-protected break-away tips. Hydraulic boom suspension allows for greater in-field stability at higher operating speeds. The optional Raven UltraGlide AutoBoom® system can be added and calibrated to provide worry-free operation of the boom controls.
Product Specs
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Series
|
Valmar | Valmar |
|
Product type
|
Chassis Mount Air Boom Applicators | Chassis Mount Air Boom Applicators |
|
Model
|
AB300AFM | AM300AF2M |
|
Size
|
300 cu-ft | 300 cu-ft |
Dimensions and Weights
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Working width, ft (m)
|
90 ft (27.43 m) | 90 ft (27.43 m) |
|
Transport width, ft (m)
|
- | - |
|
Transport height, ft (m)
|
7.5 ft (2.286 m) Unmounted | 7.5 ft (2.286 m) Unmounted |
|
Approximate weight, lb (kg)
|
13,000 lbs (5,896.7 kg) | 13,000 lbs (5,896.7 kg) |
|
Other sizes available, number of capacities
|
- | - |
Materials Spread
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Fertilizer
|
YES | YES |
|
AG Lime
|
NO | NO |
|
Litter
|
NO | NO |
|
Organics
|
NO | NO |
|
Seed
|
YES | YES |
|
Other
|
Granular Herbicide | Granular Herbicide |
|
Number of products applied, including optional hopper compartments
|
2 | 3 |
Hopper
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Hopper Size
|
300 cubic foot compartment hopper |
300 cubic foot 2 compartment hopper |
|
Hopper Material
|
Standard: 409 Stainless Steel, Painted |
Standard: 409 Stainless Steel, Painted |
|
Hopper Extensions
|
N/A |
N/A |
|
Hopper Gate Control
|
N/A |
N/A |
|
Hopper Ladder
|
Front ladder & platform |
Front ladder & platform |
|
Hopper "Inverted V"
|
Yes |
Yes |
|
Hopper Sight Window
|
Yes |
Yes |
Metering and Drive
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product | |
|
PTO Drive
|
Chassis Supplied |
Chassis Supplied |
|
|
Material Distribution Booms/Spinners/Air Line
|
90 foot spread / 304 stainless steel |
90 foot spread / 304 stainless steel |
|
|
Application Swath Width, ft (m)
|
90 ft (27.43 m) |
90 ft (27.43 m) |
|
|
Material Distribution Drive
|
10 inch Crary fan impellor with pwm control |
10 inch Crary fan impellor with pwm control |
|
|
Metering Drive
|
Hydrualic driven metering |
Hydrualic driven metering |
|
|
Primary Metering
|
Dual, independently driven 16″ 304 stainless steel mesh chain conveyors (1 LH & 1 RH) |
Dual, independently driven 16″ 304 stainless steel mesh chain conveyors (1 LH & 1 RH) |
|
|
Primary Metering Minimum Output Rate
|
75 lbs/acre* at 10 mph, 65 lbs/cu-ft |
|
|
|
Primary Metering Maximum Output Rate
|
1200 lbs/acre* at 10 mph, 65 lbs/cu-ft |
|
|
|
Secondary Metering
|
Optional: Roller Meter System for Micro-Nutrient Compartment |
|
|
|
Secondary Metering Minimum Output Rate
|
- | - | |
|
Secondary Metering Maximum Output Rate
|
- | - | |
|
Material Banding or Section Control
|
Left/Right |
Left/Right |
Tires and Axles
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Transport wheel mounting
|
N/A | N/A |
|
Transport tires
|
N/A | N/A |
Hitch
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Hookup to tractor, mounted or pull-type
|
N/A | N/A |
|
Jack
|
N/A | N/A |
Tractor Requirements
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Required power, hp (kw)
|
- | - |
|
Remote Hydraulic Values required
|
- | - |
|
Hydraulic Pressure
|
- | - |
Monitoring and Precision Control
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Monitors Options and Rate Control
|
- | - |
|
Weigh System Option
|
- | - |
Other Equipment Options
| Model & Size | 300 cu-ft single product | 300 cu-ft dual product |
|
Option 1
|
Paint: Yellow | Paint: Yellow |
|
Option 2
|
Standard: No Tarp Optional: Electric Tarp | Standard: No Tarp Optional: Electric Tarp |
|
Option 3
|
Transport lighting and external LED work lights | Transport lighting and external LED work lights |
|
Option 4
|
- | - |
|
Equipment Options
|
- | - |
Compare
Select up to 3 products to compare specifications
AB300AF Applicator for AGCO Floaters
Add Model & Size
Choose Model & SizeProduct Specs
| Model & Size | 300 cu-ft single product | |||
|
Series
|
Valmar | |||
|
Product type
|
Chassis Mount Air Boom Applicators | |||
|
Model
|
AB300AFM | |||
|
Size
|
300 cu-ft |
Dimensions and Weights
| Model & Size | 300 cu-ft single product | |||
|
Working width, ft (m)
|
90 ft (27.43 m) | |||
|
Transport width, ft (m)
|
- | |||
|
Transport height, ft (m)
|
7.5 ft (2.286 m) Unmounted | |||
|
Approximate weight, lb (kg)
|
13,000 lbs (5,896.7 kg) | |||
|
Other sizes available, number of capacities
|
- |
Materials Spread
| Model & Size | 300 cu-ft single product | |||
|
Fertilizer
|
YES | |||
|
AG Lime
|
NO | |||
|
Litter
|
NO | |||
|
Organics
|
NO | |||
|
Seed
|
YES | |||
|
Other
|
Granular Herbicide | |||
|
Number of products applied, including optional hopper compartments
|
2 |
Hopper
| Model & Size | 300 cu-ft single product | |||
|
Hopper Size
|
300 cubic foot compartment hopper |
|||
|
Hopper Material
|
Standard: 409 Stainless Steel, Painted |
|||
|
Hopper Extensions
|
N/A |
|||
|
Hopper Gate Control
|
N/A |
|||
|
Hopper Ladder
|
Front ladder & platform |
|||
|
Hopper "Inverted V"
|
Yes |
|||
|
Hopper Sight Window
|
Yes |
Metering and Drive
| Model & Size | 300 cu-ft single product | |||
|
PTO Drive
|
Chassis Supplied |
|||
|
Material Distribution Booms/Spinners/Air Line
|
90 foot spread / 304 stainless steel |
|||
|
Application Swath Width, ft (m)
|
90 ft (27.43 m) |
|||
|
Material Distribution Drive
|
10 inch Crary fan impellor with pwm control |
|||
|
Metering Drive
|
Hydrualic driven metering |
|||
|
Primary Metering
|
Dual, independently driven 16″ 304 stainless steel mesh chain conveyors (1 LH & 1 RH) |
|||
|
Primary Metering Minimum Output Rate
|
75 lbs/acre* at 10 mph, 65 lbs/cu-ft |
|||
|
Primary Metering Maximum Output Rate
|
1200 lbs/acre* at 10 mph, 65 lbs/cu-ft |
|||
|
Secondary Metering
|
Optional: Roller Meter System for Micro-Nutrient Compartment |
|||
|
Secondary Metering Minimum Output Rate
|
- | |||
|
Secondary Metering Maximum Output Rate
|
- | |||
|
Material Banding or Section Control
|
Left/Right |
Tires and Axles
| Model & Size | 300 cu-ft single product | |||
|
Transport wheel mounting
|
N/A | |||
|
Transport tires
|
N/A |
Hitch
| Model & Size | 300 cu-ft single product | |||
|
Hookup to tractor, mounted or pull-type
|
N/A | |||
|
Jack
|
N/A |
Tractor Requirements
| Model & Size | 300 cu-ft single product | |||
|
Required power, hp (kw)
|
- | |||
|
Remote Hydraulic Values required
|
- | |||
|
Hydraulic Pressure
|
- |
Monitoring and Precision Control
| Model & Size | 300 cu-ft single product | |||
|
Monitors Options and Rate Control
|
- | |||
|
Weigh System Option
|
- |
Other Equipment Options
| Model & Size | 300 cu-ft single product | |||
|
Option 1
|
Paint: Yellow | |||
|
Option 2
|
Standard: No Tarp Optional: Electric Tarp | |||
|
Option 3
|
Transport lighting and external LED work lights | |||
|
Option 4
|
- | |||
|
Equipment Options
|
- |
Specification Details & Conditions:
Specifications are subject to change without notice. All weights, dimensions, and other specification values listed are for standard equipment. Optional features, configurations, and machine settings may alter these values, including transport dimensions. Where specifications vary by equipment setting, the minimum value will be used unless otherwise stated. For the most accurate and up-to-date information, please contact your dealer or our customer support team.
