AB320AF Applicator for AGCO Floaters

Features

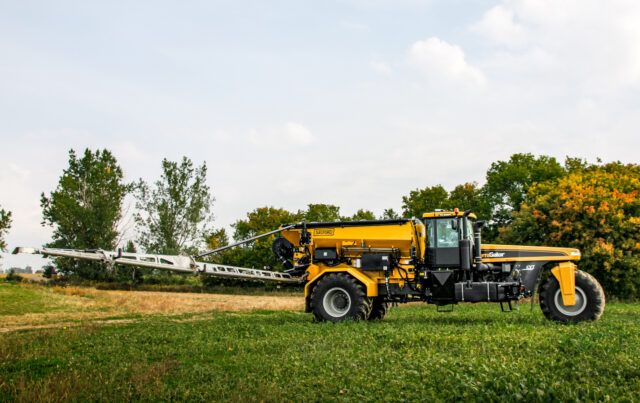

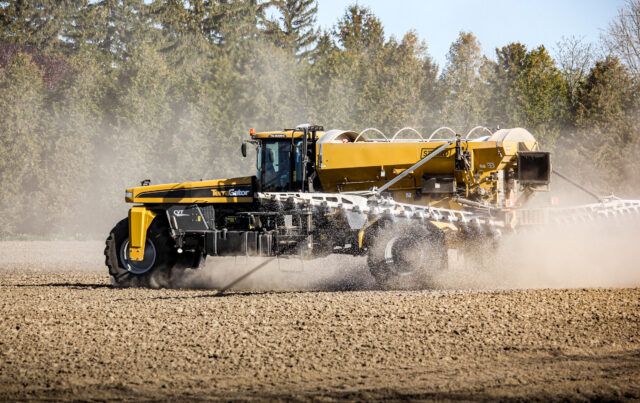

6700 AGCO Salford’s next-generation air boom applicator offers versatility, precision application and efficiency all in one complete package. Featuring Salford’s Valmar air boom technology, this self-propelled chassis mounted air boom offers a 90-foot application width with one of the largest hoppers on the market. This design offers greater capacity for fewer fill-ups, an easy-to-operate metering system and the most advanced air boom system available on the market today. The 6700 is ideal for broadcast application of granular fertilizer, granular chemicals, cover crops and micro-nutrients.

AB320AF Hopper ConfigurationsThe new 6700 model is capable of applying one, two or three products at once with various hopper configurations. Empty hoppers can be adjusted in seconds with no tools or bin inserts required.

The hoppers are made out of 409 stainless steel and can be painted to match your chassis.

AGCO AB320AF Metering SystemSalford’s latest 6700 model features Valmar’s Venturi metering design with proven reliability and simple maintenance. Set up for Raven® RCM, you can reduce application overlap and save on input costs with variable rate application and left / right section control.

Compartments 1 and 2 are equipped with 304 stainless steel conveyors and the micro hopper uses a metering roller system to help accurately apply micro-nutrients, cover crops or granular herbicides while fertilizer is metered from the main hoppers.

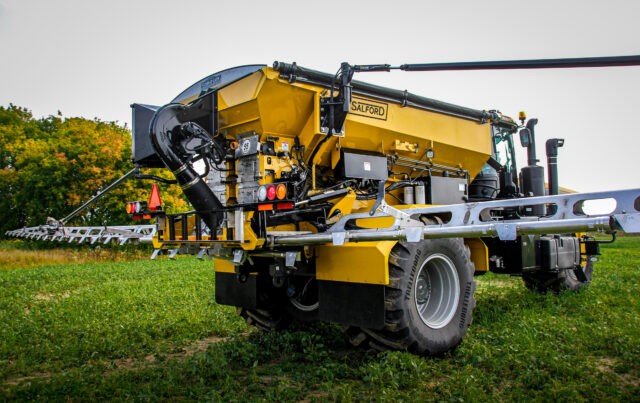

AGCO AB320AF Boom ProtectionThe 90-foot, bi-fold booms are built with 304 stainless steel and spring-protected break-away tips. Hydraulic boom suspension allows for greater in-field stability at higher operating speeds. The optional Raven UltraGlide AutoBoom® system can be added and calibrated to provide worry-free operation of the boom controls.

Product Specs

Series
Valmar
Size
320 cu-ft
Product type
Chassis Mount Air Boom Applicators
Model Name Short
AB320AF
Model Name Long
AB320AF Applicator for AGCO Floaters

Materials Spread

Fertilizer
Yes
AG Lime
No
Litter
No
Organics
No
Seed
Yes
Other
Granular Herbicide
Number of products applied, including optional hopper compartments
3

Detailed Equipment Specifications

Paint

Yellow

Hitch

N/A

Jack
N/A
Tarp

Standard: No Tarp
Option: Electric Tarp

Tail Light

Transport lighting and external LED work lights

Height
90" Unmounted
Weight
13,000 lbs

Hopper

Hopper Size

320 cubic foot 3 compartment hopper
50/50, 60/40, 10/30/60, 10/40/50 hopper split*
*ratios are not exact

Hopper Material

Standard: 409 Stainless Steel, Painted

Hopper Extensions

N/A

Hopper Gate Control

N/A

Hopper Ladder

∙ Front ladder & platform
∙ 2nd hideaway maintenance ladder

Hopper "Inverted V"

Yes

Hopper Sight Window

Yes

Metering and Drive

PTO Drive

Chassis Supplied

Material Distribution Booms/Spinners/Air Line

∙ 90 foot spread / 304 stainless steel
∙ Hydraulic boom suspension w/accumulator
∙ 7 foot breakaway tips – hydraulic fold
∙ Integrated controls
∙ Hydraulic independent RH and LH fold

Application Swath Width

90 feet

Material Distribution Drive

10 inch Crary fan impellor with pwm control

Metering Drive

Hydrualic driven metering

Primary Metering

Dual, independently driven 16″ 304 stainless steel mesh chain conveyors (1 LH & 1 RH)

Primary Metering Minimum Output Rate

75 lbs/acre* at 10 mph, 65 lbs/cu-ft

Primary Metering Maximum Output Rate

1200 lbs/acre* at 10 mph, 65 lbs/cu-ft

Secondary Metering

Optional: Roller Meter System for Micro-Nutrient Compartment

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

Left/Right

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
