Features

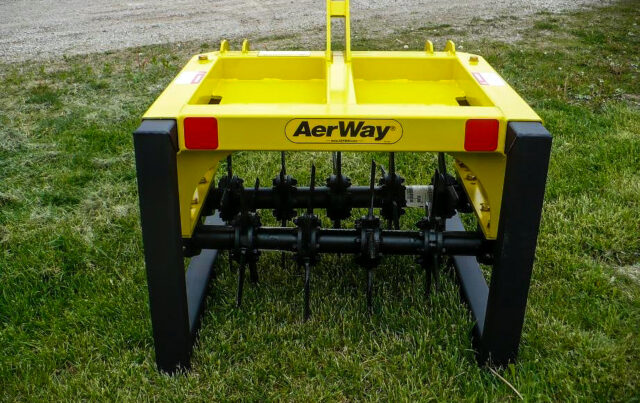

Designed for orchards and vineyards, Salford’s AerWay family of AWV3 Models are designed to cultivate and aerate to eliminate soil compaction, without destroying the soil structure. The AerWay’s multi-function design supports production by combating soil compaction, improving moisture retention, reducing runoff and enhancing soil conditions. The AWV3 advanced aeration series are ideal for navigating the unique landscapes of orchards and vineyards, and feature compact dimensions for vine clearance and tractor compatibility and beveled front corners to deflect vines.

Salford's AerWay Shattertine used for aerating roughs, fairways, tees and sports fields.
Salford’s AerWay Shattertine used for aerating roughs, fairways, tees and sports fields.

SHATTERTINE® – Patented AerWay® Shattertines® lift and fracture tough soil to increase air, water and nutrient movement. Moving over the surface of the ground, the unique angles and offsets of the Shattertines crack and shatter compacted soil 7 inches and deeper, resulting in increased water percolation, microbial activity and fertilizer utilization. Plants respond with stronger root systems and healthier top growth.

Product Specs

Series
AerWay
Product Type
Agricultural Aeration
Model
AWV3
Size
56 in
Folding (Multi-Section) or Non-Folding
Non-folding
Fold Type
N/A

Dimensions and Weights

Working width, ft (m)
56 in
Transport width, ft (m)
56 in
Transport height, ft (m)
12 ft 5 in w/ Rollers Ext. or 13 ft 6 in w/ Rollers Ret.
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
750 lbs
Other sizes available, number of widths
-

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Smooth Low Concavity Blades
Front row(s) ground engaging equipment (quantity)
1
Front row(s) equipment quantity
24
Front row(s) equipment mount
4pc rubber torsion suspension
Equipment spacing, in (mm)
10 in
Equipment size, in (mm)
22 in
Angle
14° open angle and 4° tipped under angle
Bearings
Multi-lip sealed, maintenance free rebuildable hubs

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Notched Low Concavity Blades
Rear row(s) ground engaging equipment (quantity)
-
Rear row(s) equipment quantity
24
Rear row(s) equipment mount
4pc rubber torsion suspension
Equipment spacing, in (mm)
10 in
Equipment size, in (mm)
22 in
Angle
17° open angle and 4° tipped under angle
Bearings
Multi-lip sealed, maintenance free rebuildable hubs
Equipment options
-

Wheels and Tires

Transport wheel mounting
10-bolt
Transport tires
600/50-22.5 Tires
Wing wheel mounting
N/A
Wing tires
N/A
Gauge wheel mounting
N/A
Guage wheel tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
2-5 in
Operating speed (mph)
8-14 mph
Depth control
Single point depth control
Fore/aft leveling
-

Tractor Requirements

Required power, hp/ft (kw/m)
12-18 hp/ft
Remote Hydraulic Values required
4
Hydraulic Pressure
-

Finishing Attachment Options

Option 1
Cage Roller
Option 2
Otico Wave-Profile FarmFlex Roller
Option 3
-
Option 4
-

Compare

Select up to 3 products to compare specifications

AerWay AWV

Add Model & Size

Choose Model & Size

Product Specs

Series
AerWay
Product Type
Agricultural Aeration
Model
AWV3
Size
56 in
Folding (Multi-Section) or Non-Folding
Non-folding
Fold Type
N/A

Dimensions and Weights

Working width, ft (m)
56 in
Transport width, ft (m)
56 in
Transport height, ft (m)
12 ft 5 in w/ Rollers Ext. or 13 ft 6 in w/ Rollers Ret.
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
750 lbs
Other sizes available, number of widths
-

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Smooth Low Concavity Blades
Front row(s) ground engaging equipment (quantity)
1
Front row(s) equipment quantity
24
Front row(s) equipment mount
4pc rubber torsion suspension
Equipment spacing, in (mm)
10 in
Equipment size, in (mm)
22 in
Angle
14° open angle and 4° tipped under angle
Bearings
Multi-lip sealed, maintenance free rebuildable hubs

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Notched Low Concavity Blades
Rear row(s) ground engaging equipment (quantity)
-
Rear row(s) equipment quantity
24
Rear row(s) equipment mount
4pc rubber torsion suspension
Equipment spacing, in (mm)
10 in
Equipment size, in (mm)
22 in
Angle
17° open angle and 4° tipped under angle
Bearings
Multi-lip sealed, maintenance free rebuildable hubs
Equipment options
-

Wheels and Tires

Transport wheel mounting
10-bolt
Transport tires
600/50-22.5 Tires
Wing wheel mounting
N/A
Wing tires
N/A
Gauge wheel mounting
N/A
Guage wheel tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
2-5 in
Operating speed (mph)
8-14 mph
Depth control
Single point depth control
Fore/aft leveling
-

Tractor Requirements

Required power, hp/ft (kw/m)
12-18 hp/ft
Remote Hydraulic Values required
4
Hydraulic Pressure
-

Finishing Attachment Options

Option 1
Cage Roller
Option 2
Otico Wave-Profile FarmFlex Roller
Option 3
-
Option 4
-
