Cricket Vineyard Spinner Spreader

Application • Pull Type Spinner Spreaders

Features

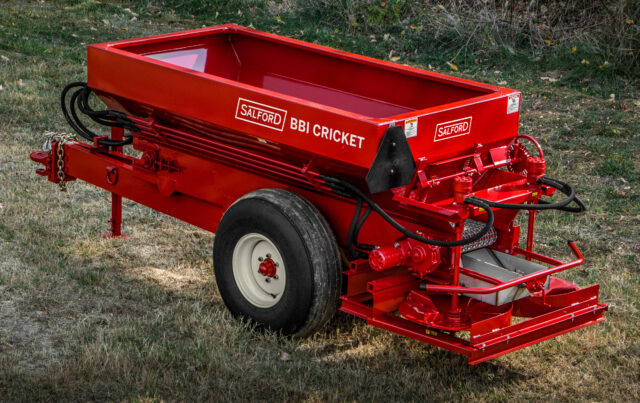

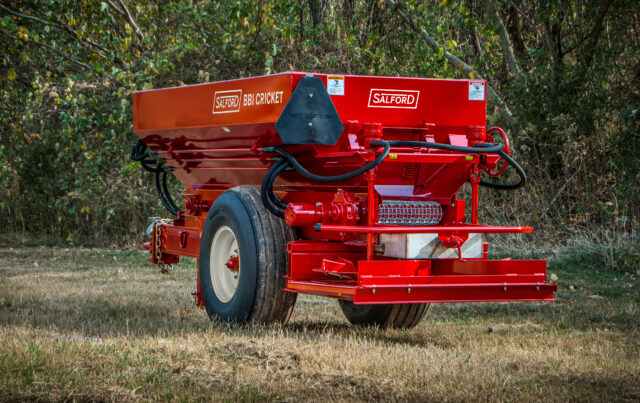

Salford’s BBI Cricket Vineyard or Orchard spreader was developed for vineyards, orchards, and small farms with affordability and performance in mind. This dependable tool is ideal for spreading fertilizer, lime and compost and easily clears low overhanging limbs. Built on a heavy-duty, 12,000-pound axle, Cricket provides precision coverage while effectively managing any rough terrain it may encounter. The reversible wheels allow a 50’ or 60’ track to accommodate most vineyards. With 2–3 ton (64 cubic feet, struck) capacity, this spreader features wide floatation tires to minimize compaction and can be pulled with a low horsepower tractor.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• Overhead mounted spinner motors
• Stainless steel spinners, fins and spread shield
• Banding attachment on spinners
• 8′ stainless steel hopper (48″ wide – 63.5 cu-ft struck)
• 16″ stainless steel mesh chain conveyor
• UHMW comb cover
• 7,000 lb rigid axle with 14L implement tires, 6-bolt hubs
• 15″ axle ground clearance, 13″ clearance under spinners
• Compatible with most aftermarket rate controllers

Contact Us Form

"*" indicates required fields

First Name * Last Name *

Phone Number*

Email*

State/Provice*

Postal code*

How can we help you?*

Salford Model Line

Message to Salford

Comments

This field is for validation purposes and should be left unchanged.

Specs Compare

Product Specs

Series	BBI
Size	63.5 cu-ft
Product type	Pull Type Spinner Spreaders
Model Name Short	Cricket
Model Name Long	CRICKET: Vineyard / Orchard Spreader
Materials Spread
Fertilizer	YES
AG Lime	YES
Litter	NO
Organics	YES
Seed	No
Other	-
Number of products applied, including optional hopper compartments	1
Detailed Equipment Specifications
Paint	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)
Hitch	Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch
Jack	Heavy-duty tongue jack
Tarp	No Tarp – STANDARD 8′ Box Type Tarp w Bow (Vinyl)
Tail Light	Standard: No Tail Lights Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit
Height	-
Weight	-
Hopper
Hopper Size	8′ hopper 63.5 cu-ft
Hopper Material	Choice: 409 Stainless Steel, Painted Choice: 304 Stainless Steel
Hopper Extensions	N/A
Hopper Gate Control	Jack Operated Gate
Hopper Ladder	Standard: No Hopper Ladder Optional: Ladder for Carbon Steel Hopper
Hopper "Inverted V"	N/A
Hopper Sight Window	N/A
Metering and Drive
PTO Drive	Choice for self contained models only: 540 RPM Series 6 CV Joint PTO Shaft 1000 RPM Series 6 CV 1 3/4 20 Spline 1000 RPM Series 6 CV 1 3/8 21 Spline
Material Distribution Booms/Spinners/Air Line	Stainless steel spinners, fins and spread shield
Application Swath Width	Fert: Up to 20 feet
Material Distribution Drive	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics
Metering Drive	Standard: Plug to tractor
Primary Metering	16″ stainless steel mesh chain conveyor
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	Standard: Banding Attachment Optional: 4′ Banding Conveyor with Belt in lieu of Spinners Optional: 4′ Banding Conveyor (Belt) in addition to Spinners
Tires and Axles
Axle	-
Tire and Wheel Options	-
Monitoring and Precision Control
Monitors Options and Rate Control	-
Weigh System Option	-
