Salford’s BBI Cricket Vineyard or Orchard spreader was developed for vineyards, orchards, and small farms with affordability and performance in mind. This dependable tool is ideal for spreading fertilizer, lime and compost and easily clears low overhanging limbs. Built on a heavy-duty, 7,000-pound axle, Cricket provides precision coverage while effectively managing any rough terrain it may encounter. The reversible wheels allow a 50″ or 60″ track to accommodate most vineyards or orchards. With 2–3 ton (63.5 cubic feet, struck) capacity, this spreader features 14L implement tires to minimize compaction and can be pulled with a low horsepower tractor.

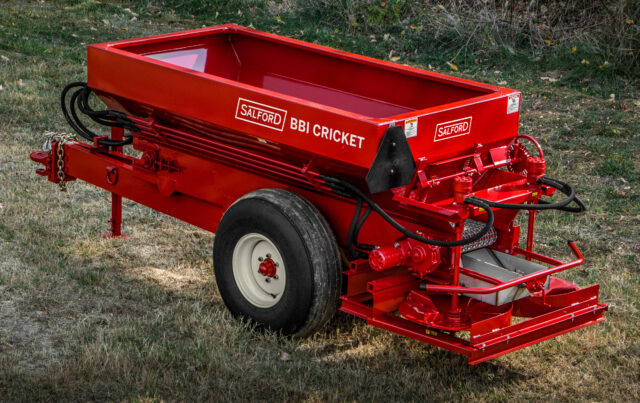

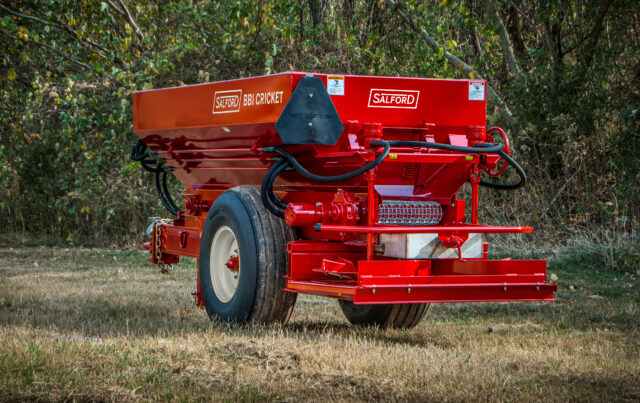

Cricket Vineyard Spinner Spreader
Features
• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• Overhead mounted spinner motors
• Stainless steel spinners, fins and spread shield
• Banding attachment on spinners
• 8′ stainless steel hopper (48″ wide – 63.5 cu-ft struck)
• 16″ stainless steel mesh chain conveyor
• UHMW comb cover
• 7,000 lb rigid axle with 14L implement tires, 6-bolt hubs
• 15″ axle ground clearance, 13″ clearance under spinners
• Compatible with most aftermarket rate controllers
Product Specs
|
Series
|
BBI |
|
Product type
|
Pull Type Spinner Spreaders |
|
Model
|
Cricket |
|
Size
|
63.5 cu-ft (1.80 cu-m) |
Dimensions and Weights
|
Working width, ft (m)
|
- |
|
Transport width, ft (m)
|
- |
|
Transport height, ft (m)
|
- |
|
Approximate weight, lb (kg)
|
- |
|
Other sizes available, number of capacities
|
- |
Materials Spread
|
Fertilizer
|
YES |
|
AG Lime
|
YES |
|
Litter
|
NO |
|
Organics
|
YES |
|
Seed
|
NO |
|
Other
|
- |
|
Number of products applied, including optional hopper compartments
|
1 |
Hopper
|
Hopper Size
|
8 ft (2.44 m) hopper 63.5 cu-ft (1.80 cu-m) |
|
Hopper Material
|
Choice: 409 Stainless Steel, Painted |
|
Hopper Extensions
|
N/A |
|
Hopper Gate Control
|
Rack and Pinion |
|
Hopper Ladder
|
Standard: No Hopper Ladder |
|
Hopper "Inverted V"
|
N/A |
|
Hopper Sight Window
|
Standard Sight Window |
Metering and Drive
|
PTO Drive
|
Standard: |
|
Material Distribution Booms/Spinners/Air Line
|
Stainless steel spinners, fins and spread shield |
|
Application Swath Width, ft (m)
|
Fert: Up to 20 feet (6.10 m) |
|
Material Distribution Drive
|
Standard: Self Contained PTO Hydraulics |
|
Metering Drive
|
Standard: Self-Contained PTO or Plug to Tractor |
|
Primary Metering
|
16 inch stainless steel mesh chain conveyor |
|
Primary Metering Minimum Output Rate
|
- |
|
Primary Metering Maximum Output Rate
|
- |
|
Secondary Metering
|
N/A |
|
Secondary Metering Minimum Output Rate
|
- |
|
Secondary Metering Maximum Output Rate
|
- |
|
Material Banding or Section Control
|
Standard: Banding Attachment |
Tires and Axles
|
Transport wheel mounting
|
7,000 lbs rigid axle |
|
Transport tires
|
14L Implement Tires, 6 bolt hubs |
Hitch
|
Hookup to tractor, mounted or pull-type
|
Pull-Type - Standard: CAT 3 Cast Hitch - includes Pintle and Clevis Hitch |
|
Jack
|
Heavy-duty tongue jack |
Tractor Requirements
|
Required power, hp (kw)
|
30-40 hp ( 22.37 - 29.8 kW) |
|
Remote Hydraulic Values required
|
- |
|
Hydraulic Pressure
|
- |
Monitoring and Precision Control
|
Monitors Options and Rate Control
|
Standard Rate Control Ready |
|
Weigh System Option
|
N/A |
Other Equipment Options
|
Option 1
|
Paint Options: Standard: Red Optional: Green, Grey or Black Accent Parts (304 SS) |
|
Option 2
|
Standard: No Trap Optional: 8 foot Box Type Tarp with Bow (Vinyl) |
|
Option 3
|
- |
|
Option 4
|
- |
|
Equipment Options
|
- |
Compare
Select up to 3 products to compare specifications
Cricket Vineyard Spinner Spreader
Add Model & Size
Choose Model & SizeProduct Specs
|
Series
|
BBI | |||
|
Product type
|
Pull Type Spinner Spreaders | |||
|
Model
|
Cricket | |||
|
Size
|
63.5 cu-ft (1.80 cu-m) |
Dimensions and Weights
|
Working width, ft (m)
|
- | |||
|
Transport width, ft (m)
|
- | |||
|
Transport height, ft (m)
|
- | |||
|
Approximate weight, lb (kg)
|
- | |||
|
Other sizes available, number of capacities
|
- |
Materials Spread
|
Fertilizer
|
YES | |||
|
AG Lime
|
YES | |||
|
Litter
|
NO | |||
|
Organics
|
YES | |||
|
Seed
|
NO | |||
|
Other
|
- | |||
|
Number of products applied, including optional hopper compartments
|
1 |
Hopper
|
Hopper Size
|
8 ft (2.44 m) hopper 63.5 cu-ft (1.80 cu-m) |
|||
|
Hopper Material
|
Choice: 409 Stainless Steel, Painted |
|||
|
Hopper Extensions
|
N/A |
|||
|
Hopper Gate Control
|
Rack and Pinion |
|||
|
Hopper Ladder
|
Standard: No Hopper Ladder |
|||
|
Hopper "Inverted V"
|
N/A |
|||
|
Hopper Sight Window
|
Standard Sight Window |
Metering and Drive
|
PTO Drive
|
Standard: |
|||
|
Material Distribution Booms/Spinners/Air Line
|
Stainless steel spinners, fins and spread shield |
|||
|
Application Swath Width, ft (m)
|
Fert: Up to 20 feet (6.10 m) |
|||
|
Material Distribution Drive
|
Standard: Self Contained PTO Hydraulics |
|||
|
Metering Drive
|
Standard: Self-Contained PTO or Plug to Tractor |
|||
|
Primary Metering
|
16 inch stainless steel mesh chain conveyor |
|||
|
Primary Metering Minimum Output Rate
|
- | |||
|
Primary Metering Maximum Output Rate
|
- | |||
|
Secondary Metering
|
N/A |
|||
|
Secondary Metering Minimum Output Rate
|
- | |||
|
Secondary Metering Maximum Output Rate
|
- | |||
|
Material Banding or Section Control
|
Standard: Banding Attachment |
Tires and Axles
|
Transport wheel mounting
|
7,000 lbs rigid axle | |||
|
Transport tires
|
14L Implement Tires, 6 bolt hubs |
Hitch
|
Hookup to tractor, mounted or pull-type
|
Pull-Type - Standard: CAT 3 Cast Hitch - includes Pintle and Clevis Hitch | |||
|
Jack
|
Heavy-duty tongue jack |
Tractor Requirements
|
Required power, hp (kw)
|
30-40 hp ( 22.37 - 29.8 kW) | |||
|
Remote Hydraulic Values required
|
- | |||
|
Hydraulic Pressure
|
- |
Monitoring and Precision Control
|
Monitors Options and Rate Control
|
Standard Rate Control Ready |
|||
|
Weigh System Option
|
N/A |
Other Equipment Options
|
Option 1
|
Paint Options: Standard: Red Optional: Green, Grey or Black Accent Parts (304 SS) | |||
|
Option 2
|
Standard: No Trap Optional: 8 foot Box Type Tarp with Bow (Vinyl) | |||
|
Option 3
|
- | |||
|
Option 4
|
- | |||
|
Equipment Options
|
- |
