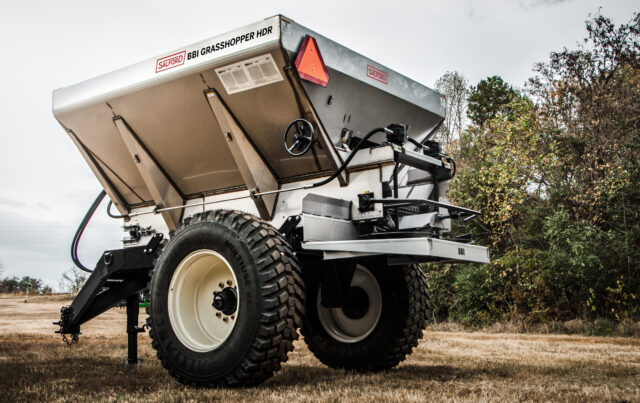

Grasshopper HDR Spinner Spreader

Features

The Grasshopper hydraulic pull-type spreader is the original mid-season, top-dress applicator from Salford. Designed to hold 5 tons of fertilizer or 7 tons of lime, this machine delivers the nutrients your emergent crop needs to maximize yield potential.
With high ground-clearance for row cropping and top dressing and flotation tires to minimizing soil compaction, this spreader achieves precision application in both row crop and sod/turf farm environments. The Grasshopper is built for durability and precision, featuring ground-wheel-drive mechanics, and the original Salford spreader system for a consistently wider, flatter spread pattern.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• Self-contained hydraulics driven by Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Stainless steel spinners, fins and spread shield
• 10′ Stainless steel hopper
• 12-Ton rigid, high-clearance axle with 11.25 x 28 ribbed implement row crop tires
• Heavy-duty tongue jack
• Spreader pan test kit

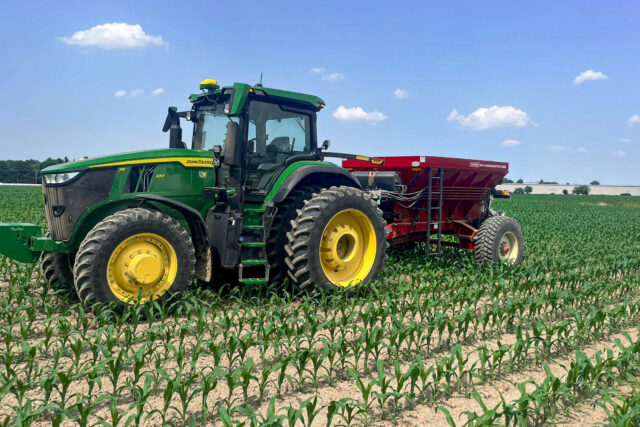

BBI Grasshopper in fieldPrecision, power, performance. Spreads lime at up to 2 tons per acre at 14 mph with a 60-foot swath, spreads fertilizer at 80-foot-plus swaths. Optimized for medium-capacity applications, for turf farms, pastures, and row crops. High clearance straddles rows. Equipped with Salford BBI’s Binary Manifold, making connections to your precision agriculture electronics a snap.

BBI Grasshopper in fieldBBI Grasshopper HDR is the ultimate combination of power, precision, and performance, delivering unparalleled efficiency in the field. We call it cost-in-use—a combination of measures like the amount of fuel material and fuel you save from hitting your targets better with each nutrient application. There’s nothing like having greater control over the profitability of your business, and Grasshopper HDR is built to be your partner for increasing yield while cutting costs.

BBI Grasshopper in fieldPart of Salford BBI’s commitment to precision farming, all hydraulic models arrive in the field standard equipped with two proprietary technology pieces: the Binary Manifold and the Task Command System. The Binary Manifold, Salford BBI’s ISOBUS-ready platform, enables snap connections to all major precision agriculture platforms, while the Task Command System is our own precision agriculture combination pack, featuring a virtual terminal and software applications that include guidance and variable-rate application capabilities.

Product Specs

Series
BBI
Size
200 cu-ft capacity, 220 cu-ft capacity
Product type
Pull Type Spinner Spreaders
Model Name Short
Grasshopper HDR
Model Name Long
Grasshopper, Hydraulic, 9' Single Axle Spreader

Materials Spread

Fertilizer
YES
AG Lime
YES
Litter
NO
Organics
NO
Seed
No
Other
-
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Hitch

Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch
Optional: Cat 4 Articulating Hitch

Jack
Heavy-duty tongue jack
Tarp

Standard: No Tarp
Option: Tarp for hopper with aluminum end caps
Option: Tarp for hopper with stainless steel end caps

Tail Light

Standard: No Tail Lights
Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit

Height
87"
Weight
-

Hopper

Hopper Size

10′ Standard Body Hopper – 200 cu-ft capacity

Hopper Material

Choice: 409 Stainless Steel, Painted
Choice: 304 Stainless Steel

Hopper Extensions

N/A

Hopper Gate Control

Jack Operated Gate

Hopper Ladder

Standard: No Hopper Ladder
Optional: Ladder for Carbon Steel Hopper
Optional: Ladder for Stainless Steel Hopper

Hopper "Inverted V"

Optional

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD
Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD
Choice: Tractor Supplied Hydraulics – Req 46 GPM total – 2300 PSI; 2 Remotes@ 23 GPM each; Zero pressure case return

Material Distribution Booms/Spinners/Air Line

Stainless steel spinners, fins and spread shield

Application Swath Width

Lime: Up to 60 feet Fert: Up to 80 feet

Material Distribution Drive

Standard:PTO Driven Spinners
Optional: Hydraulic Plug-To-Tractor Spinners (Plug-To-Tractor), requires 21 GPM @ 2000 PSI
Optional: HY TORQUE Manifold **For use with standard hydraulics only**
Two speed / Manually operated to handle HIGH Rates, Weight and Speeds.

Metering Drive

Standard: Tandem Gearcase
Optional: High-Speed Conveyor Valve (GR Valve)

Primary Metering

20″ Stainless Steel Mesh Chain

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

N/A

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
