Features

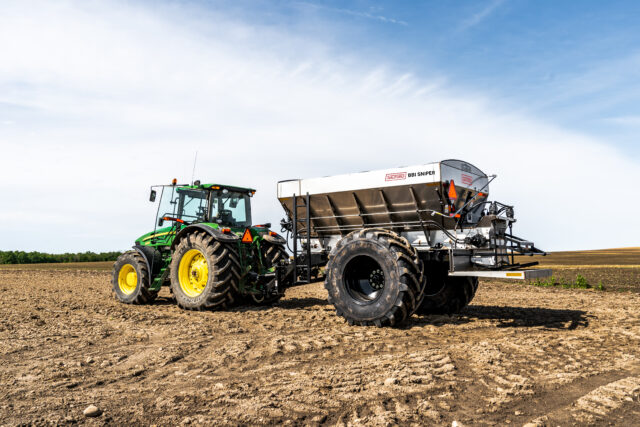

Sniper 120’ is engineered for application widths up to 120 feet, and uses patent pending technology to rapidly adjust its application swath on-the-fly. The Sniper’s tremendous application width and superior spread pattern control make for an efficient applicator that reduces overlap and keeps fertilizer out of environmentally sensitive areas. The simple spread pattern control is easy to set and maintain, keeping high acreage operators moving fast.

• ISOBUS controller ECU with Swath Control and Dynamic Metering capability

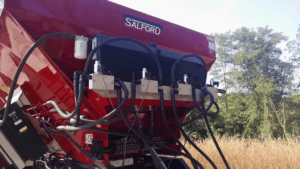

• Hydraulic Binary Manifold with pilot operated relief
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors

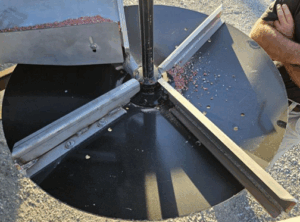

• Stainless steel spinners, fins and spread shield
• 12′ Stainless steel hopper with access ladder and Cable-Lok tarp (Hopper Volume 264 cu-ft struck)
• Dual 10″ stainless steel mesh chains with independent motors and gearboxes for LH/RH control
• 90″ to 120″ adjustable axles with 380/90R46 tires
• Heavy-duty tongue jack

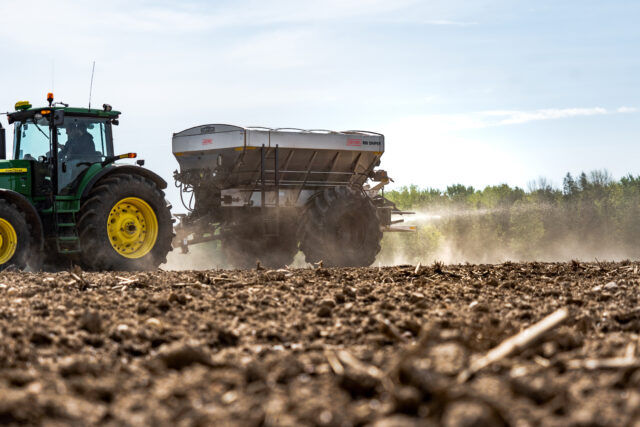

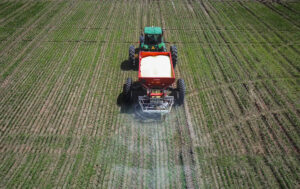

Illustration of Salford BBI Sniper's 12 section control, spreading 120 feetSalford’s BBI Sniper is  designed to spread fertilizer up to 120 feet. The wide swath application allows growers to get more done, faster, and with less fuel used. 120 foot application width also means 25%-50% fewer passes in the field, resulting in much less compaction.

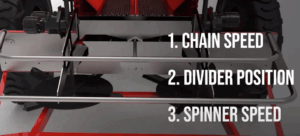

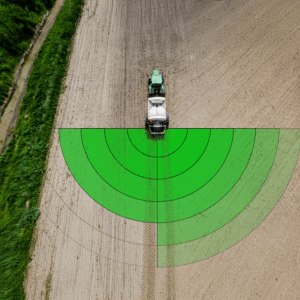

Illustration of Salford's BBI Sniper 12 section control showing swath adjustmentThe Sniper is capable of 12 section control, left/right boundary spreading, and application widths down to 30 feet. This application resolution helps to keep fertilizer where it’s needed, and saves growers on their input costs. The Sniper’s section control system is a simple, durable design that is engineered to be much more reliable than competitor’s spreader section control systems.

  • Capacity: 264 cubic feet / Ton: 8.6
  • 2 – Painted, 409 stainless steel
  • Application Width Fertilizer up to 120 feet
  • ISOBUS Compatible 12 section spread pattern control
  • Roll tarp installed

  • PTO Driven Self Contained Hydraulic system:
    • Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
    • 1000 RPM Series 6 CV 1 3/8 21 Spline
  • Includes: 4 Manifolds and PWM Valves to control each spinner and each conveyor. Heat shrink fittings.

Standard: Twin Independently Driven Stainless Steel Spinners, capable of ISOBUS speed control of maximum application width, and adjusting based on prescription maps

  • Standard: Single Axle High Clearance Frame with 90 in. to 120. Adjustable Axle (Adjustable in 6 in. Increments.)
  • Standard: 90 in. to 120 in. Adjustable Axle w/380/90 R46 Tires
  • Optional: 80 in. to 110 in. Adjustable Axle w/380/90 R46
  • Optional: 800/65 R32 Tires

Product Specs

Series
BBI
Size
264 cu-ft
Product type
Pull Type Spinner Spreaders
Model Name Short
Sniper
Model Name Long
SNIPER - 12' Single Axle Spreader with Swath Control

Materials Spread

Fertilizer
YES
AG Lime
NO
Litter
NO
Organics
NO
Seed
No
Other
-
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Hitch

Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch
Optional: Cat 4 Articulating Hitch

Jack
Heavy-duty tongue jack
Tarp

Factory Installed Tarp

Tail Light

Standard

Height
-
Weight
-

Hopper

Hopper Size

12′ High Profile Hopper, 264 cu-ft

Hopper Material

Standard: 409 Stainless Steel, Painted
Optional: 304 Stainless Steel

Hopper Extensions

N/A

Hopper Gate Control

Jack Operated Gate

Hopper Ladder

Ladder for Stainless Steel Hopper

Hopper "Inverted V"

Standard

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline
Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline

Material Distribution Booms/Spinners/Air Line

30″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width

Fert: Up to 120 feet

Material Distribution Drive

Standard: Self Contained PTO Hydraulics
Optional: Plug to Tractor Hydraulics

Metering Drive

Independent LH and RH gearboxes

Primary Metering

Split Chain – Twin 10″ Mesh Chains

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

12 Section Swath Control

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
