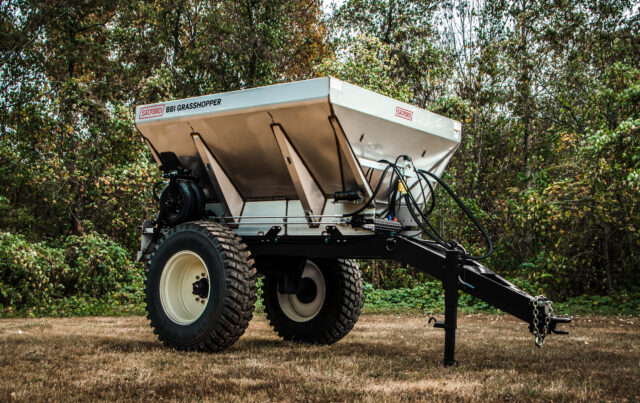

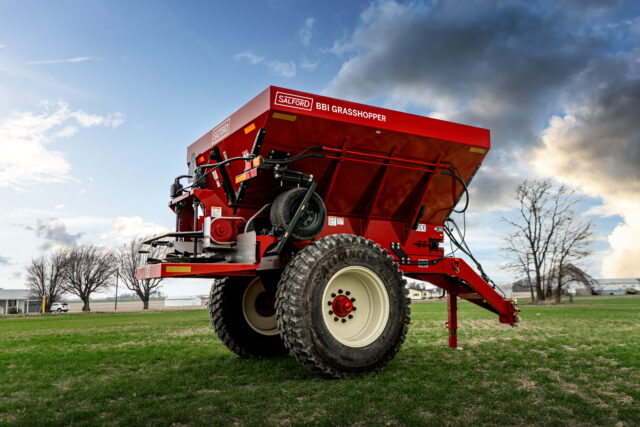

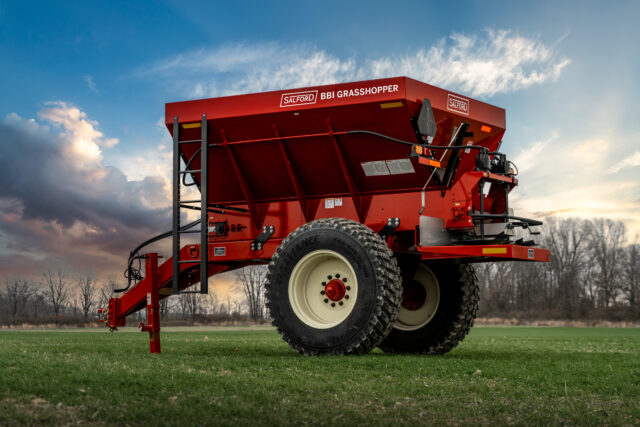

The Grasshopper pull-type spreader is the original mid-season, top-dress applicator from Salford. Designed to hold 5 tons of fertilizer or 7 tons of lime, this machine delivers the nutrients your emergent crop needs to maximize yield potential. With high ground-clearance for row cropping and top dressing and flotation tires to minimizing soil compaction, this spreader achieves precision application in both row crop and sod/turf farm environments. The Grasshopper is built for durability and precision, featuring ground-wheel-drive mechanics, and the original Salford spreader system for a consistently wider, flatter spread pattern.
Grasshopper Spinner Spreader
Features
• Choice of PTO (Series 6 CV Joint, shielded drive) or hydraulic driven spinners (OH mounted motors)
• 24″ dished spinner design for precision coverage
• Stainless steel spinners, fins and spread shield
• 9′ Stainless steel hopper
• Jack Operated Gate
• 16″ stainless steel mesh chain conveyor
• UHMW comb cover
• 12-Ton rigid, high-clearance axle with 11.25 x 28 ribbed implement row crop tires
• High ground clearance from row-cropping and top dressing
• 64″-72″ reversible track width
• Heavy-duty tongue jack
Product Specs
|
Series
|
BBI |
|
Size
|
180 cu-ft capacity |
|
Product type
|
Pull Type Spinner Spreaders |
|
Model Name Short
|
Grasshopper |
|
Model Name Long
|
Grasshopper, Mechanical, 9' Single Axle Spreader |
Materials Spread
|
Fertilizer
|
YES |
|
AG Lime
|
YES |
|
Litter
|
NO |
|
Organics
|
NO |
|
Seed
|
No |
|
Other
|
- |
|
Number of products applied, including optional hopper compartments
|
1 |
Detailed Equipment Specifications
|
Paint
|
Standard Paint Color – Red |
|
Hitch
|
Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch |
|
Jack
|
Heavy-duty tongue jack |
|
Tarp
|
Standard: No Tarp |
|
Tail Light
|
Standard: No Tail Lights |
|
Height
|
87" |
|
Weight
|
- |
Hopper
|
Hopper Size
|
9′ Standard Body Hopper – 180 cu-ft capacity |
|
Hopper Material
|
Choice: 409 Stainless Steel, Painted |
|
Hopper Extensions
|
N/A |
|
Hopper Gate Control
|
Jack Operated Gate |
|
Hopper Ladder
|
Standard: No Hopper Ladder |
|
Hopper "Inverted V"
|
N/A |
|
Hopper Sight Window
|
Standard Sight Window |
Metering and Drive
|
PTO Drive
|
Choice: |
|
Material Distribution Booms/Spinners/Air Line
|
24″ dished spinner design for precision coverage |
|
Application Swath Width
|
Lime: Up to 60 feet Fert: Up to 80 feet |
|
Material Distribution Drive
|
Standard:PTO Driven Spinners |
|
Metering Drive
|
#60 stainless steel ground drive chain |
|
Primary Metering
|
Standard: 16″ Stainless Steel Mesh Chain |
|
Primary Metering Minimum Output Rate
|
- |
|
Primary Metering Maximum Output Rate
|
- |
|
Secondary Metering
|
N/A |
|
Secondary Metering Minimum Output Rate
|
- |
|
Secondary Metering Maximum Output Rate
|
- |
|
Material Banding or Section Control
|
N/A |
Tires and Axles
|
Axle
|
|
|
Tire and Wheel Options
|
|
Monitoring and Precision Control
|
Monitors Options and Rate Control
|
Optional: Spinner Speed Monitor Kit |
|
Weigh System Option
|
- |
