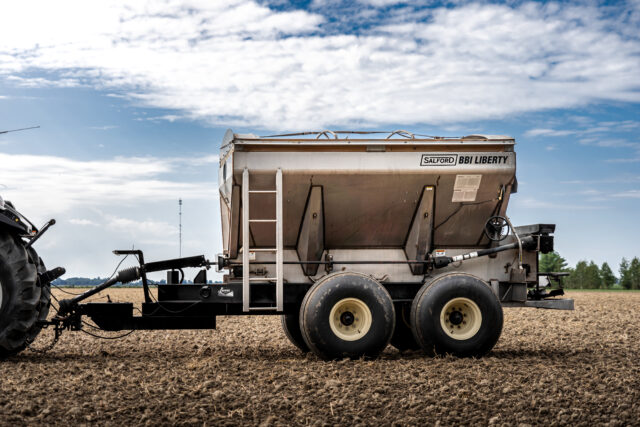

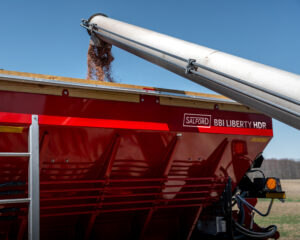

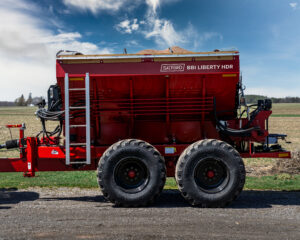

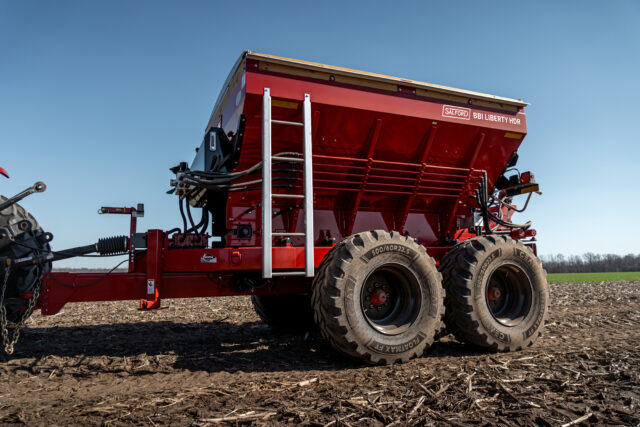

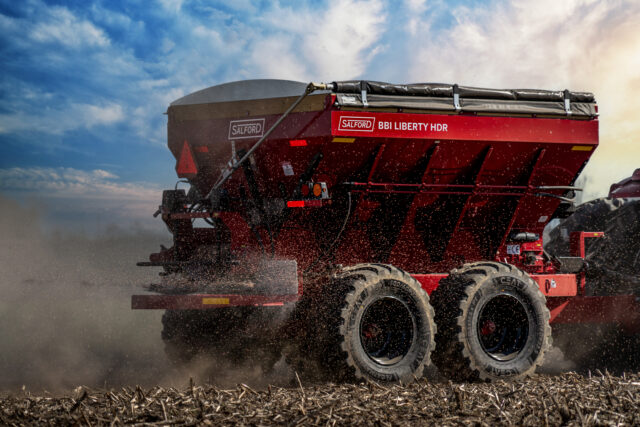

Liberty HDR Spinner Spreader

Features

Salford’s BBI Liberty hydraulic pull-type spreader is the ideal medium capacity machine for fertilizer and lime applications with unprecedented precision thanks to the original Salford spreader system.
This 10’ long, tandem-axle frame is built to be the toughest, most durable spreader in the market, delivering the most efficient fertilizer and lime field application to save time and money. The Liberty 24” dished spinner is designed for precision coverage and is available in heavy-duty, high-capacity packages and low-profile units.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• Self-contained hydraulics driven by Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Single motor gearbox
• Stainless steel spinners, fins and spread shield
• 10′ Stainless steel hopper
• 20″ stainless steel mesh chain conveyor
• 7-Ton “Torsion-Flex” tandem axle with 12.5 X 15 implement tires
• Heavy-duty tongue jack

Liberty HDR Medium CapacityWith a 10 foot hopper on a on a tandem-axle frame, Liberty is ready for a variety of medium-capacity nutrient applications. Control your economic results and own your yield with Liberty, equipped with the original Salford spreader system, also available in a variety of models and sizes.

Liberty HDR Economic PerformanceBBI Liberty HDR is the ultimate combination of power, precision, and performance, delivering unparalleled efficiency in the field. We call it cost-in-use—a combination of measures like the amount of fuel material and fuel you save from hitting your targets better with each nutrient application. There’s nothing like having greater control over the profitability of your business, and Liberty HDR is built to be your partner for increasing yield while cutting costs.

BBI Binary ManifoldPart of Salford BBI’s commitment to precision farming, all hydraulic models arrive in the field standard equipped with two proprietary technology pieces: the Binary Manifold and the Task Command System. The Binary Manifold, Salford BBI’s ISOBUS-ready platform, enables snap connections to all major precision agriculture platforms, while the Task Command System is our own precision agriculture combination pack, featuring a virtual terminal and software applications that include guidance and variable-rate application capabilities.

Product Specs

Series
BBI
Size
200 cu-ft capacity, 220 cu-ft capacity
Product type
Pull Type Spinner Spreaders
Model Name Short
Liberty HDR
Model Name Long
Liberty, Hydraulic, 10' Tandem Axle Spreader

Materials Spread

Fertilizer
YES
AG Lime
YES
Litter
NO
Organics
NO
Seed
No
Other
-
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Hitch

Standard: Cat 3 Cast Hitch – includes Pintle and Clevis Hitch
Optional: Cat 4 Articulating Hitch

Jack
Heavy-duty tongue jack
Tarp

Standard: No Tarp
Option: 10′ Tarp for Standard or high Profile Hoppers Aluminum End Caps
Option: 10′ Tarp for for Standard or High Profile Hoppers Stainless End Caps

Tail Light

Standard: No Tail Lights
Optional: Rear Tail Lights with Turn Signal, Side Markers, Wired with Corrosion Resistant Wiring Kit

Height
106"
Weight
6,500 lbs

Hopper

Hopper Size

Choice:
10′ Standard Profile Hopper 200 cu-ft capacity
10′ High Profile Hopper 220 cu-ft capacity

Hopper Material

Choice: 409 Stainless Steel, Painted
Choice: 304 Stainless Steel

Hopper Extensions

Standard: No Extension Brackets
Optional: Extension Brackets for 6″ boards

Hopper Gate Control

Jack Operated Gate

Hopper Ladder

Standard: No Hopper Ladder
Optional: Ladder for Carbon Steel Hopper
Optional: Ladder for Stainless Steel Hopper

Hopper "Inverted V"

Standard: No Inverted “V” – STANDARD
Optional: 10 ft Carbon Steel Overslung Removable Inverted V

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Choice:
1000 RPM Series 6 CV 1 3/4 20 Spline STANDARD
1000 RPM Series 6 CV 1 3/8 21 Spline STANDARD
Tractor Supplied Hydraulics – Req 46 GPM total – 2300 PSI; 2 Remotes@ 23 GPM each; Zero pressure case return

Material Distribution Booms/Spinners/Air Line

24″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width

Lime: Up to 60 feet Fert: Up to 80 feet

Material Distribution Drive

Standard:PTO Driven Spinners
Optional: Hydraulic Plug-To-Tractor Spinners (Plug-To-Tractor), requires 21 GPM @ 2000 PSI

Metering Drive

Standard: Tandem Gearcase

Primary Metering

20″ Stainless Steel Mesh Chain

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

N/A

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
