Features

Salford’s Valmar 56 Series implement-mount units are designed for commercial and farm use. Its durable design and rugged construction make this applicator the go-to choice for seeding cover crops or granular herbicide application. Engineered with polyurethane tanks for simple clean out and greater longevity with a wider range of products, the 56 Series delivers unparalleled accuracy across a wide variety of ground conditions. The innovative design incorporates a number of features to make granular application easier, safer, and more precise than ever.

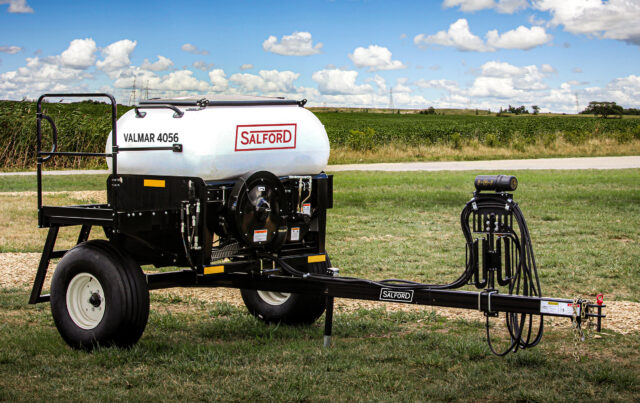

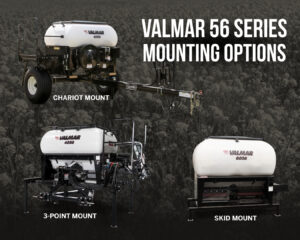

Valmar 56 Series Mounting OptionsThe Valmar 56 Series features multiple mounting options which allow it to be used with a wide variety of implements. The 3-point hitch mount uses an integrated drawbar rated for either 350 or 600 HP. The tow-behind option is designed to be a safer, operator-friendly option, allowing operators to easily fill and calibrate the 56 Series without having to climb over the implement’s frame. The applicator itself has a platform for easy access to the hopper and a ladder that folds away while in operation. Both the 3-point hitch mount and the tow-behind options eliminate the need for implement specific mounting brackets and hardware, making the 56 Series instantly compatible with virtually any implement.

Valmar 56 Series Metering SystemThe metering system on the Valmar 4056 Series features 2 metering rollers which can be fitted with either 28 groove or 12 groove rollers to provide a wide range of application rates with a wide range of products including granular herbicides, fertilizers, and cover crop seeds. These rollers feed 16 outlets which allows for use on implements up to 60 feet wide. Equipped with magnetic clutches, the metering system on the 56 Series allows for left hand / right hand control with an in-cab control unit. The ground-driven metering system option uses a 60-speed gearbox that ensures an accurate application rate regardless of ground speed. The 56 Series may also be connected to a third-party ISOBUS control unit to allow for use of variable rate and prescription application.

Valmar 56 Series Calibration FunnelsCalibrating an applicator is necessary to ensure proper flow rates, especially when determining the settings for new products or various sizes of seed and seed mixtures. The 56 Series applicators make this process easier by allowing the Venturi and manifold system to be dropped so that a funnel tray can be inserted for easy collection of product. Operators can use the crank handle to simulate ground travel and establish precise calibration of any product. This also makes emptying the hopper an easy and safe procedure.

Variety of seed, fertilizer and herbicide that can be applied with Salford's Valmar granular meetering.The 56 series granular metering system accurately and gently handles seed, fertilizer and or herbicide, at a wide range of application rates. These machines are ideal for seeding cover crops, low rate herbicide application. The 56 series stainless steel and plastic metering components standup to fertilizer without any risk of corrosion.

Product Specs

Series
Valmar
Size
40 cu-ft
Product type
Granular Applicators
Model Name Short
4056
Model Name Long
4056 SERIES IMPLEMENT MOUNT APPLICATOR

Materials Spread

Fertilizer
Yes
AG Lime
No
Litter
No
Organics
No
Seed
Yes
Other
Granular Herbicide, Innoculant
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Black

Hitch

Standard: Implement mount applicator. Custom mounting may be required
Optional: Applicator Mounted On “Chariot” Pull-Type Cart
Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 350 HP Drawbar
Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 600 HP Drawbar

Jack
Included with "Chariot" Pull-Type Cart
Tarp

Weather tight plastic lid

Tail Light

Optional: Lighting kit for “Chariot” Pull-Type Cart

Height
55"
Weight
1,000 lbs

Hopper

Hopper Size

40 cubic feet

Hopper Material

Poly hopper, black frame

Hopper Extensions

N/A

Hopper Gate Control

Manual open/close

Hopper Ladder

Optional: ladder and platform included with “Chariot” Pull-Type Cart

Hopper "Inverted V"

Optional Agitator

Hopper Sight Window

Poly hopper is translucent allowing the operator to see level of material inside

Metering and Drive

PTO Drive

N/A

Material Distribution Booms/Spinners/Air Line

Two section 304 Stainless steel metering system with metering rollers
16 outlets

Application Swath Width

24-60 feet

Material Distribution Drive

18 inch fan with hydraulic motor & check valve

Metering Drive

Option: Mechanical metering drive with 60 speed gearbox
Option: Hydraulic metering drive

Primary Metering

Includes one set of meter rollers – 28-groove red meter roll or 12-groove grey meter roll

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

Two section metering with magnetic clutches for left/right section control

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-

Compare

Select up to 3 products to compare specifications

4056 Applicator

Add Model & Size

Choose Model & Size

Product Specs

Series
Valmar
Size
40 cu-ft
Product type
Granular Applicators
Model Name Short
4056
Model Name Long
4056 SERIES IMPLEMENT MOUNT APPLICATOR

Materials Spread

Fertilizer
Yes
AG Lime
No
Litter
No
Organics
No
Seed
Yes
Other
Granular Herbicide, Innoculant
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Black

Hitch

Standard: Implement mount applicator. Custom mounting may be required
Optional: Applicator Mounted On “Chariot” Pull-Type Cart
Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 350 HP Drawbar
Optional: Applicator Mounted 3-Point Hitch With Integrated Implement 600 HP Drawbar

Jack
Included with "Chariot" Pull-Type Cart
Tarp

Weather tight plastic lid

Tail Light

Optional: Lighting kit for “Chariot” Pull-Type Cart

Height
55"
Weight
1,000 lbs

Hopper

Hopper Size

40 cubic feet

Hopper Material

Poly hopper, black frame

Hopper Extensions

N/A

Hopper Gate Control

Manual open/close

Hopper Ladder

Optional: ladder and platform included with “Chariot” Pull-Type Cart

Hopper "Inverted V"

Optional Agitator

Hopper Sight Window

Poly hopper is translucent allowing the operator to see level of material inside

Metering and Drive

PTO Drive

N/A

Material Distribution Booms/Spinners/Air Line

Two section 304 Stainless steel metering system with metering rollers
16 outlets

Application Swath Width

24-60 feet

Material Distribution Drive

18 inch fan with hydraulic motor & check valve

Metering Drive

Option: Mechanical metering drive with 60 speed gearbox
Option: Hydraulic metering drive

Primary Metering

Includes one set of meter rollers – 28-groove red meter roll or 12-groove grey meter roll

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

Two section metering with magnetic clutches for left/right section control

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
