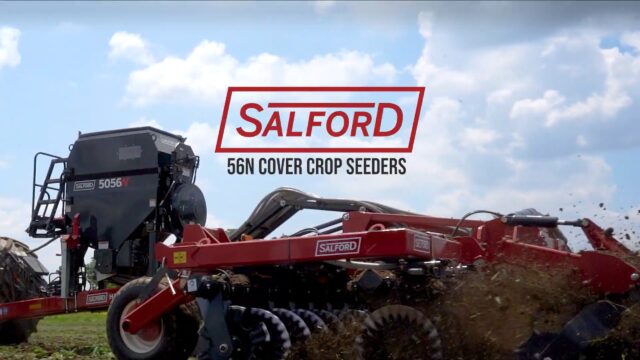

Salford’s 56 Series Applicators are your versatile partners in farming, now enhanced with the NEW 5056N and 7056N granular applicators. The “N” in 56N means “Narrow”, fitting perfectly on Salford’s HALO narrow folding tillage tools. The 56N maintains the accuracy and reliability of Salford cover crop seeders; while simplifying air line routing, boosting air flow, and improving material distribution for narrow folding tillage implements. The 56N goes where you go, boosts your efficiency and helps improve soil health.
56N Series Mounted Cover Crop Seeder
Features
56N models have been designed to fit onto the frame of Salford’s HALO narrow folding tillage implements. Along with being narrow enough to fit onto the HALO frame, the 5056N has a 50 cubic foot capacity, and the 7056N has a 70 cubic foot capacity. The hopper sizes are designed to pair with HALO models to minimize the time between fills. The 56N models have large hopper openings for faster filling. The large opening also provides easy access, should maintenance be required inside the hopper. The steel bin screens are designed for fast filling, while prevent large clumps of fertilizer and foreign material from being fed into the system. Sight windows near the top and bottom on each side of the hopper allow the operator to see when the bin is full and when it is nearly empty. An operator platform with a folding and locking ladder gives the operator safe and easy access to the hopper.
The 56N Series is controlled with an ISOBUS connection, designed to run with existing virtual terminals in the tractor. This allows for left/right section control and rate adjustment. This unit uses only one hydraulic remote to power the metering system and fan. The lines feature color coded hose grips to help align the connections with the operators preferred SCV. The 56N Series is equipped with a bin level sensor to alert the operator when the hopper is almost out of material.
The 56N Series can be equipped with a 12 groove grey metering roller, or a 28 groove red metering roller. The 12 groove roller accurately meters for higher rates or larger seeds, while the 28 groove metering roller is designed for lower rates or smaller seed.
Product Specs
Series
|
- | - |
Size
|
50 cu-ft | 70 cu-ft |
Product type
|
Granular Applicators | Granular Applicators |
Model Name Short
|
5056N | 7056N |
Model Name Long
|
- | - |
Materials Spread
Fertilizer
|
NO | NO |
AG Lime
|
NO | NO |
Litter
|
NO | NO |
Organics
|
NO | NO |
Seed
|
YES | YES |
Other
|
- | - |
Number of products applied, including optional hopper compartments
|
1 | 1 |
Detailed Equipment Specifications
Paint
|
Black |
Black |
Hitch
|
Applicator is implement mounted. |
Applicator is implement mounted. |
Jack
|
- | - |
Tarp
|
Weather tight lid |
Weather tight lid |
Tail Light
|
- | - |
Height
|
78.5"" | 80.5" |
Weight
|
1500 lbs | 1700 Ibs |
Hopper
Hopper Size
|
78.5″ H x 74.25″ L x 37.5″ W *56N dimensions are for an un-mounted unit and do not include the operator platform and ladder. |
80.5″ H x 75″ L x 49.5″ W *56N dimensions are for an un-mounted unit and do not include the operator platform and ladder. |
Hopper Material
|
Black Steel hopper |
Black Steel hopper |
Hopper Extensions
|
- | - |
Hopper Gate Control
|
Manual open/close |
Manual open/close |
Hopper Ladder
|
Ladder and platform |
Ladder and platform |
Hopper "Inverted V"
|
- | - |
Hopper Sight Window
|
Sight windows near the top and bottom on each side of the hopper allow the operator to see when the bin is full and when it is nearly empty. |
Sight windows near the top and bottom on each side of the hopper allow the operator to see when the bin is full and when it is nearly empty. |
Metering and Drive
PTO Drive
|
- | - |
Material Distribution Booms/Spinners/Air Line
|
16 Outlets |
24-Outlets |
Application Swath Width
|
20-30 feet** **The recommended spacing is 20 inches between outlets, but can safely vary to match the HALO series working widths. |
35-40 feet** **The recommended spacing is 20 inches between outlets, but can safely vary to match the HALO series working widths. |
Material Distribution Drive
|
Hydraulic direct drive fan |
Hydraulic direct drive fan |
Metering Drive
|
Hydrualic driven metering |
Hydrualic driven metering |
Primary Metering
|
- | - |
Primary Metering Minimum Output Rate
|
- | - |
Primary Metering Maximum Output Rate
|
- | - |
Secondary Metering
|
- | - |
Secondary Metering Minimum Output Rate
|
- | - |
Secondary Metering Maximum Output Rate
|
- | - |
Material Banding or Section Control
|
Two section metering system – Electric Clutch |
Two section metering system – Electric Clutch |
Tires and Axles
Axle
|
- | - |
Tire and Wheel Options
|
- | - |
Monitoring and Precision Control
Monitors Options and Rate Control
|
ISO Control |
ISO Control |
Weigh System Option
|
- | - |
