MagnaSpread PLUS+ Spinner Spreader

Features

Build for efficiency and performance, Salford’s BBI MagnaSpread Plus+ combines the use of one spreader to maximize both fertilizer and lime application widths, saving you time and money. This machine has the capacity to spread dry fertilizer up to 120’ and lime up to 60’ – all with one machine. The new MagnaSpread Plus+ builds on the industry leading performance of Salford’s BBI MagnaSpread by adding new technology to maximize your investment.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 1 set each of fertilizer and ag lime flow dividers and fins

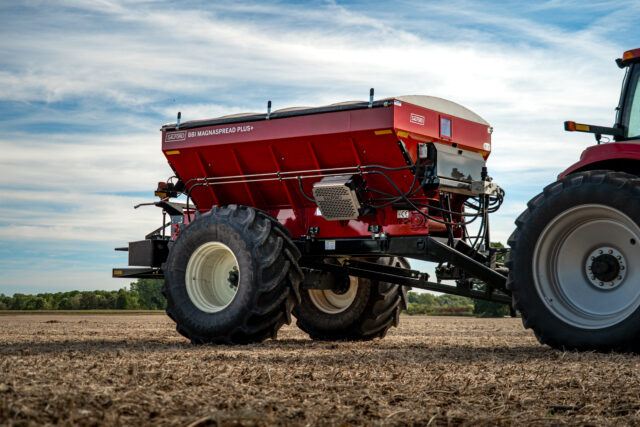

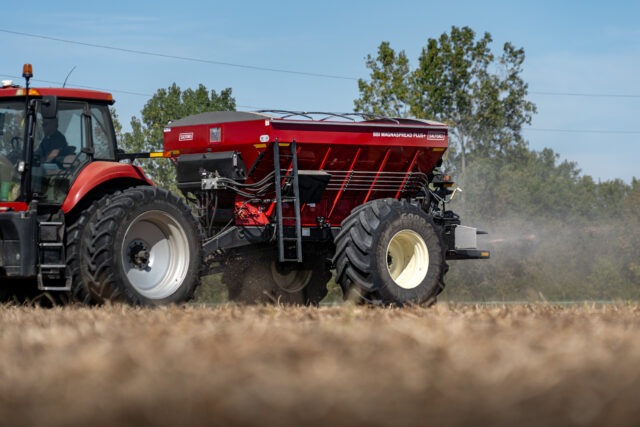

• 12′ Stainless steel hopper with access ladder (Hopper Volume 264 cu-ft struck)
• Over-slung center ‘V’
• 30″ belt-over-bar conveyor
• 90″ to 120″ adjustable axles with 380/90R46 tires
• Heavy-duty tongue jack
• Spreader pan test kit

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 1 set each of fertilizer and ag lime flow dividers and fins

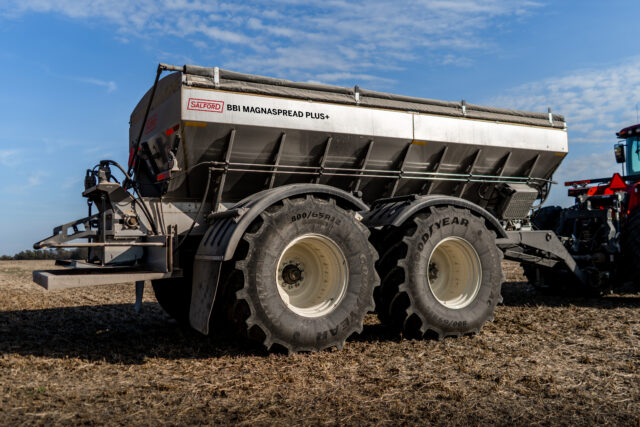

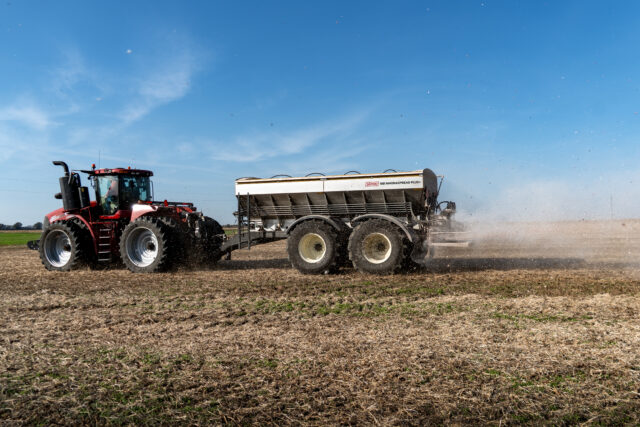

• 20′ Stainless steel hopper with access ladder (Hopper Volume 440 cu-ft struck)
• Over-slung center ‘V’
• 30″ belt-over-bar conveyor
• 20-Ton walking beam suspension with 800/65R32 tires
• Heavy-duty tongue jack and Category 4 Articulating Hitch
• Spreader pan test kit

MagnaSpread Plus+ Fert-LimeSalford BBI spreaders are designed to save time and cost of application by achieving industry leading application widths. In order to maximize the application width with each material the MagnaSpread Plus requires a spinner and flow divider change over. Switch from fertilizer application to lime application with two people in under 30 minutes! *Maximum application width varies by material quality.

MagnaSpread Plus+ TechnologyThe MagnaSpread Plus uses tried and tested hopper designs, the high-clearance single axle 12 foot hopper or the tandem axle 20 foot hopper, equipped with Salford’s latest advancements in application technology. Engineering improvements make this spreader even more accurate and easy to set. The axle configurations help producers who need the widest application window or those looking for the maximum pay load.

BBI Binary ManifoldPatented hydraulics control system – connectivity to all major precision agriculture technology brands

    • Variable Rate ready ISOBUS compatibility to most major precision control systems

    • Multiple factory-installed systems available

MagnaSpread Plus+ HydraulicsHigh quality JIC fittings & true hydraulic pipe

GR Valve – increasing chain speed

Hy-Torque manifold – increasing available spinner torque

Product Specs

Series
BBI BBI
Size
264 cu-ft 440 cu-ft
Product type
Pull Type Spinner Spreaders Pull Type Spinner Spreaders
Model Name Short
MagnaSpread Plus MagnaSpread Plus
Model Name Long

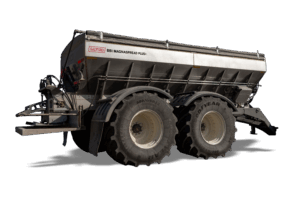

MAGNASPREAD PLUS+ 12' Single Axle Spreader MAGNASPREAD PLUS+ 20' Tandem Axle Spreader

Materials Spread

Fertilizer
YES YES
AG Lime
YES YES
Litter
NO NO
Organics
NO NO
Seed
NO NO
Other
- -
Number of products applied, including optional hopper compartments
1 1

Detailed Equipment Specifications

Paint

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Hitch

Standard: Cast Hitch for Pull Type Spreaders – includes Pintle and Clevis Hitch
Optional: Articulating Hitch

Standard: Cast Hitch for Pull Type Spreaders – includes Pintle and Clevis Hitch
Optional: Articulating Hitch

Jack
Heavy-duty tongue jack Heavy-duty tongue jack
Tarp

Standard: No Tarp
Option: Tarp for for Standard or High Profile Hoppers Stainless End Caps

Standard: No Tarp
Option: Tarp for for Standard or High Profile Hoppers Stainless End Caps

Tail Light

Rear Tail Lights with Turn Signal, Side Markers

Rear Tail Lights with Turn Signal, Side Markers

Height
- -
Weight
- -

Hopper

Hopper Size

12′ High Profile Hopper 264 cu-ft

20′ 96″ Wide Hopper 440 cu-ft

Hopper Material

Standard: 409 Stainless Steel, Painted
Optional: 304 Stainless Steel

Standard: 409 Stainless Steel, Painted
Optional: 304 Stainless Steel

Hopper Extensions

Standard: No Extension Brackets
Optional: Extension Brackets for 6″ boards

Standard: No Extension BracketsOptional: 6″ extension brackets
Optional: Extension Brackets for 6″ boards

Hopper Gate Control

Jack Operated Gate

Jack Operated Gate

Hopper Ladder
- -
Hopper "Inverted V"

Standard: Removeable Invertered V
* The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.

Standard: Removeable Invertered V
* The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.

Hopper Sight Window

Standard Sight Window

Yes

Metering and Drive

PTO Drive

Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline
Choice: Tractor Supplied Hydraulics for MagnaSpread*
*Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.

Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline
Choice: Tractor Supplied Hydraulics for MagnaSpread*
*Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.

Material Distribution Booms/Spinners/Air Line

30″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

30″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width

Lime: Up to 50 feet Fert: Up to 120 feet

Lime: Up to 50 feet Fert: Up to 120 feet

Material Distribution Drive

Standard: Self Contained PTO Hydraulics
Optional: Plug to Tractor Hydraulics

Standard: Self Contained PTO Hydraulics
Optional: Plug to Tractor Hydraulics

Metering Drive

Tandem conveyor drive gearbox
Optional: High Speed Conveyor Valve

Tandem conveyor drive gearbox
Optional: High Speed Conveyor Valve

Primary Metering

Standard: 30″ Belt-Over-Bar Chain

Standard: 30″ Belt-Over-Bar Chain

Primary Metering Minimum Output Rate
- -
Primary Metering Maximum Output Rate
- -
Secondary Metering

N/A

N/A

Secondary Metering Minimum Output Rate
- -
Secondary Metering Maximum Output Rate
- -
Material Banding or Section Control

N/A

N/A

Tires and Axles

Axle
- -
Tire and Wheel Options
- -

Monitoring and Precision Control

Monitors Options and Rate Control
- -
Weigh System Option
- -

Compare

Select up to 3 products to compare specifications

MagnaSpread PLUS+ Spinner Spreader

Add Model & Size

Choose Model & Size

Product Specs

Series
BBI
Size
264 cu-ft
Product type
Pull Type Spinner Spreaders
Model Name Short
MagnaSpread Plus
Model Name Long
MAGNASPREAD PLUS+ 12' Single Axle Spreader

Materials Spread

Fertilizer
YES
AG Lime
YES
Litter
NO
Organics
NO
Seed
NO
Other
-
Number of products applied, including optional hopper compartments
1

Detailed Equipment Specifications

Paint

Standard Paint Color – Red
Optional Paint Color – Green
Optional Paint Color – Gray
Optional Paint Color – Black Accent Parts (304 SS)

Hitch

Standard: Cast Hitch for Pull Type Spreaders – includes Pintle and Clevis Hitch
Optional: Articulating Hitch

Jack
Heavy-duty tongue jack
Tarp

Standard: No Tarp
Option: Tarp for for Standard or High Profile Hoppers Stainless End Caps

Tail Light

Rear Tail Lights with Turn Signal, Side Markers

Height
-
Weight
-

Hopper

Hopper Size

12′ High Profile Hopper 264 cu-ft

Hopper Material

Standard: 409 Stainless Steel, Painted
Optional: 304 Stainless Steel

Hopper Extensions

Standard: No Extension Brackets
Optional: Extension Brackets for 6″ boards

Hopper Gate Control

Jack Operated Gate

Hopper Ladder
-
Hopper "Inverted V"

Standard: Removeable Invertered V
* The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline
Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline
Choice: Tractor Supplied Hydraulics for MagnaSpread*
*Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.

Material Distribution Booms/Spinners/Air Line

30″ dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width

Lime: Up to 50 feet Fert: Up to 120 feet

Material Distribution Drive

Standard: Self Contained PTO Hydraulics
Optional: Plug to Tractor Hydraulics

Metering Drive

Tandem conveyor drive gearbox
Optional: High Speed Conveyor Valve

Primary Metering

Standard: 30″ Belt-Over-Bar Chain

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

N/A

Tires and Axles

Axle
-
Tire and Wheel Options
-

Monitoring and Precision Control

Monitors Options and Rate Control
-
Weigh System Option
-
