Sniper Spinner Spreader - Salford Group Inc.

Features

The Sniper 120’ is engineered for application widths up to 120 feet, and uses patent pending technology to rapidly adjust its application swath width on-the-fly. The Sniper’s tremendous application width and superior spread pattern control make for an efficient applicator that reduces overlap and keeps fertilizer out of environmentally sensitive areas. The simple spread pattern control is easy to set and maintain, keeping high acreage operators on the move.

• ISOBUS controller ECU with Swath Control and integrated scale kit
• High duty-cycle hydraulics, with oil cooler
• Laser Cut Sight Window
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Stainless steel spinners, fins and spread shield
• 12′ Stainless steel hopper with access ladder and tarp (Hopper Volume 264 cu-ft struck)
• Dual 10″ stainless steel mesh chains with independent motors and gearboxes for LH/RH control
• 90″ to 120″ adjustable axles with 380/90R46 tires
• Heavy-duty tongue jack
• Rear Tail Lights with Turn Signal, Side Makers
• Spreader pan test kit

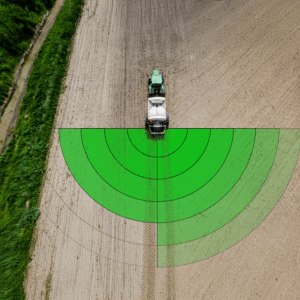

Illustration of Salford BBI Sniper's 12 section control, spreading 120 feetSalford’s BBI Sniper is  designed to spread fertilizer up to 120 feet. The wide swath application allows growers to get more done, faster, and with less fuel used. 120 foot application width also means 25%-50% fewer passes in the field, resulting in much less compaction.

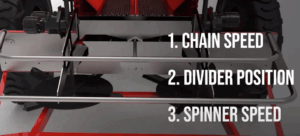

The Sniper is capable of 12 section control and application widths down to 30 feet. This application resolution helps to keep fertilizer where it’s needed reducing over applied areas and saves growers on their input costs. The Sniper’s section control system is a simple, durable design that is engineered to be much more reliable than competitor’s spreader section control systems.

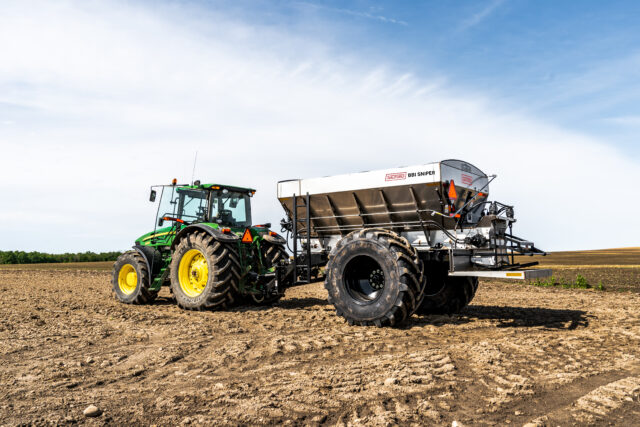

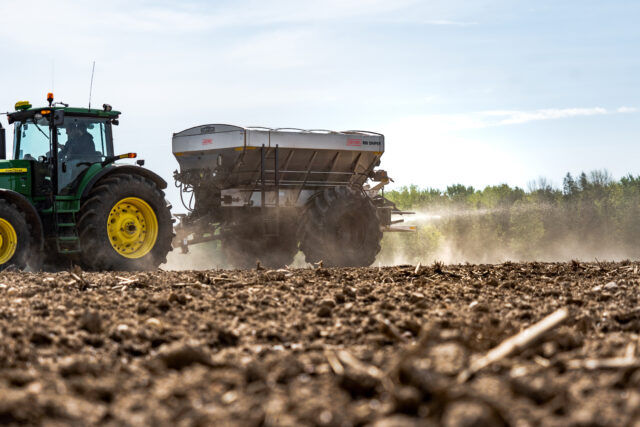

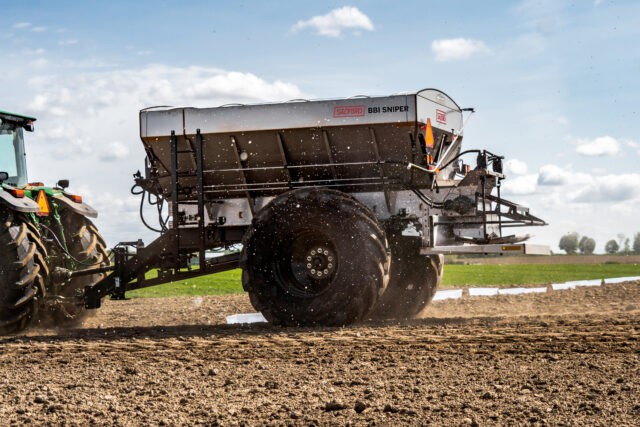

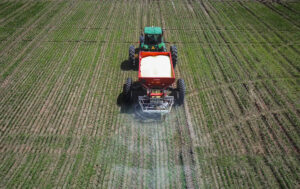

Salford BBI Sniper spreading fertilizerThe Sniper features a 264-cubic-foot capacity with an impressive 8.6-ton rating, making it ideal for high-efficiency applications. It is available in painted, 409 stainless steel, or 304 stainless steel construction to match the rest of your equipment. The unit delivers exceptional performance with an application width up to 120 feet for fertilizer, ensuring wide, uniform coverage. It is fully ISOBUS compatible, offering 12-section spread pattern control for precision application. It also comes with a roll tarp installed.

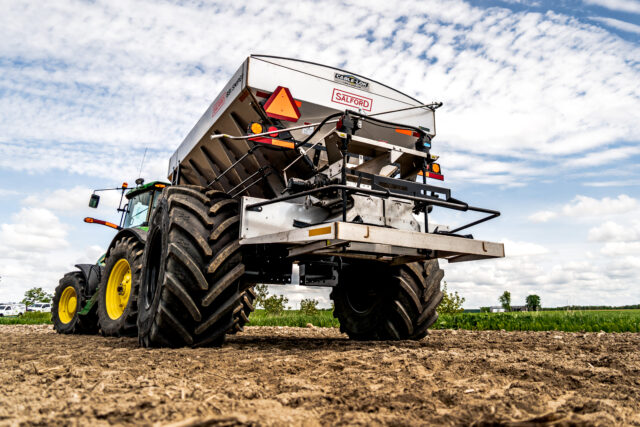

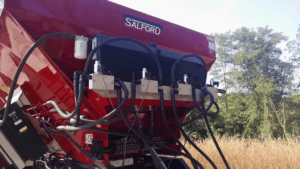

The Sniper’s PTO-driven, self-contained hydraulic system provides reliable, consistent power delivery in the field. Operators can choose between a 1000 RPM Series 6 CV 1 3/4 20-spline or 1000 RPM Series 6 CV 1 3/8 21-spline configuration to match their tractor setup. The system comes fully equipped with four manifolds and PWM valves, allowing precise control of each spinner and each conveyor for accurate material placement, the package also includes heat-shrink fittings.

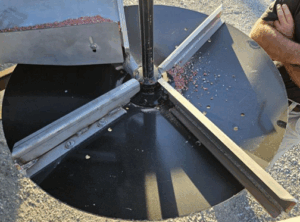

The Sniper comes equipped with twin independently driven stainless steel spinners, engineered for consistent and accurate material distribution. These spinners are fully ISOBUS speed-controlled, allowing the system to automatically maintain optimal spinner speed for maximum application width. The system can also adjust spinner output based on prescription maps, ensuring the right rate is applied in exactly the right place.

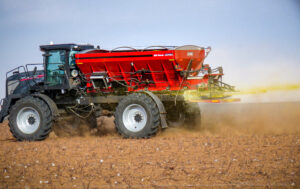

Salford BBI Sniper mounted on RBR chassis spreading fertilizerThe Sniper delivers application flexibility with a wide range of rate capabilities. At a maximum rate of 65 lb/ft³, it can apply up to 650 lbs/acre at 10 mph for high-demand scenarios, while also achieving a minimum rate of 50 lbs/acre at 10 mph for lighter applications.

Product Specs

Series
BBI
Product type
Pull Type Spinner Spreaders
Model
Sniper
Size
264 cu-ft (7.48 cu-m)

Dimensions and Weights

Working width, ft (m)
-
Transport width, ft (m)
-
Transport height, ft (m)
-
Approximate weight, lb (kg)
-
Other sizes available, number of capacities
-

Materials Spread

Fertilizer
YES
AG Lime
NO
Litter
NO
Organics
NO
Seed
NO
Other
-
Number of products applied, including optional hopper compartments
1

Hopper

Hopper Size

12 ft (3.66 m) High Profile Hopper, 264 cu-ft (7.48 cu-m)

Hopper Material

Standard: 409 Stainless Steel, Painted or 304 Stainless Steel

Hopper Extensions

N/A

Hopper Gate Control

Jack Operated Gate

Hopper Ladder

Access Ladder for Stainless Steel Hopper

Hopper "Inverted V"

Standard

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Standard Choose one:
1000 RPM Series 6 CV 1 3/8 21 Spline
1000 RPM Series 6 CV 1 3/4 20 Spline

Material Distribution Booms/Spinners/Air Line

30 inch dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width, ft (m)

Fert: Up to 120 feet (36.58 m)

Material Distribution Drive

Standard: Self Contained PTO Hydraulics

Metering Drive

Independent LH and RH gearboxes

Primary Metering

Standard: Split Chain – Twin 10 inch Mesh Chains

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

12 Section Swath Control

Tires and Axles

Transport wheel mounting
Standard: 90 inch to 120 inch adjustable axle with 380/90R46 Tires Optional: 120 inch to 152 inch adjustable axle with 380/90R46 Tires
Transport tires
Standard: 380/90R46 Tires Optional: 800/65R32 Tires or Exclude Tire & Rim's (Dealer will source)

Hitch

Hookup to tractor, mounted or pull-type
Pull-type - Standard: CAT 3 Cast Hitch - includes Pintle and Clevis Hitch Optional: CAT 4 Articulating Hitch
Jack
Heavy-duty tongue jack

Tractor Requirements

Required power, hp (kw)
-
Remote Hydraulic Values required
-
Hydraulic Pressure
-

Monitoring and Precision Control

Monitors Options and Rate Control

Standard: Proprietary ISOBUS Controller

Weigh System Option

Standard: Controller Integrated Scale Kit

Other Equipment Options

Option 1
Paint Options: Standard: Red Optional: Green, Grey or Black Accent Parts (304 SS)
Option 2
Standard: Factory installed 12' Tarp
Option 3
Tail Lights Standard
Option 4
-
Equipment Options
-

Compare

Select up to 3 products to compare specifications

Sniper Spinner Spreader

Add Model & Size

Choose Model & Size

Product Specs

Series
BBI
Product type
Pull Type Spinner Spreaders
Model
Sniper
Size
264 cu-ft (7.48 cu-m)

Dimensions and Weights

Working width, ft (m)
-
Transport width, ft (m)
-
Transport height, ft (m)
-
Approximate weight, lb (kg)
-
Other sizes available, number of capacities
-

Materials Spread

Fertilizer
YES
AG Lime
NO
Litter
NO
Organics
NO
Seed
NO
Other
-
Number of products applied, including optional hopper compartments
1

Hopper

Hopper Size

12 ft (3.66 m) High Profile Hopper, 264 cu-ft (7.48 cu-m)

Hopper Material

Standard: 409 Stainless Steel, Painted or 304 Stainless Steel

Hopper Extensions

N/A

Hopper Gate Control

Jack Operated Gate

Hopper Ladder

Access Ladder for Stainless Steel Hopper

Hopper "Inverted V"

Standard

Hopper Sight Window

Standard Sight Window

Metering and Drive

PTO Drive

Standard Choose one:
1000 RPM Series 6 CV 1 3/8 21 Spline
1000 RPM Series 6 CV 1 3/4 20 Spline

Material Distribution Booms/Spinners/Air Line

30 inch dished spinner design for precision coverage
Stainless steel spinners, fins and spread shield

Application Swath Width, ft (m)

Fert: Up to 120 feet (36.58 m)

Material Distribution Drive

Standard: Self Contained PTO Hydraulics

Metering Drive

Independent LH and RH gearboxes

Primary Metering

Standard: Split Chain – Twin 10 inch Mesh Chains

Primary Metering Minimum Output Rate
-
Primary Metering Maximum Output Rate
-
Secondary Metering

N/A

Secondary Metering Minimum Output Rate
-
Secondary Metering Maximum Output Rate
-
Material Banding or Section Control

12 Section Swath Control

Tires and Axles

Transport wheel mounting
Standard: 90 inch to 120 inch adjustable axle with 380/90R46 Tires Optional: 120 inch to 152 inch adjustable axle with 380/90R46 Tires
Transport tires
Standard: 380/90R46 Tires Optional: 800/65R32 Tires or Exclude Tire & Rim's (Dealer will source)

Hitch

Hookup to tractor, mounted or pull-type
Pull-type - Standard: CAT 3 Cast Hitch - includes Pintle and Clevis Hitch Optional: CAT 4 Articulating Hitch
Jack
Heavy-duty tongue jack

Tractor Requirements

Required power, hp (kw)
-
Remote Hydraulic Values required
-
Hydraulic Pressure
-

Monitoring and Precision Control

Monitors Options and Rate Control

Standard: Proprietary ISOBUS Controller

Weigh System Option

Standard: Controller Integrated Scale Kit

Other Equipment Options

Option 1
Paint Options: Standard: Red Optional: Green, Grey or Black Accent Parts (304 SS)
Option 2
Standard: Factory installed 12' Tarp
Option 3
Tail Lights Standard
Option 4
-
Equipment Options
-
