Pathfinder St-10

request a quote

Are you interested in a quote or demonstration of the ST-6? Please fill out the form below and one of our Territory Managers will be in touch shortly.

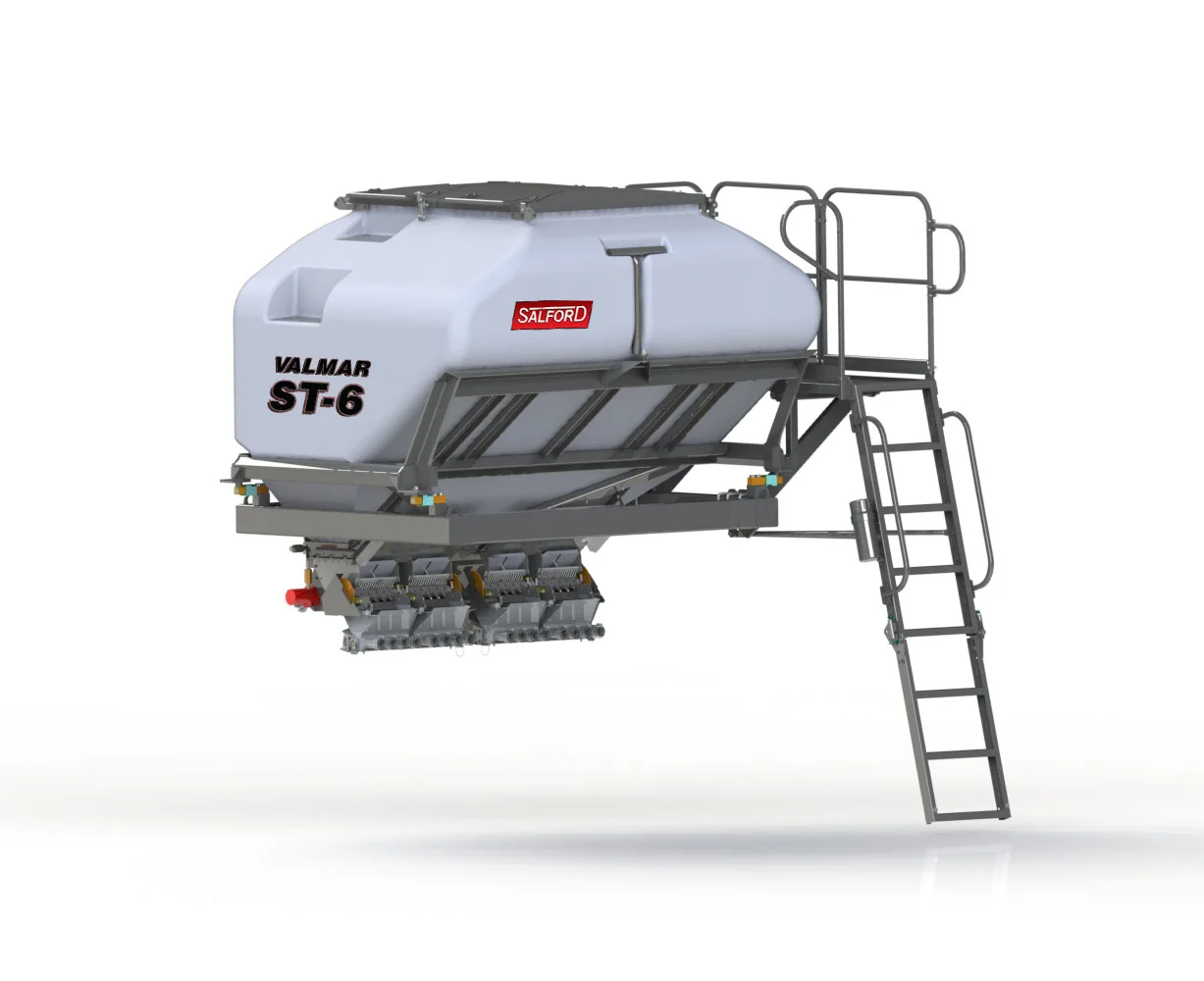

ST-6 - FRAME MOUNT

The ST-6 is available independently as a skid-mounted system for use on 3rd party implements such as strip-till and applicator toolbars.

FEATURES

HIGH CAPACITY STEERING-CART
The PathFinder and ST-Series commodity metering system adds high capacity, multi-product, fertilizer delivery to tillage equipment, strip-till bars, side dress applicators and planters. The universal double ball hitch can be adapted to fit virtually any frame design or custom mounts can be developed on farm to employ the double ball hitch.

ROW CROP APPLICATION
The PathFinder features a high clearance axle for post emergence, inter-row application. The axle can be stubbed out to match various row crop spacings.

DOUBLE BALL HITCH
The PathFinder's double ball hitch provides near universal integration with many planters and implements. Call your dealer or Salford to determine fit.

ACKERMAN ACCURACY
Using the Ackerman steering principle the PathFinder tracks more accurately behind implements. This steering principle reduces stress on the implement and cart while reducing the horse power required to maneuver.

AXLE SPACING OPTIONS
The PathFinder offers 5 axle spacing options from 120 in. to 160 in. in order to match your row crop needs.

ST-SERIES METERING

SIMPLE ACURATE METERING
The ST-Series use highly accurate, simple, venturi metering to funnel product evenly into the separate air lines delivering precisely how much product you need. Meters are designed to stay clean and are simple to change.

HYDRAULICS
ST-Series applicators use hydraulic drive systems. Factory optional ECU's allow for simple straight rate application or ISOBUS compatible variable rate application.

SIMPLE ACCURATE METERING
The ST-Series use highly accurate, simple, venturi-metering to funnel product evenly into the separate air lines delivering precisely how much product you need. Meters are designed to stay clean and are simple to change.


 Aer Certified ISO Bus
 Pathfinder ST-10 Mechanical Component (1/2)

 Pathfinder ST-10 Mechanical Component (2/2)



TECHNICAL SPECS.

HOPPER

HOPPER CAPACITY: 185 cu. ft., 6 ton capacity


- Easy to use lid on linkage and track opener


- Available bin screen


- Hopper bottom shut-off slide gates


- Product level sight gauge


- Standard mounting legs and hardware - may require modification by customer


- 409 stainless steel with 2 component urethane primer and 2 component urethane top coat paint


METERING

- Individual venturi, open feed system


- (2) 304 stainless steel metering assemblies


- 8, 12 or 16 outlets


- 4 in. diameter, 12 groove, 304 stainless metering roller


- 400 lb./acre @ 6 MPH at 30 in. row spacing


- 40-650 lb. per acre metering range


- 2 in. ID flex hose


- Optional Rawson AccuRate® drive with hydraulic lines on hopper compatible with most GPS systems


- 2 in. ID flex hose


- 60 speed gearbox at 5% increments, or hydraulic motor metering drive for use with VRT


FAN

- Single inlet radial blade with 18" or 20" (for 16 and 18 outlet)


- Operates at 5500 RPM Fan outlet pressure of 32" water column


- 12 CC displacement hydraulic, axial piston motor


- 17 GPM hydraulic flow, case drain required


- 40-650 lb. per acre metering range


- 2 in. ID flex hose Optional Rawson AccuRate® drive with hydraulic lines on hopper compatible with most GPS systems 2 in. ID flex hose


- 60 speed gearbox at 5% increments, or hydraulic motor metering drive for use with VRT

HYDRAULIC REQUIREMENTS

- Requires 30-42 gpm @ 2800 psi (single fan or dual fan)

- Case drain required

- Hoses to tractor not included

OPTIONS

- Tow hitch for anhydrous ammonia carts

- Adaptor hitch for pickups
