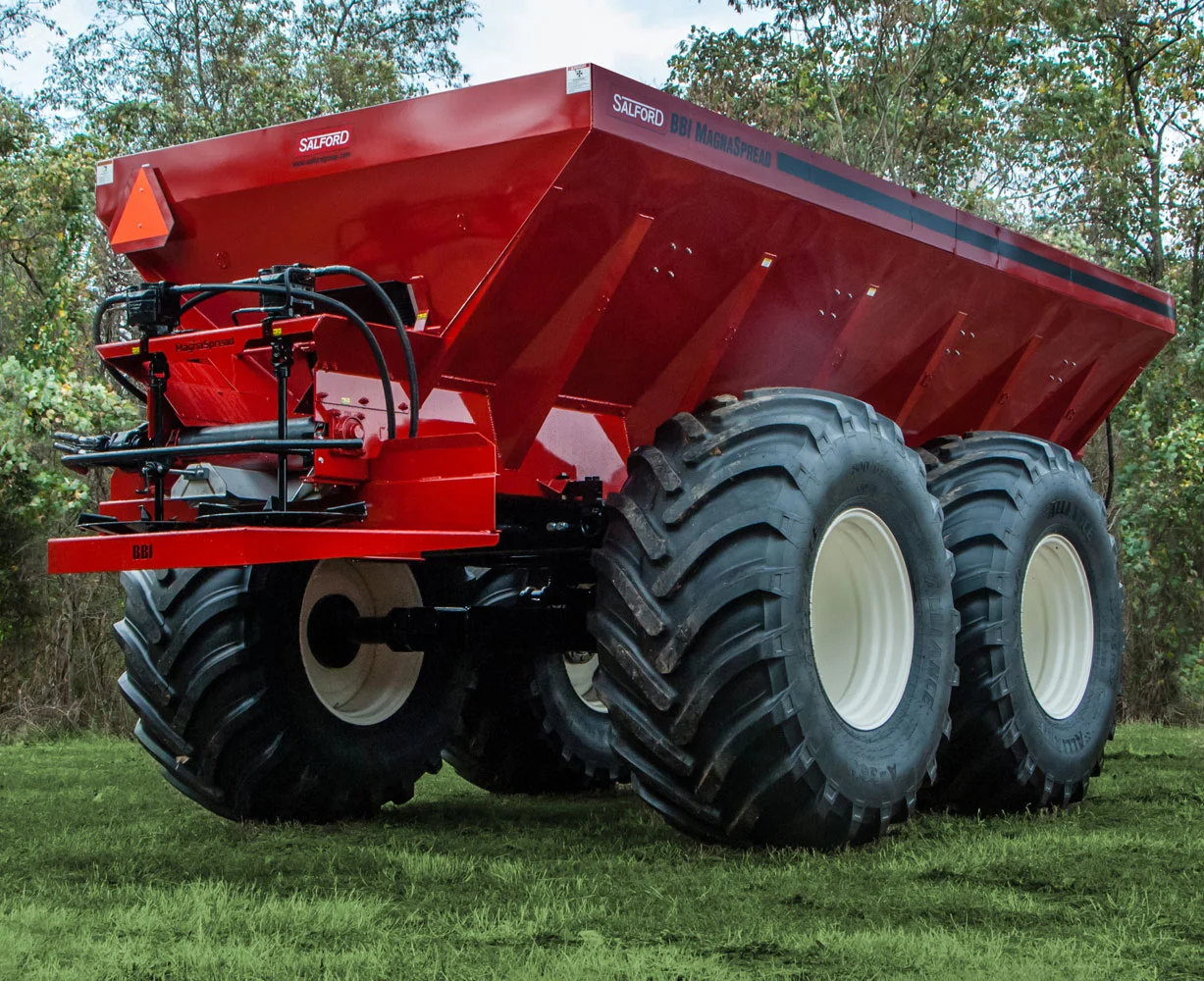

MagnaSpread Spinner Spreader

Application • Pull Type Spinner Spreaders

Features

Hydraulic Pull-type Fertilizer/Lime Spreader. Precision, power, performance. Spreads lime at up to 2 tons per acre at 14 mph with a 60-foot swath. Spreads fertilizer in 80-foot-plus swaths. Optimized for a variety of high-capacity farming applications. Equipped with Salford BBI’s Binary Manifold, making connections to your precision agriculture electronics a snap.

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve and Hy-Torque Manifold
• Series 6 CV joint PTO shaft
• Laser Cut Sight Window
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 16′ Stainless steel hopper with access ladder
• Over-slung center ‘V’
• 30″ Belt-Over-Bar chain Conveyor
• 14-Ton walking beam suspension with 21.5 x 16.1-14 ply tires
• Heavy-duty tongue jack
• Rear Tail Lights with Turn Signal, Side Makers
• Spreader pan test kit

Patented hydraulics control system – connectivity to all major precision agriculture technology brands

Variable Rate ready ISOBUS compatibility to most major precision control systems
Multiple factory-installed systems available

High quality JIC fittings & true hydraulic pipe
GR Valve – increasing chain speed
Hy-Torque manifold – increasing available spinner torque

Contact Us Form

"*" indicates required fields

Need some tech support?
Find your equipment's Manual here. Check out the How-To Videos page for tips and tricks on operating and maintaining your Salford equipment, and explore our How-To Blog posts for even more helpful resources.

First Name * Last Name *

Phone Number*

Email*

State/Provice*

Postal code*

How can we help you?*

Salford Model Line*

Serial Number

Message to Salford

This field is for validation purposes and should be left unchanged.

Specs Compare

Product Specs

Series	BBI
Product type	Pull Type Spinner Spreaders
Model	MagnaSpread 16 ft
Size	16 ft (4.88 m)

Dimensions and Weights

Metering and Drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline Choice: Tractor Supplied Hydraulics for MagnaSpread* *Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.
Material Distribution Booms/Spinners/Air Line	24 inch dished spinner design for precision coverage Stainless steel spinners, fins and spread shield
Application Swath Width, ft (m)	Lime: Up to 60 feet (18.29 meters) Fert: Up to 80 feet (24.38 meters)
Material Distribution Drive	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics
Metering Drive	Tandem conveyor drive gearbox Standard: High Speed Conveyor Valve
Primary Metering	Standard: 30 inch Belt-Over-Bar Chain Optional: 20 inch Stainless Steel Mesh Chain
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	N/A

Compare

Select up to 3 products to compare specifications

MagnaSpread Spinner Spreader

Add Model & Size

Choose Model & Size

1 2

Product Specs

Series	BBI
Product type	Pull Type Spinner Spreaders
Model	MagnaSpread 16 ft
Size	16 ft (4.88 m)

Dimensions and Weights

Metering and Drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline Choice: Tractor Supplied Hydraulics for MagnaSpread* *Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.
Material Distribution Booms/Spinners/Air Line	24 inch dished spinner design for precision coverage Stainless steel spinners, fins and spread shield
Application Swath Width, ft (m)	Lime: Up to 60 feet (18.29 meters) Fert: Up to 80 feet (24.38 meters)
Material Distribution Drive	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics
Metering Drive	Tandem conveyor drive gearbox Standard: High Speed Conveyor Valve
Primary Metering	Standard: 30 inch Belt-Over-Bar Chain Optional: 20 inch Stainless Steel Mesh Chain
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	N/A

Specification Details & Conditions:

Specifications are subject to change without notice. All weights, dimensions, and other specification values listed are for standard equipment. Optional features, configurations, and machine settings may alter these values, including transport dimensions. Where specifications vary by equipment setting, the minimum value will be used unless otherwise stated. For the most accurate and up-to-date information, please contact your dealer or our customer support team.

Explore More

Testimonials

Application • Pull Type Spinner Spreaders • BBI • Compost/Manure Application • Fertilizer Application • Lime Application

Saskatchewan, Canada

Feb 03, 2022

Application • Pull Type Spinner Spreaders • BBI • Crop Protection Application • Fertilizer Application

"I’m really impressed with the uniformity, it spreads 80ft wide and it overlaps very little..."

Ontario, Canada

Oct 06, 2022

Downloads

BBI Literature

English

Click to Download

BBI Literature

French

Click to Download

PARTS AND SERVICE

Parts Look-up

Click Here to Look-Up Parts

Working width, ft (m)	-
Transport width, ft (m)	9 ft 8 in (2.94 m) with Standard Tires
Transport height, ft (m)	9 ft 4 in (2.84 m) with high profile, tarp and 710 tires
Approximate weight, lb (kg)	-
Other sizes available, number of capacities	320 cu-ft (9.06 cu-m) Standard Hopper or 352 cu-ft (9.97 cu-m) High Hopper

Fertilizer	YES
AG Lime	YES
Litter	NO
Organics	NO
Seed	NO
Other	-
Number of products applied, including optional hopper compartments	1

Hopper Size	16 ft (4.88 m) Standard Hopper 320 cu-ft (9.06 cu-m) 16 ft (4.88 m) High Hopper 352 cu-ft (9.97 cu-m)
Hopper Material	Standard: 409 Stainless Steel, Painted or 304 Stainless Steel
Hopper Extensions	Standard: No Extension Brackets Optional: Extension Brackets with 6 inch wood boards
Hopper Gate Control	Jack Operated Gate
Hopper Ladder	Standard
Hopper "Inverted V"	Standard: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.
Hopper Sight Window	Standard Sight Window

Transport wheel mounting	Standard: 14-Ton Tandem walking beam suspension (21.5 x 16.1-14 ply tires, 10 bolt hubs and wheels) Optional: 20 Ton Walking Beam Suspension Upgrade (800/65R32 Tire and 10 bolt Hub includes Tubular Trailer Frame
Transport tires	Standard: 21.5 x 16.1 R3 Flotation Tire and 10 Bolt Hub or 21.5 x 16.1 Ribbed Flotation Tire and 10 Bolt Hub or 800/65R32 Tires on a bolt Hub (Requires 20 Ton Walking Beam and Standard on 20 Ton Walking Beam) Optional: 550/60-22.5 Tires and 10bolt Hub in lieu of 21.5 x 16.1 or 710/40-22.5 Tires and 10-Bolt Hub in lieu of 21.5 x 16.1

Hookup to tractor, mounted or pull-type	Pull-type - Standard: CAT 4 Cast Hitch - Large size - 106,000 lb Draft Load (Pintle, Clevis and Hitch Bracket and Heavy-duty Jack) Optional: Articulating Hitch
Jack	Heavy-duty tongue jack
