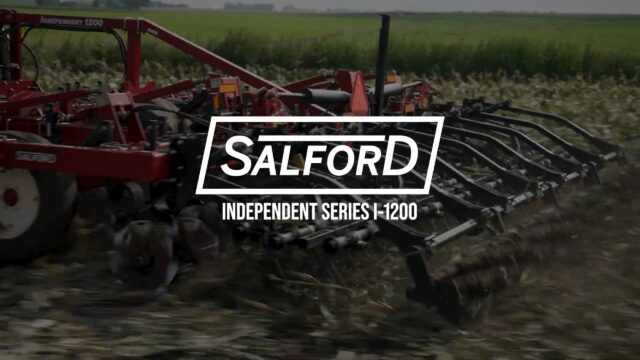

Independent Series I-1200

Features

Set your highest field standard with the I-1200. The second model in Salford’s Independent Series, the I-1200 creates the finest seedbeds, taking field prep and performance to the next level. This true vertical tillage machine is designed with 5” blade spacing that gives the I-1200 forty percent more blades and more weight compared to the I-1100. The tighter blade spacing makes the I-1200 capable of more mechanical weed control than most Independent Series tools. The leveling power of this model delivers superior surface tillage and residue management and does a superior job of sizing and incorporating residue.

Salford I-Series Indpendent BladesThe Independent Series I-1200 uses a 1 1/4-inch Coil-Tech Coulter I Mount with 20-inch blades constructed from high-quality boron steel for durability and longevity. The I-1200 features multiple blade configurations using 8-wave blades, 13-wave blades, or a combination of the two. The independently mounted blades are capable of 6 inches of vertical travel providing excellent obstacle protecting and allows for the implement to travel at speeds of 8-12 mph. The I-1200’s tighter 5-inch blade spacing leaves a level field finish which improves planting, spraying, and harvesting operations by creating a smoother ride.

Salford Coil-Tech Coulter Blade Hub Expanded to show it's internal seals, bearings and other components.Built tougher than competitors bearing systems. The hub can be greased and serviced, allowing for a longer life and lower operating costs. A 100-hour grease interval means you don’t spend long working on it. The double tapered cup and cone bearings handle side loads for operating in tough conditions. A multi-lip grease seal, grass wrap wear guard and blade scraper protect the hub and seals, even in wet and abrasive soil types.

Salford's I-Series tools have a sealed frame, with welded end caps for increased durability and longevity.Single point depth control, and the hydraulic level lift frame make the I-Series machines simple to set and operate. The 4-inch by 6-inch tubular steel frame is sealed with welded end caps to added strength and durability.
The single point depth setting allows operators to quickly adjust for varying field conditions.
The hydraulic level lift frame keeps the lifting cylinders in sync when changing depth and raising/lowering the machine. This ensures that all blades are achieving the same working depth and providing a level field finish and optimal planting conditions.

Salford 3 Bar Harrow and Rolling Basket and Finishing SystemThe I-1200 comes standard with a 14-inch diameter rolling basket and 3 rows of ½-inch diameter, 20-inch length harrows. The rolling basket provides improved re-sizing of soil clods and help to condition and anchor residue to the surface, helping to reduce erosion. Rolling basket pressure can be quickly adjusted with a spring tension system.
The tine harrows are mounted on a parallel linkage which can be adjusted to multiple pitch settings for maximum down pressure and contouring to level and distribute residue.

Salford I-Series I-4200 with tow-hitch pulling packerSelect I-Series tools can be equipped with an optional tow hitch. The “one person” hitch is easy to connect to and features light wiring and connects with ease.
The hitch can be equipped with hydraulic lines for hydraulic fold and hydraulic powered implements.

Salford's Valmar 6056 with Salford I-4200 hi-bred vertical tillage machine

Salford I-Series tools prepare excellent seedbeds. This makes them an ideal for cover crop seeding with Salford’s Valmar 4056 and 6056 granular applicators. Seed cover crops at lower rates knowing you’ll have improved germination, while you’re managing residue and soil density.

Product Specs

Series
Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage - - - - - -
Product Type
Independent Series Independent Series Independent Series HALO HALO - - - - - -
Model
I-1200 I-1200 I-1200 I-1200 I-1200 I-1200 I-1200 I-1200 I-1200 I-1200 I-1200
Size
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft* Bi-Folding 50 ft 60 ft
Folding (Multi-Section) or Non-Folding
Non-Folding Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section)
Fold Type
N/A 3pc Flat Fold Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Bi-Fold Wing Bi-Fold Wing Bi-Fold Wing

Dimensions and Weights

Working width, ft (m)
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft* Bi-Folding 50 ft 60 ft
Transport width, ft (m)
13 ft 3 in 11 ft 13 ft 3 in 13 ft 3 in 15 ft 8 in 15 ft 8 in 21 ft 21 ft 19 ft 19 ft 21 ft 10 in
Transport height, ft (m)
N/A 10 ft 11 ft 2 in 12 ft 8 in 13 ft 14 ft 6 in 14 ft 2 in 16 ft 6 in 13 ft 6 in 14 ft 3 in 15 ft 8 in
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
8425 lbs 11400 lbs 14360 lbs 16180 lbs 20145 lbs 20845 lbs 27250 lbs 29050 lbs 32465 lbs 37600 lbs 43000 lbs
Other sizes available, number of widths
12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft - - - - - - - -

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
2 2 2 1 1 - - - - - -
Front row(s) equipment quantity
14 18 44 57 69 73 85 97 97 119 145
Front row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts
Equipment spacing, in (mm)
5 in 5 in 5 in 5 in 5 in 5 in 5 in 5 in 5 in 5 in 5 in
Equipment size, in (mm)
20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in
Angle
Bearings
4 Bolt Double Tapered Roller Bearing with multi-lip seal 4 Bolt Double Tapered Roller Bearing with multi-lip seal 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Notched Low Concavity Blades Notched Low Concavity Blades - - - - - -
Rear row(s) ground engaging equipment (quantity)
2 2 - - - - - - - - -
Rear row(s) equipment quantity
15 19 45 42 48 - - - - - -
Rear row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 4pc rubber torsion suspension 4pc rubber torsion suspension 4pc rubber torsion suspension - - - - - -
Equipment spacing, in (mm)
5 in 5 in 10 in 10 in 10 in - - - - - -
Equipment size, in (mm)
20 in 20 in 22 in 22 in 22 in - - - - - -
Angle
17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle - - - - - -
Bearings
4 Bolt Double Tapered Roller Bearing with multi-lip seal 4 Bolt Double Tapered Roller Bearing with multi-lip seal Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs - - - - - -
Equipment options
- - - - - - - - - - -

Wheels and Tires

Transport wheel mounting
6-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 10-bolt 10-bolt 10-bolt
Transport tires
245/70 x 19.5 Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 445-65R x 22.5 Truck Tires (New)
Wing wheel mounting
N/A N/A 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 8-bolt 8-bolt
Wing tires
N/A N/A 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 305/70 x R22.5 Recappped Truck Tires 305/70 x R22.5 Recappped Truck Tires
Gauge wheel mounting
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Guage wheel tires
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in
Operating speed (mph)
8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph
Depth control
Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control
Fore/aft leveling
Turnbuckle hitch Turnbuckle hitch - - - - - - - - -

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft
Remote Hydraulic Values required
2 2 2 2 2 2 2 2 2 2 2
Hydraulic Pressure
- - - - - - - - - - -

Finishing Attachment Options

Option 1
1/2 inch by 20 inch Coil Tine & Single 14” Roller 1/2 inch by 20 inch Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller
Option 2
- - Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller - - - - - -
Option 3
- - - - - - - - - - -
Option 4
- - - - - - - - - - -

Compare

Select up to 3 products to compare specifications

Independent Series I-1200

Add Model & Size

Choose Model & Size

Product Specs

Series
Salford Tillage
Product Type
Independent Series
Model
I-1200
Size
12 ft
Folding (Multi-Section) or Non-Folding
Non-Folding
Fold Type
N/A

Dimensions and Weights

Working width, ft (m)
12 ft
Transport width, ft (m)
13 ft 3 in
Transport height, ft (m)
N/A
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
8425 lbs
Other sizes available, number of widths
12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
2
Front row(s) equipment quantity
14
Front row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts
Equipment spacing, in (mm)
5 in
Equipment size, in (mm)
20 in
Angle
Bearings
4 Bolt Double Tapered Roller Bearing with multi-lip seal

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave)
Rear row(s) ground engaging equipment (quantity)
2
Rear row(s) equipment quantity
15
Rear row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts
Equipment spacing, in (mm)
5 in
Equipment size, in (mm)
20 in
Angle
Bearings
4 Bolt Double Tapered Roller Bearing with multi-lip seal
Equipment options
-

Wheels and Tires

Transport wheel mounting
6-bolt
Transport tires
245/70 x 19.5 Tires
Wing wheel mounting
N/A
Wing tires
N/A
Gauge wheel mounting
N/A
Guage wheel tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-4 in
Operating speed (mph)
8-12 mph
Depth control
Single point depth control
Fore/aft leveling
Turnbuckle hitch

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft
Remote Hydraulic Values required
2
Hydraulic Pressure
-

Finishing Attachment Options

Option 1
1/2 inch by 20 inch Coil Tine & Single 14” Roller
Option 2
-
Option 3
-
Option 4
-
