Independent Series I-1100

Features

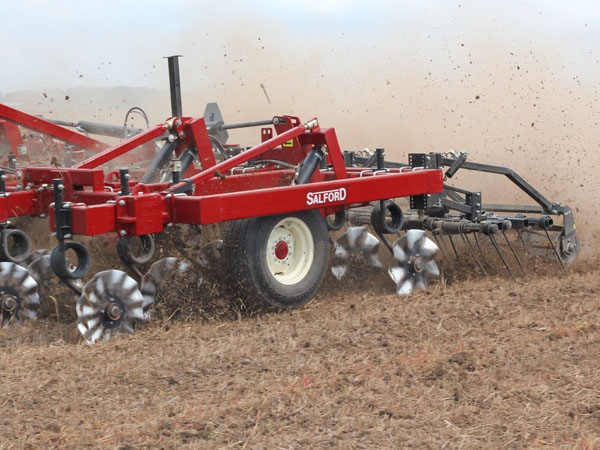

The first Salford true vertical tillage machine and inaugural Independent Series model, the I-1100 sets the standard for seedbed preparation and residue management. The I-1100 is the go-to conservation tillage tool for light to medium soils and medium to high residue. Originally known as the Residue Tillage Specialist (RTS), the I-1100 is equipped with the patented Coil-Tech Coulter that loosens compaction for improved root development and increased moisture storage. Build for performance, the durable I-1100 frame is the platform for the entire I-Series lineup of innovative tillage machines.

Salford I-Series Indpendent BladesThe Independent Series I-1100 uses a 1 1/4-inch Coil-Tech Coulter system with 20-inch blades constructed from high-quality boron steel for durability and longevity. The independently mounted blades allow the I-Series machines to operate in a wider range of soil moisture conditions and through large amounts of residue, with less risk of plugging. The I-1100 can be equipped with 8 wave blades for maximum residue management; 13 wave blades for improved ground penetration, or a combination of the two blade types. The blades are capable of 6 inches of vertical travel providing excellent obstacle protecting and allows for the implement to travel at speeds of 8-12 mph. The I-1100’s 7.5-inch blade spacing creates a mulch finish and warms spring soil, while maintaining soil structure to prevent erosion.

Salford Coil-Tech Coulter Blade Hub Expanded to show it's internal seals, bearings and other components.Built tougher than competitors bearing systems. The hub can be greased and serviced, allowing for a longer life and lower operating costs. A 100-hour grease interval means you don’t spend long working on it. The double tapered cup and cone bearings handle side loads for operating in tough conditions. A multi-lip grease seal, grass wrap wear guard and blade scraper protect the hub and seals, even in wet and abrasive soil types.

Salford's I-Series tools have a sealed frame, with welded end caps for increased durability and longevity.Single point depth control, and the hydraulic level lift frame make the I-Series machines simple to set and operate. The 4-inch by 6-inch tubular steel frame is sealed with welded end caps to added strength and durability.
The single point depth setting allows operators to quickly adjust for varying field conditions.
The hydraulic level lift frame keeps the lifting cylinders in sync when changing depth and raising/lowering the machine. This ensures that all blades are achieving the same working depth and providing a level field finish and optimal planting conditions.

Salford 3 Bar Harrow and Rolling Basket and Finishing SystemThe I-1100 comes standard with a 14-inch diameter rolling basket and 3 rows of ½-inch diameter, 20-inch length harrows.

The rolling basket provides improved re-sizing of soil clods and help to condition and anchor residue to the surface, helping to reduce erosion. Rolling basket pressure can be quickly adjusted with a spring tension system.
The tine harrows are mounted on a parallel linkage which can be adjusted to multiple pitch settings for maximum down pressure and contouring to level and distribute residue.

Salford's Valmar 6056 with Salford I-4200 hi-bred vertical tillage machineSalford I-Series tools prepare excellent seedbeds. This makes them an ideal for cover crop seeding with Salford’s Valmar 4056 and 6056 granular applicators. Seed cover crops at lower rates knowing you’ll have improved germination, while you’re managing residue and soil density.

Product Specs

Series
Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage - - - - - -
Product Type
Independent Series Independent Series Independent Series Independent Series Independent Series - - - - - -
Model
I-1100 I-1100 I-1100 I-1100 I-1100 I-1100 I-1100 I-1100 I-1100 I-1100 I-1100
Size
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft 50 ft 60 ft
Folding (Multi-Section) or Non-Folding
Non-Folding Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section)
Fold Type
N/A 3pc Flat Fold Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Single-Fold Wing Bi-Fold Wing Bi-Fold Wing Bi-Fold Wing

Dimensions and Weights

Working width, ft (m)
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft 50 ft 60 ft
Transport width, ft (m)
13 ft 3 in 11 ft 13 ft 3 in 13 ft 3 in 15 ft 8 in 15 ft 8 in 21 ft 21 ft 18 ft 9 in 19 ft 21 ft 10 in
Transport height, ft (m)
N/A 10 ft 11 ft 2 in 12 ft 8 in 13 ft 14 ft 6 in 14 ft 2 in 16 ft 6 in 13 ft 6 in 14 ft 3 in 15 ft 8 in
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
7400 lbs 9900 lbs 12610 lbs 14400 lbs 17550 lbs 18250 lbs 23805 lbs 24500 lbs 29100 lbs 33600 lbs 39200 lbs
Other sizes available, number of widths
- - - - - - - - - - -

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
1 1 1 1 1 - - - - - -
Front row(s) equipment quantity
19 25 33 37 45 49 57 65 65 79 97
Front row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts 1 1/4in Coil-Tech I Blade Mounts
Equipment spacing, in (mm)
7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in
Equipment size, in (mm)
20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in 20 in
Angle
Bearings
4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing 4 Bolt Double Tapered Roller Bearing

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Notched Low Concavity Blades Notched Low Concavity Blades Notched Low Concavity Blades Notched Low Concavity Blades Notched Low Concavity Blades - - - - - -
Rear row(s) ground engaging equipment (quantity)
- - - - - - - - - - -
Rear row(s) equipment quantity
24 30 36 42 48 - - - - - -
Rear row(s) equipment mount
4pc rubber torsion suspension 4pc rubber torsion suspension 4pc rubber torsion suspension 4pc rubber torsion suspension 4pc rubber torsion suspension - - - - - -
Equipment spacing, in (mm)
10 in 10 in 10 in 10 in 10 in - - - - - -
Equipment size, in (mm)
22 in 22 in 22 in 22 in 22 in - - - - - -
Angle
17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle 17° open angle and 4° tipped under angle - - - - - -
Bearings
Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs Multi-lip sealed, maintenance free rebuildable hubs - - - - - -
Equipment options
- - - - - - - - - - -

Wheels and Tires

Transport wheel mounting
6-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 10-bolt 10-bolt 10-bolt
Transport tires
245/70 x 19.5 Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Truck Tires (New)
Wing wheel mounting
N/A N/A 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 8-bolt 8-bolt
Wing tires
N/A N/A 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 245/70 x 19.5 Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires
Gauge wheel mounting
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Guage wheel tires
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in 0-4 in
Operating speed (mph)
8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph
Depth control
Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control
Fore/aft leveling
- - - - - - - - - - -

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft
Remote Hydraulic Values required
2 2 2 2 2 2 2 2 2 2 2
Hydraulic Pressure
- - - - - - - - - - -

Finishing Attachment Options

Option 1
Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller
Option 2
Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller Otico Wave-Profile FarmFlex Roller - - - - - -
Option 3
- - - - - - - - - - -
Option 4
- - - - - - - - - - -

Compare

Select up to 3 products to compare specifications

Independent Series I-1100

Add Model & Size

Choose Model & Size

Product Specs

Series
Salford Tillage
Product Type
Independent Series
Model
I-1100
Size
12 ft
Folding (Multi-Section) or Non-Folding
Non-Folding
Fold Type
N/A

Dimensions and Weights

Working width, ft (m)
12 ft
Transport width, ft (m)
13 ft 3 in
Transport height, ft (m)
N/A
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
7400 lbs
Other sizes available, number of widths
-

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
1
Front row(s) equipment quantity
19
Front row(s) equipment mount
1 1/4in Coil-Tech I Blade Mounts
Equipment spacing, in (mm)
7.5 in
Equipment size, in (mm)
20 in
Angle
Bearings
4 Bolt Double Tapered Roller Bearing

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Notched Low Concavity Blades
Rear row(s) ground engaging equipment (quantity)
-
Rear row(s) equipment quantity
24
Rear row(s) equipment mount
4pc rubber torsion suspension
Equipment spacing, in (mm)
10 in
Equipment size, in (mm)
22 in
Angle
17° open angle and 4° tipped under angle
Bearings
Multi-lip sealed, maintenance free rebuildable hubs
Equipment options
-

Wheels and Tires

Transport wheel mounting
6-bolt
Transport tires
245/70 x 19.5 Tires
Wing wheel mounting
N/A
Wing tires
N/A
Gauge wheel mounting
N/A
Guage wheel tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-4 in
Operating speed (mph)
8-12 mph
Depth control
Single point depth control
Fore/aft leveling
-

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft
Remote Hydraulic Values required
2
Hydraulic Pressure
-

Finishing Attachment Options

Option 1
Coil Tine & Single 14” Roller
Option 2
Otico Wave-Profile FarmFlex Roller
Option 3
-
Option 4
-
