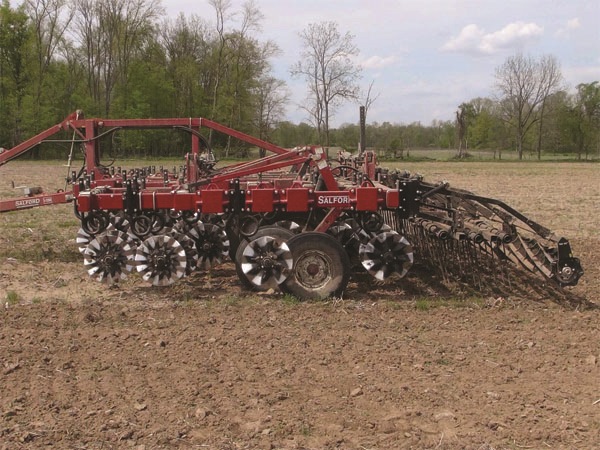

INDEPENDENT 1200

COIL-TECH I, 5" BLADE SPACING

Superior Seedbed Preparation

Designed for the finest surface tillage available, the I-1200 uses the Coil-Tech Coulter I, 1 1/4” independent blade mounting system, to carry blades on the five-inch spacing. The I-1200 model averages 40 percent more blades and 39 percent more weight per machine than the standard I-1100, which uses seven-inch blade spacing and a lighter frame.

The I-1200 creates the finest seedbeds and does a superior job of sizing and incorporating residue. The tighter blade spacing also makes the I-1200 capable of more mechanical weed control than most Independent Series tools.

Using the Coil-Tech I blade mount, the I-1200 still features jackhammer vibration that reduces soil density below the working depth to improve air and moisture storage capacity in the soil. Salford’s patented independent blade mounting systems also feature industry-leading residue flow and obstacle protection to stand up to high-speed operation. The three-bar, half-inch tine harrows and 14-inch rolling basket provide exceptional leveling performance.



Standard Features

Coulters and Mounts

  •   20” dia x 4.5mm coulter
  • Boron steel blades
  • 8 or 13 wave blades
  • 6” of vertical travel

Frame

  • Heavy Duty 4”x 6” tubing
  • Hydraulic level lift
  • Hydraulic single-point depth control
  • Heat treated cast clevis hitch
  • Operator convenience center
  • Welded main frame with capped tube ends

Tires—Mainframe

  • 12’ 6 bolt 11L x 15 “F”
  • 16’ Dul 6 Bolt 11L x 15 “F”
  • 20’ – 24’  8 bolt 12.5 L x 15 “F”
  • 28’ -  36’ 8 bolt 305/70 x R22.5
  • 41’ (3 Section) 8 bolt 305/70 x R22.5
  • 41’ (5 Section) 8 bolt 425/65 x R22.5
  • 50’  (5 Section) 10 bolt 425-65R x 22.5
  • 60’ (5 section) – 10 bolt 445-65R x 22.5

Tires—Wings

  • 20’ – 41’ All Wings
  • 11L x 15 6 bolt load range “D"
  • 50’, 60’ – All Wings
  • 8 bolt 12.5 L x 15 “F”

OPTIONAL EQUIPMENT

  • 100-lb. weight kits
  • Adjustable tow hitch (one-man connection)
  • Hydraulic lines and quick coupler to tow hitch
  • Axle pivot grease bank
  • Switchblade Hydraulic Shank

Harrows

Finishing Package Consist of:

Heavy Duty 3 bar 1/2” tines

  • 1/2” dia. tine, strength for exceptional leveling
  • 3 ranks with 20” clearance
  • No tool pitch adjustment

Heavy Duty 14” Rolling Harrow

  • Adjustable down pressure
  • Triple seal 1.5” bearing resists rock damage, even at high speed
  • Flex Finish Hydraulically Adjustable Rolling Harrow (Optional)


Specifications

I-1200 Independent Series
Size Frame Sections COIL TECH i
# of Coulters
Transport Height Transport Width Approx. weight
with Harrows
H.P. Required*
12' (3.66 m) 3 29 No wings 13'3" (4.04 m) 7,900 lbs (3.58 t) 120-170
16' (4.88 m) 3-Flat Fold 37 10' (3.05 m) 10' (3.05 m) 11,400 lbs (5.17 t) 160-220
20' (6.10 m) 3 49 11'2" (3.40 m) 13'3" (4.04 m) 13,400 lbs (6.08 t) 200-250
24' (7.32 m) 3 57 12'8" (3.86 m) 13'3" (4.04 m) 16,000 lbs (7.26 t) 240-340
28' (8.53 m) 3 69 13' (3.96 m) 15'8" (4.78 m) 19,200 lbs (8.71 t) 280-390
31' (9.45 m) 3 73 14'6" (4.42 m) 15'8" (4.78 m) 19,900 lbs (9.03 t) 310-430
36' (10.97 m) 3 85 14'2" (4.32 m) 21' (6.40 m) 24,300 lbs (11.02 t) 360-500
41' (12.50 m) 3 97 16'6"(5.03 m) 21' (6.40 m) 26,100 lbs (11.84 t) 410-570
41' (12.50 m) 5 Bi-fold 97 13'6" (4.12 m) 19' (5.79 m) 31,000 lbs (14.06 t) 410-570
50' (15.24 m) 5 Bi-fold 119 14'3" (4.34 m) 19' (5.79 m) 36,700 lbs (16.65 t) 500+
60' (18.29 m) 5 Bi-fold 145 15'8" (4.78 m) 21'10" (6.66 m) 43,000 lbs (19.50 t) 500+
*Horsepower requirements vary by speed and operating depth.
Switch Blade 1,300 lb (.59 T) Hyd. Shank Kits
Machine Size 15" (.38 m) Spacing
# of Shanks
15" (.38 m) Spacing
Fertilizer Coverage
20" (.51 m) Spacing
# of Shanks
20" (.51 m) Spacing
Fertilizer Coverage
30" (.76 m) Spacing
# of Shanks
30" (.76 m) Spacing
Fertilizer Coverage
12' (3.66 m) 9 11'3" (3.43 m) 5 12' (3.66 m)
16' (4.88 m) 11 13'9" (4.19 m) 6 15' (4.57 m)
20' (6.10 m) 15 16'3" (4.95 m) 8 17'6" (5.33 m)
24' (7.32 m) 17 21'3" (6.48 m) 9 22'6" (6.86 m)
28' (8.53 m) 21 26'3" (8.00 m) 11 27'6" (8.38 m)
31' (9.45 m) 23 28'9" (8.76 m) 17 30' (9.14 m) 12 30' (9.14 m)
36' (10.97 m) 27 33'9" (10.29 m) 14 35' (10.67 m)
41' (12.50 m) 31 38'9" (11.81 m) 24 41'7" (12.68 m) 16 40' (12.19 m)
41' (12.50 m) (5 sect) 31 38'9" (11.81 m) 24 41'7" (12.68 m) 16 40' (12.19 m)
50' (15.24 m) (5 sect) 39 48'9" (14.86 m) 29 50' (15.24 m) 19 47'6" (14.48 m)
60' (18.29 m) (5 sect) 47 58'9" (17.91 m) 23 57'6" (17.53 m)
Shank kits require an additional average of 3 horsepower per shank
