Are you interested in a quote or demonstration of the 5200 Enforcer?  Please fill out the form below and one of our Territory Managers will be in touch shortly.

5200 Enforcer Features

Fast & Aggressive – The 5200 ENFORCER expands on the capabilities of its predecessor, the I-5100, in tough field conditions.  The ENFORCER is engineered to level and uniformly mix soil and residue between 3” and 5”.  The redesigned blade layout increases the stability of the machine.

EVEN MORE CLEARANCE

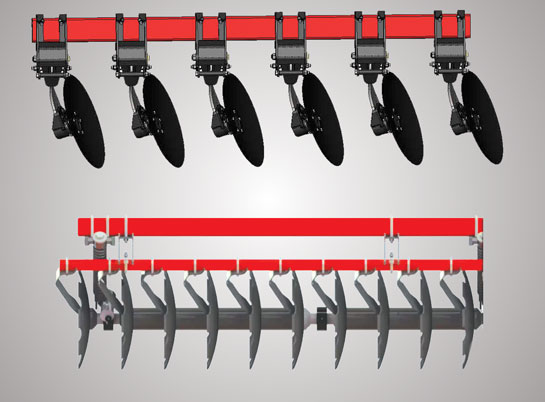

The patent pending rubber suspension blade mount has been completely redesigned to create even more clearance between the four rows of concave blades.  The four rows of blades on a deep frame give the 5200 ENFORCER much more clearance than compact, high speed discs.


COMPOUND BLADE ANGLE

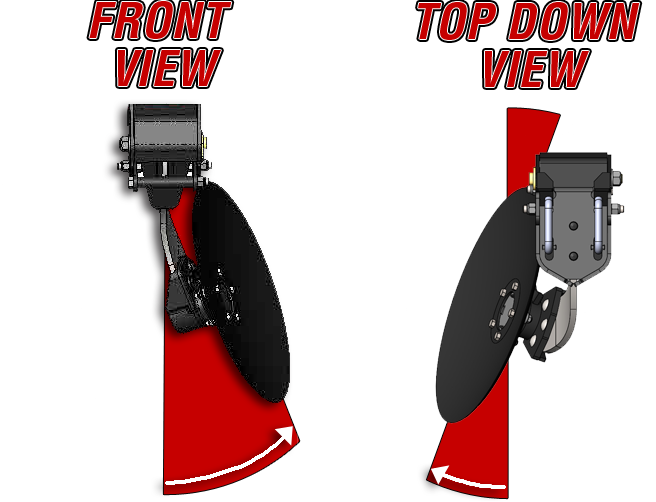

The 5200's patent pending rubber suspension blade mounts hold the blade on two angles; the first three rows are open faced similar to position the blade similar to the angled gang on a tandem disc.
The blades are also tipped under to create suction that holds the 5200 in the ground when going through hard soil.


FOUR ROWS OF BLADES, TWICE THE WORK

Four rows of concave blades replicate two passes with a tandem disc. The result is a superior residue blend and field finish in one pass that is often ready as a stale seedbed in the spring.




HIGH SPeed Operation

Go to top.



VIDEO

  sTANDARD: ADJUSTABLE TINE HARROW AND ROLLING  bASKET WITH RUBBER TORSION SUSPENSION



sTANDARD: ADJUSTABLE TINE HARROW AND ROLLING  bASKET WITH RUBBER TORSION SUSPENSION

oPTIONAL: Flexfinsih HYDRAULICALLY ADJUSTABLE TINE HARROW AND ROLLING  bASKET

oPTIONAL: Flexfinsih HYDRAULICALLY ADJUSTABLE TINE HARROW AND ROLLING  bASKET

HARROWS

Finishing Package

Finishing Package Consist of:

Heavy Duty 3 bar 1/2” tines

  • 1/2” dia. tine, strength for exceptional leveling
  • 3 ranks with 20” clearance
  •  No tool pitch adjustment

Heavy Duty 14” Rolling Harrow

  • Adjustable down pressure
  •  Triple seal 1.5” bearing resists rock damage, even at high speed
  • Flex Finish Hydraulically Adjustable Rolling Harrow (Optional)

Standard Features

Coulters and Mounts

  • 22” dia x 5 mm shallow concave discs (rubber mount)
  •  2 guide coulter 25’ x ¼’ (6.5 mm) flat smooth blade
  • 1 center coulter with 22’ x 8 wave blade
  • Boron steel blades
  •  5” of vertical travel

Frame

  • Heavy Duty 4” x 6” tubing
  • Hydraulic level lift
  • Hydraulic single-point depth control
  •  Heat treated cast clevis hitch
  • Operator convenience center
  • Welded main frame with capped tube ends

Tires—Mainframe

  •  12’ – 16’ Dual wheels
  • 19’ Dual wheels on main, single wheels on wings
  • 22’ -  29’ Dual wheels on main frame and wings
  • 36’ -  42’ Tandem wheels on main frame, dual on wings
  • Single fixed guage wheels on models 19’ – 42’ per wing
  • 12’ – 16’ 8 bolt 12.5L x “F”
  • 19’ – 29’ 8 bolt 305/70 x 22.5 Recapped Truck Tire
  • 36’ – 42‘ 10 bolt 425/65R x 22.5, Recapped Truck Tire

Tires—Wings

  • 19’ – 29’ All Wings
  • 11L x 15 6 bolt load range “D"
  • 36’ – 42’ All Wings
  • 8 bolt 12.5L x 15 “F”

OPTIONAL EQUIPMENT

  • 100-lb. weight kits
  • Adjustable tow hitch (one-man connection)
  • Hydraulic lines and quick coupler to tow hitch
  • Axle pivot grease bank

Go to top.

Specifications

I-5200
Configuration Specifications
Model Size Working Width # of Concave Blades* Transport Height Transport Width Approx. weight with Standard Harrows
12' (3.66 m) 12'1" (3.68 m) 28 No Wings 13'10" (4.22 m) 11,100 lbs (5.04 T)
16' (4.88 m)* * 15'5" (4.70 m) 36 9' (2.74 m) 11'6" (3.51 m) 15,600 lbs (7.08 T)
19' (5.79 m) 18'9" (5.72 m) 44 10'3" (3.12 m) 15'2" (4.62 m) 20,700 lbs (9.39 T)
22' (6.71 m) 22'1" (6.73 m) 52 12'4" (3.76 m) 15'2" (4.62 m) 22,800 lbs (10.34 T)
25' (7.62 m) 25'5" (7.75 m) 60 13'5" (4.09 m) 15'2" (4.62 m) 24,000 lbs (10.89 T)
29' (8.84 m) 28'9" (8.76 m) 68 14'7" (4.48 m) 15'2" (4.62 m) 27,900 lbs (12.66 T)
36' (10.97 m)** 35'5" (10.80 m) 84 14'6"(4.45m) 20'6" (6.25) 37,000 lbs (16.78 T)
39' (11.89 m) 38'9" (11.81 m) 92 15'11" (4.85 m) 20'6" (6.25 m) 38,200 lbs (17.24 T)

5200 Enforcer requires 15 - 20 horse power per foot. Power required varies by ground conditions, operating depth and speed.
* Blade count does not include 3 guide coulters per machine
**Split Wing Model
*** Bi-fold wings
* * 16' 3-pc Flat Fold
