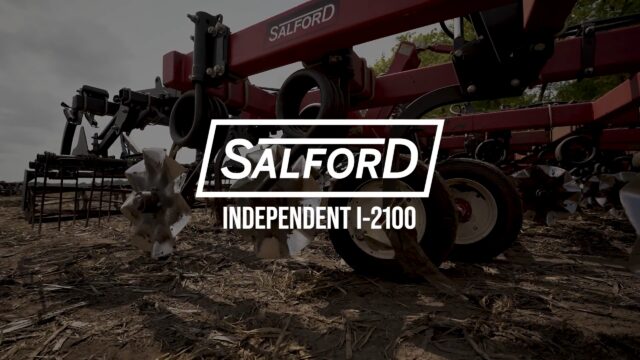

Independent Series I-2100

Features

Build for tougher ground conditions, the I-2100 is the next step up in Salford’s true vertical tillage Independent Series lineup. Built with the second-generation Coil-Tech technology, the Coil-Tech Coulter II offers a heavier coil spring to carry larger five-bolt hubs and 22” blades. This feature means the I-2100 can penetrate deeper into tougher ground conditions while managing fall residue and preparing spring seedbeds in wet or dry soils with no risk of plugging. Higher operating speeds translate to higher efficiencies as this machine is able to cover an acre per hour, per foot.

Salford I-Series Indpendent BladesThe Independent Series I-2100 uses a 1 5/8-inch Coil-Tech Coulter II Mount with 22-inch blades constructed from high-quality boron steel for durability and longevity. The larger blade mount and 5 bolt hubs allow the blades to penetrate deeper into tougher ground conditions. The I-2100 features multiple blade configurations using 8-wave blades, 13-wave blades, or a combination of the two. The independently mounted blades are capable of 6 inches of vertical travel providing excellent obstacle protecting and allows for the implement to travel at speeds of 8-12 mph. The I-2100’s 7.5-inch blade spacing creates a mulch finish and warms spring soil, while maintaining soil structure to prevent erosion.



Salford Coil-Tech Coulter Blade Hub Expanded to show it's internal seals, bearings and other components.Built tougher than competitors bearing systems. The hub can be greased and serviced, allowing for a longer life and lower operating costs. A 100-hour grease interval means you don’t spend long working on it. The double tapered cup and cone bearings handle side loads for operating in tough conditions. A multi-lip grease seal, grass wrap wear guard and blade scraper protect the hub and seals, even in wet and abrasive soil types.

Salford's I-Series tools have a sealed frame, with welded end caps for increased durability and longevity.The I-2100’s heavy duty construction uses a 4-inch by 6-inch tubular steel frame that provide in-field stability and durability. Depth can be easily set to adjust for varying field conditions with the single point depth control. In extremely tough soil conditions, optional 100 lbs weight kits can be added to the machine to achieve optimal ground penetration. The hydraulic level lift frame keeps the lifting cylinders in sync when changing depth and raising/lowering the machine. This ensures that all blades are achieving the same working depth and providing a level field finish and optimal planting conditions.

Salford I-Series finishing options. The half inch harrow tines and 14 inch rolling basket, with manual adjustments, or hydraulic controllsThe I-2100 comes standard with a 14-inch diameter rolling basket and 3 rows of ½-inch diameter, 20-inch length harrows. The rolling basket provides improved re-sizing of soil clods and help to condition and anchor residue to the surface, helping to reduce erosion. The tine harrows are mounted on a parallel linkage which can be adjusted to multiple pitch settings for maximum down pressure and contouring to level and distribute residue. Both the rolling baskets and tine harrows can be adjusted hydraulically with the Flex Finish option allowing you to adjust to varying field conditions from the cab.

Salford I-Series I-4200 with tow-hitch pulling packerSelect I-Series tools can be equipped with an optional tow hitch. The “one person” hitch is easy to connect to and features light wiring and connects with ease.
The hitch can be equipped with hydraulic lines for hydraulic fold and hydraulic powered implements.

Salford I-Series ShankThe I-2100 is capable of being configured with Salford’s SwitchBlade Shank Kits. Shank kits can be on 15 inch or 30 inch centers. A machine with shanks on 15-inch spacing for chisel operation can lift every second shank for 30-inch fertilizer application.

Salford's Valmar 6056 with Salford I-4200 hi-bred vertical tillage machineSalford I-Series tools prepare excellent seedbeds. This makes them an ideal for cover crop seeding with Salford’s Valmar 4056 and 6056 granular applicators. Seed cover crops at lower rates knowing you’ll have improved germination, while you’re managing residue and soil density.

Product Specs

Series
Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage Salford Tillage
Product Type
Independent Series Independent Series Independent Series Independent Series HALO Independent Series Independent Series Independent Series Independent Series Independent Series Independent Series
Model
I-2100 I-2100 I-2100 I-2100 I-2100 I-2100 I-2100 I-2100 I-2100 I-2100 I-2100
Size
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft* Bi-Folding 50 ft 60 ft
Folding (Multi-Section) or Non-Folding
Non-Folding Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section) Folding (Multi-Section)
Fold Type
N/A 3pc Flat Fold Single-Fold Wings Single-Fold Wings Single-Fold Wings Single-Fold Wings Single-Fold Wings Single-Fold Wings Bi-Fold Wings Bi-Fold Wings Bi-Fold Wings

Dimensions and Weights

Working width, ft (m)
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft 41 ft* Bi-Folding 50 ft 60 ft
Transport width, ft (m)
13 ft 3 in 11 ft 13 ft 3 in 13 ft 3 in 15 ft 8 in 15 ft 8 in 21 ft 21 ft 19 ft 19 ft 21 ft 10 in
Transport height, ft (m)
N/A 10 ft 11 ft 2 in 12 ft 8 in 13 ft 14 ft 6 in 14 ft 2 in 16 ft 6 in 13 ft 6 in 14 ft 3 in 15 ft 8 in
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
8425 lbs 11400 lbs 14360 lbs 16180 lbs 20145 lbs 20845 lbs 27250 lbs 29050 lbs 32465 lbs 37600 lbs 43000 lbs
Other sizes available, number of widths
12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft 12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
2 2 2 2 2 2 2 2 2 2 2
Front row(s) equipment quantity
9 12 16 18 22 44 28 32 32 39 48
Front row(s) equipment mount
1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts
Equipment spacing, in (mm)
7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in
Equipment size, in (mm)
22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in
Angle
Bearings
5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Notched Low Concavity Blades Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave)
Rear row(s) ground engaging equipment (quantity)
2 2 2 2 2 2 2 2 2 2 2
Rear row(s) equipment quantity
10 13 17 19 23 45 29 33 33 40 49
Rear row(s) equipment mount
1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts
Equipment spacing, in (mm)
7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in 7.5 in
Equipment size, in (mm)
22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in 22 in
Angle
-
Bearings
5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal 5 bolt hub with double tapered roller bearings and multi-lip seal
Equipment options
- - - - - - - - - - -

Wheels and Tires

Transport wheel mounting
6-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 10-bolt 10-bolt
Transport tires
11L x 15 “F” Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 425-65R x 22.5 Recapped Truck Tires 445-65R x 22.5 Truck Tires (New)
Wing wheel mounting
N/A N/A 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 8-bolt 8-bolt
Wing tires
N/A N/A 11L x 15 load range “D” 245 70r 19.5 245 70r 19.5 245 70r 19.5 11L x 15 load range “D” 305/70 x R22.5 Recapped Truck Tires 305/70 x R22.5 Recapped Truck Tires 8 Bolt 305/70 x R22.5 Recapped Truck Tires 8 Bolt 305/70 x R22.5 recapped truck tires
Gauge wheel mounting
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Guage wheel tires
N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in 0-5 in
Operating speed (mph)
8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph
Depth control
Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control
Fore/aft leveling
Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch Turnbuckle hitchd Turnbuckle hitch Turnbuckle hitch Turnbuckle hitch

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft 12 hp/ft
Remote Hydraulic Values required
2 2 2 2 2 2 2 2 2 2 2
Hydraulic Pressure
- - - - - - - - - - -

Finishing Attachment Options

Option 1
Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller
Option 2
Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller
Option 3
Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller
Option 4
Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller

Compare

Select up to 3 products to compare specifications

Independent Series I-2100

Add Model & Size

Choose Model & Size

Product Specs

Series
Salford Tillage
Product Type
Independent Series
Model
I-2100
Size
12 ft
Folding (Multi-Section) or Non-Folding
Non-Folding
Fold Type
N/A

Dimensions and Weights

Working width, ft (m)
12 ft
Transport width, ft (m)
13 ft 3 in
Transport height, ft (m)
N/A
Approximate weight, lb (kg) (w/ Standard harrows unless stated otherwise)
8425 lbs
Other sizes available, number of widths
12 ft, 16 ft, 20 ft, 24 ft, 28 ft, 31 ft, 36 ft, 41 ft, 50 ft, 60 ft

Ground Engaging Equipment - Front Row(s)

Front row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave)
Front row(s) ground engaging equipment (quantity)
2
Front row(s) equipment quantity
9
Front row(s) equipment mount
1 5/8in Coil-Tech II Blade Mounts
Equipment spacing, in (mm)
7.5 in
Equipment size, in (mm)
22 in
Angle
Bearings
5 bolt hub with double tapered roller bearings and multi-lip seal

Ground Engaging Equipment - Rear Row(s)

Rear row(s) ground engaging equipment (description)
Wavy Coulters (8 or 13 Wave)
Rear row(s) ground engaging equipment (quantity)
2
Rear row(s) equipment quantity
10
Rear row(s) equipment mount
1 5/8in Coil-Tech II Blade Mounts
Equipment spacing, in (mm)
7.5 in
Equipment size, in (mm)
22 in
Angle
Bearings
5 bolt hub with double tapered roller bearings and multi-lip seal
Equipment options
-

Wheels and Tires

Transport wheel mounting
6-bolt
Transport tires
11L x 15 “F” Tires
Wing wheel mounting
N/A
Wing tires
N/A
Gauge wheel mounting
N/A
Guage wheel tires
N/A

Hitch

Hookup to tractor, mounted or pull-type
Category 3 or Category 4 Hitch

Depth and Level Adjustment

Typical operating depth, in (mm)
0-5 in
Operating speed (mph)
8-12 mph
Depth control
Single point depth control
Fore/aft leveling
Turnbuckle hitch

Tractor Requirements

Required power, hp/ft (kw/m)
12 hp/ft
Remote Hydraulic Values required
2
Hydraulic Pressure
-

Finishing Attachment Options

Option 1
Coil Tine & Single 14” Roller
Option 2
Hydraulic Adjust Coil Tine & Manual 14" Roller
Option 3
Manual Coil Tine & Hydraulic Lift Roller
Option 4
Hyd. Adjust Coil Tine & Hydraulic Lift Roller
