INDEPENDENT 4200

1 5/8" COIL-TECH COULTER II BLADE MOUNT

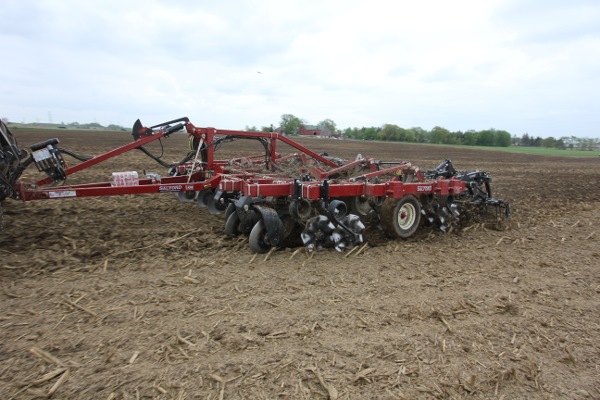

The I-4200 is one of Salford’s next generation, patented, hybrid vertical tillage tools.  Designed to combine the residue mixing capabilities of a disc with the field finish characteristics of a cultivator – the Salford I-4200 has it all.

The I-4200 has 5 inch blade spacing overall, with two rows of 22 inch concave blades followed by two rows of 22 inch wavy coulters.  The coulters are carried by the heavy Coil-Tech II blade mount that improve Salford’s ground penetration while maintaining the industry leading clearance and obstacle protection.

The front two rows of concave blades have the power to level ruts and maximize residue incorporation. The rear two rows of 22 inch wavy blade coulters improve residue sizing and incorporation, accelerating residue break down and warming seedbeds.  This superior seedbed preparation improves planter seed placement, promoting more even, rapid, germination without creating density layers that can slow and stunt plant growth.  The combination of independently mounted blade types provides effective mechanical weed control, stronger performance in high-residue or wet conditions compared to compact discs or disc gang-style VT machines.

The I-4200 can be equipped with Salford’s FlexFinish hydraulically adjustable attachments for additional versatility.  FlexFinish hydraulically adjustable tine harrows and rolling baskets allow the finishing attachments to be adjusted to residue volume and varying field moisture without leaving the cab.



Harrows

Finishing Package

Finishing Package Consist of:

Heavy Duty 3 bar 1/2” tines

  • 1/2” dia. tine, strength for exceptional leveling
  • 3 ranks with 20” clearance
  • No tool pitch adjustment

Heavy Duty 14” Rolling Harrow

  • Adjustable down pressure
  • Triple seal 1.5” bearing resists rock damage, even at high speed
  •  Flex Finish Hydraulically Adjustable Rolling Harrow (Optional)

Standard Features

Coulters and Mounts

  • Front:22” dia a 5 mm shallow concave discs (rubber mount)
  •  Rear:  22” dia x 5mm 8 wave coulter (coil Mount)
  •  Boron steel blades
  • 5” of vertical travel

Frame

  • Heavy Duty 4”x 6” tubing
  • Hydraulic level lift
  •  Hydraulic single-point depth control
  • Heat treated cast clevis hitch
  • Operator convenience center
  •  Welded main frame with capped tube ends

Tires—Mainframe

  • 12’ 6 bolt 11L x 15 “F”
  • 16’ -  31’ 8 bolt 305/70 x R22.5
  • 36’ - 41’ (3 Section) 8 bolt 425/70 x R22.5
  •  41’ (5 Section) 10 bolt 425/65R x 22.5
  • 50’  (5 Section) 10 bolt 445-65R x 22.5

Tires—Wings

  • 20’ – 41’ All Wings
  • 11L x 15 6 bolt load range “D"
  • 50’ – All Wings
  • 305/70R x 22.5 8 bolt tires

OPTIONAL EQUIPMENT

  • 100-lb. weight kits
  • Adjustable tow hitch (one-man connection)
  • Hydraulic lines and quick coupler to tow hitch
  • Axle pivot grease bank





Specifications

I-4200 Independent Series
Size Frame Sections # of Concave/
Coulter Blades
Transport Height Transport Width Approx. weight
with harrows
H.P. Required*
12'(3.66 m) 1 9/20 No wings 13'3" (4.04 m) 10,500 lbs
(4.76 T)
150-200
16' (4.88 m) 3 11/26 10' (3.05 m) 10' (3.05 m) 14,300 lbs
(6.49 t)
210-260
20' (6.10 m) 3 15/34 11'2" (3.40 m) 13'10" (4.22 m) 17,400 lbs
(7.89 t)
260-320
24'(7.32 m) 3 17/40 12'8" (3.86 m) 13'3" (4.04 m) 19,650 lbs
(8.91 T)
320-390
28' (8.53 m) 3 21/48 13' (3.96 m) 15'8" (4.78 m) 24,100 lbs
(10.93 T)
370-450
31' (9.45 m) 3 23/50 14'6" (4.42 m) 15'8" (4.78 m) 24,800 lbs
(11.25 T)
410-500
36' (10.97 m) 3 27/58 14'2" (4.32 m) 21' (6.40 m) 30,500 lbs
(13.84 T)
470-580
41' (12.50 m) 3 31/66 16'6" (5.03 m) 21' (6.40 m) 32,800 lbs
(14.88 t)
500+
41' (12.50 m) 5 Bi-Fold 31/66 13'6" (4.12 m) 18'9" (5.72 m) 37,250 lbs
(16.90 t)
500+
50' (15.24 m) 5 Bi-fold 39/80 14'3" (4.34 m) 19' (5.79 m) 47,650 lbs
(21.61 T)
500+
*Horsepower requirements vary by speed and operating depth.
